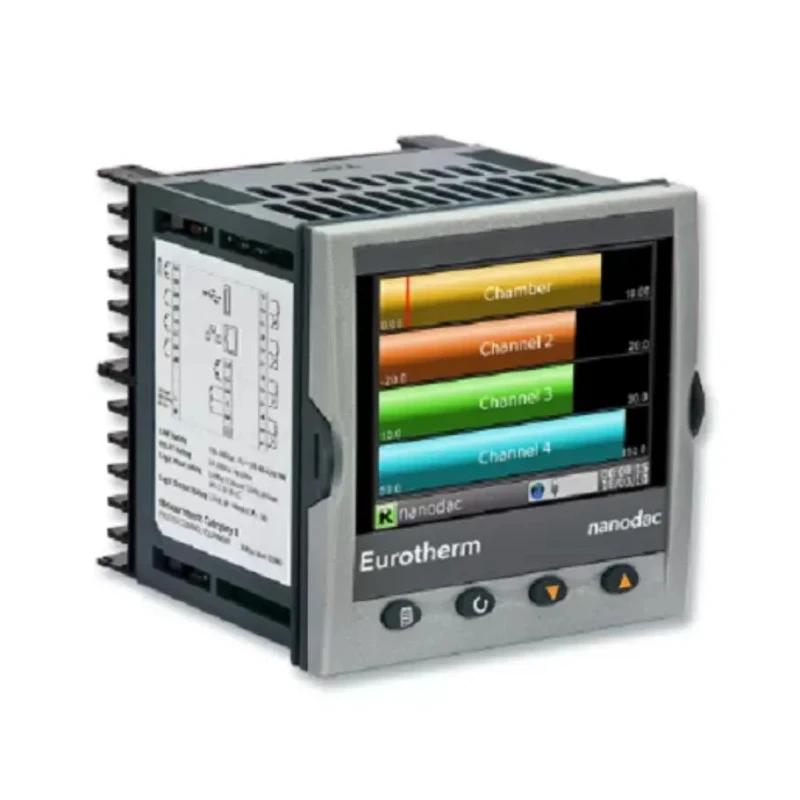

Eurotherm 3-Channel Graphical Graphic Recorder Voltage Resistance Millivolt Current Temperature NANODAC/VH/C/X/RDD

Eurotherm NANODAC/VH/C/X/RDD is a 3-channel graphical graphic recorder designed for industrial and laboratory applications requiring precise measurement and control of voltage, resistance, millivolt, current, and temperature. This recorder combines data acquisition with PID control, utilizing the advanced Eurotherm PID algorithm to deliver high performance and reliability in monitoring and controlling various processes.

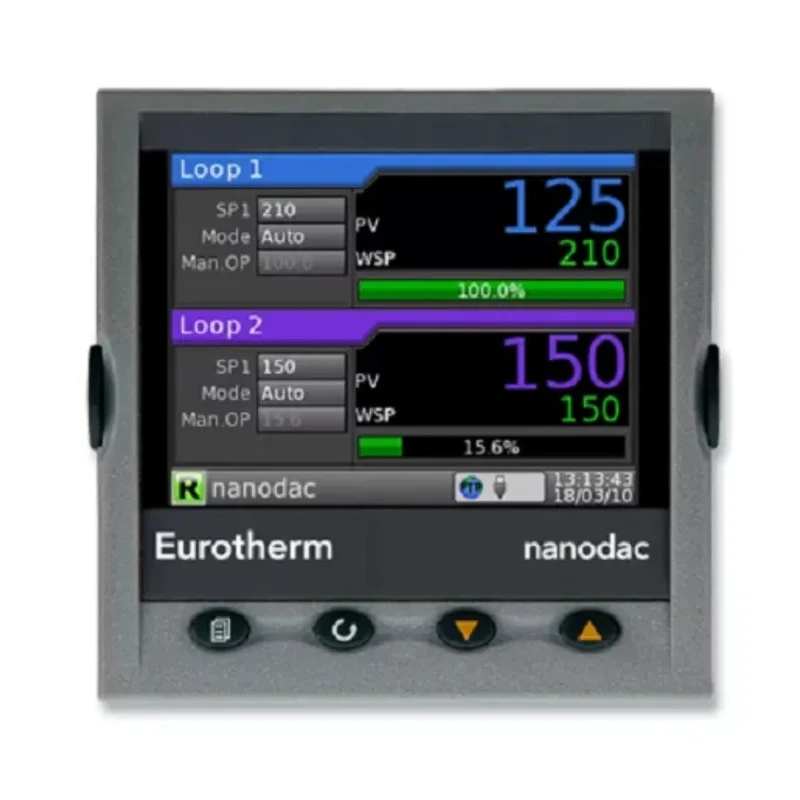

The instrument features a 3.5-inch colour TFT display with 320x240 pixels resolution, providing clear and configurable views such as horizontal and vertical trends, bar graphs, numeric displays, alarm panels, and control loops visualization. The compact device measures 96 mm in height, 90 mm in width, and 96 mm in length, with a light weight of 440 g, facilitating integration into various industrial setups.

This recorder supports two control loops along with one relay and two analogue outputs conforming to ISO DC standards. Its universal high accuracy inputs ensure measurement precision down to a 0.05 °C resolution, critical for temperature-sensitive processes. Data integrity is assured through a tamper-resistant recording methodology trusted by auditors, complemented by a USB removable data storage facility enhancing data accessibility and portability.

Multi-language support and user-friendly navigation with four push buttons provide operational flexibility. The device meets international standards such as UL, EU compliance, BS EN 61326, and CE certification, ensuring safety and performance reliability.

Operating voltage ranges between 100 to 230 V AC with ±15% tolerance and frequency from 48 to 62 Hz, making it suitable for diverse power environments. Applications include industrial manufacturing, process monitoring, HVAC systems, laboratory data logging, and other sectors requiring precise multi-channel measurement and graphical data presentation.

This graphical recorder's robust features and compact design make it a valuable tool for process control and data acquisition in industrial and laboratory domains. The device features a 3.5-inch TFT display offering clear visualization of process parameters.

Equipped with advanced Eurotherm PID algorithm for reliable process control. Supports 2 control loops, 1 relay, and 2 analogue ISO DC outputs. Tamper-resistant data recording trusted by auditors for data integrity. Offers USB removable data storage and multi-language interface.

High accuracy universal inputs with 0.05 °C resolution. Compact design with dimensions 96 mm height, 90 mm width, and 96 mm length. Complies with UL, EU, BS EN 61326, and CE standards. Operates on 100-230 V AC ±15% at 48-62 Hz frequency.
