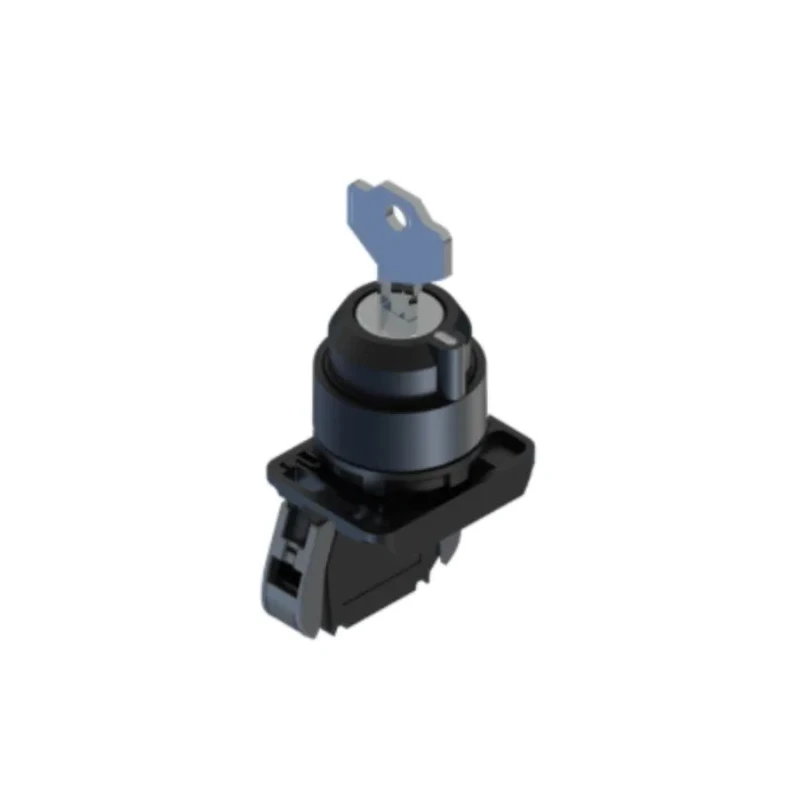

RS PRO Key Selector Switch 1 NO Contact 22.5 mm Cutout Diameter 3 Positions 238-3963

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Key Selector Switch 1 NO Contact 22.5 mm Cutout Diameter 3 Positions 238-3963

Name: RS PRO Key Selector Switch 1 NO Contact 22.5 mm Cutout Diameter 3 Positions 238-3963
Brand: RS PRO
SKU: 309279
Price: 3530.76 INR
Availability: InStock



Category Selector Switch Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Outer Diameter	30 mm
Model	238-3963
IP Rating	IP65, IP20
Series	RS PRO
Contact Configuration	1 NO
Actuator Type	Key
Number of Positions	3
Operating temperatures	-25 °C to +70 ° C
Switch Position	2 or 3
Terminal type	Screw
Standards/Approvals	UKCA, CE, UL, EN
Switch Operation	2-Position
Cutout Diameter	22.5mm
Stock Temperatures	-40 °C to +80 ° C
Switch Actuation	2 or 3
Mechanical durability (Millions of operations)	0.3
B10d (Millions of operations)	0.6
Connecting Terminals	Screw with captive cable clamp
3 Position, Maintained, Left and Right Key Extraction, 1NO - RS stock no	238-3963
2 Position, Maintained, Left and Right Key Extraction, 1NO+ 1NC - RS stock no	238-3964

Key Features

Features a robust thermoplastic body ensuring durability and long service life.
Operated via a black short lever for easy and precise switching.
Designed for front panel mounting with a 22.5 mm cut-out and 30 mm outer diameter.
Provides IP65 and IP20 ratings for protection against dust and moisture.
Includes screw-type terminals with captive cable clamps for secure electrical connections.
Suitable for harsh industrial environments with operating temperatures ranging from -25 °C to +70 °C.
Mechanical durability rated at 0.3 million operations and electrical B10d rated at 0.6 million operations.
Approved to UKCA, CE, UL, and EN standards ensuring compliance and quality assurance.

Product Description

RS PRO 238-3963 Key Selector Switch is a high-quality selector switch featuring a 1 Normally Open (NO) contact configuration with 3 selectable positions. Designed with a thermoplastic body and a black short lever actuator, this selector switch is built for robust front panel mounting applications with a 22.5 mm cutout diameter and a 30 mm outer diameter.

This switch provides IP65 and IP20 ingress protection ratings, making it suitable for use in industrial, automotive, building, and public works environments. It ensures reliable switching performance in harsh conditions with an operating temperature range between -25 °C and +70 °C and stock temperature tolerance from -40 °C to +80 °C.

Equipped with screw terminals featuring captive cable clamps, the selector switch enables secure and stable electrical connections. Mechanical durability is rated at 0.3 million operations, with an electrical B10d rating of 0.6 million operations, guaranteeing long-lasting reliability under frequent use.

This key-operated selector switch adheres to recognized standards including UKCA, CE, UL, and EN, reflecting compliance and quality. It is ideal for applications in industrial controls, automation systems, lighting controls, medical devices, and commercial kitchen equipment.

The product is manufactured in Italy, offering dependable quality and engineering. The selector switch includes a support base for secure panel mounting up to 6 mm thickness, preventing movement in the mounting hole.

Robust thermoplastic body and black short lever actuator for durable operation. IP65 and IP20 ratings ensure protection against dust and moisture. Panel mounting via 22.5 mm cutout with 30 mm outer diameter. Screw terminal connections with captive cable clamps.

Mechanical and electrical durability suited for industrial applications. Operational temperature range supports various environmental conditions. Compliance with UKCA, CE, UL, and EN standards. Manufactured in Italy for assured quality and performance.

Support base secures mounting into panels up to 6 mm thick. Versatile application for automation, industrial controls, and medical equipment. Explore the extensive range of RS PRO Selector Switches at EnvMart to find components that meet rigorous industrial and commercial requirements.
