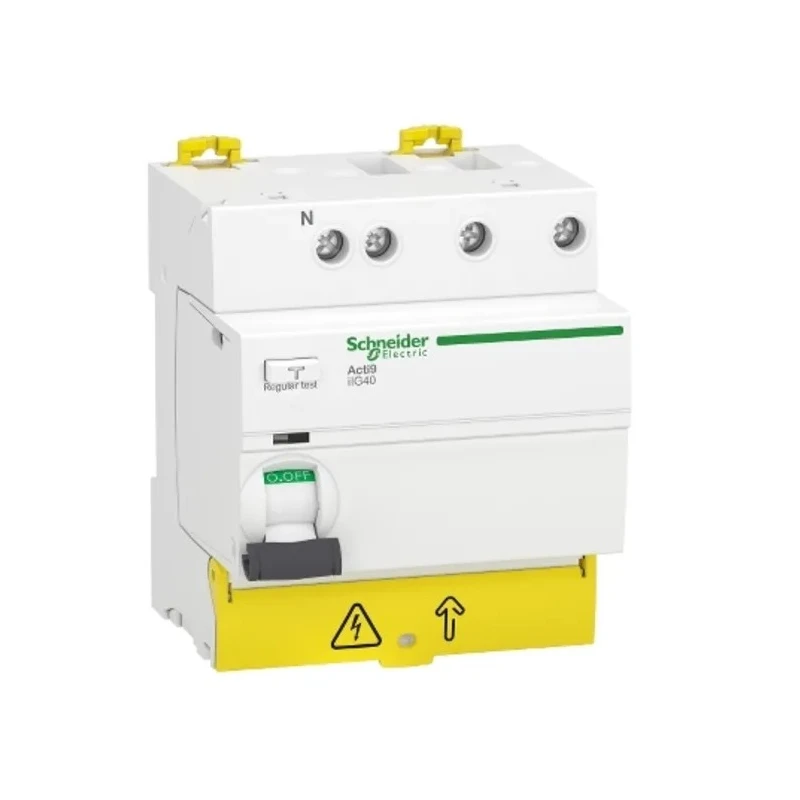

Schneider Electric Residual Current Circuit Breaker 63A 3+N-Pole 300mA Type AC 500A 230V Acti9 iIG40 Series A9R97763

Schneider Electric A9R97763 Residual Current Circuit Breaker from the Acti9 iIG40 Series offers earth-leakage protection for electrical circuits with a rated current of 63A, providing security against electrical faults in both residential and industrial settings. This device is designed to operate at a rated AC voltage of 230V and offers a breaking capacity of 500A, ensuring robust protection.

The breaker features a type AC tripping characteristic with a trip sensitivity of 300 mA and an instantaneous break time which enhances safety by minimizing fault duration. It mounts easily on DIN rails and includes a screw terminal type for secure electrical connections.

Its compact form factor with dimensions 85mm (height), 74mm (depth), and 36mm (width) ensures efficient use of panel space while maintaining easy operability through its toggle switch actuator which provides an ON/OFF switch and trip indicator for precise status monitoring.

Designed according to EN/IEC 61008-2-1 standards, this Schneider Electric RCCB guarantees compliance and reliability. The device supports a relative humidity of 95% at 55°C and operates in ambient air temperatures ranging from -25 to 70°C. Its electrical durability is rated at 20,000 cycles, providing longevity in demanding environments.

The padlockable feature allows for additional safety during maintenance. Certified as a Schneider Green premium class product, it supports sustainability initiatives. Complies with EN/IEC 61008-2-1 for safety and performance.

Instantaneous break time reduces risk during earth leakage faults. Compact design and DIN rail mounting for easy integration. Toggle switch actuator facilitates easy operation and status indication. Padlockable mechanism for enhanced safety measures.

Robust electrical durability with 20,000 operation cycles. Certified Schneider Green premium product supporting green initiatives.

This product is ideal for use in residential, commercial, and industrial electrical distribution systems requiring reliable earth-leakage protection to prevent electric shocks and fire hazards. Its high-rated current and breaking capacities make it suitable for broad applications including HVAC, manufacturing, and water treatment environments.

Explore the full range of electrical protection devices and circuit breakers on EnvMart to find compatible components and solutions tailored to your electrical safety requirements.
