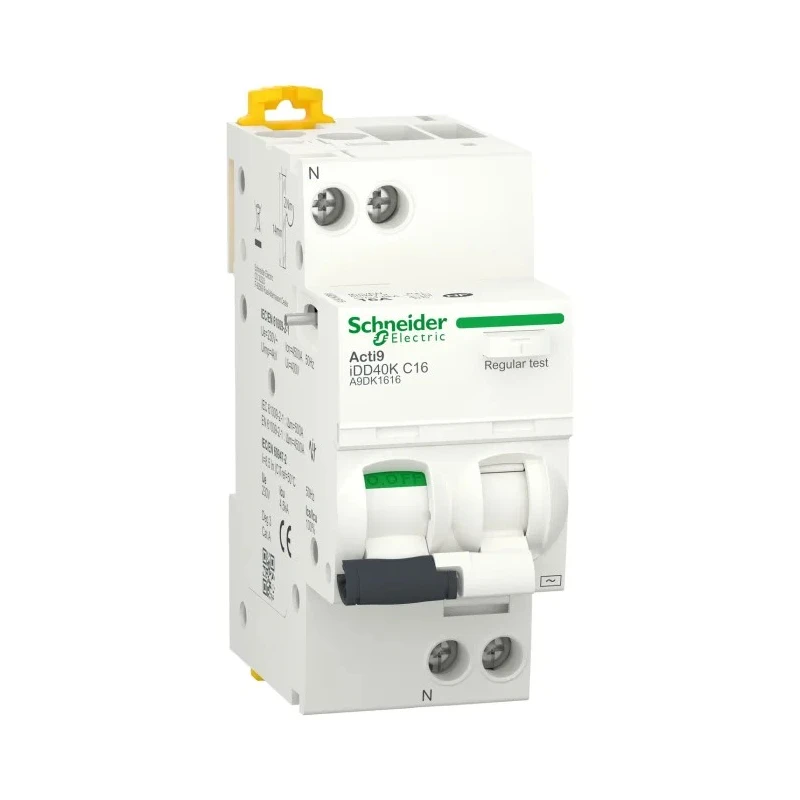

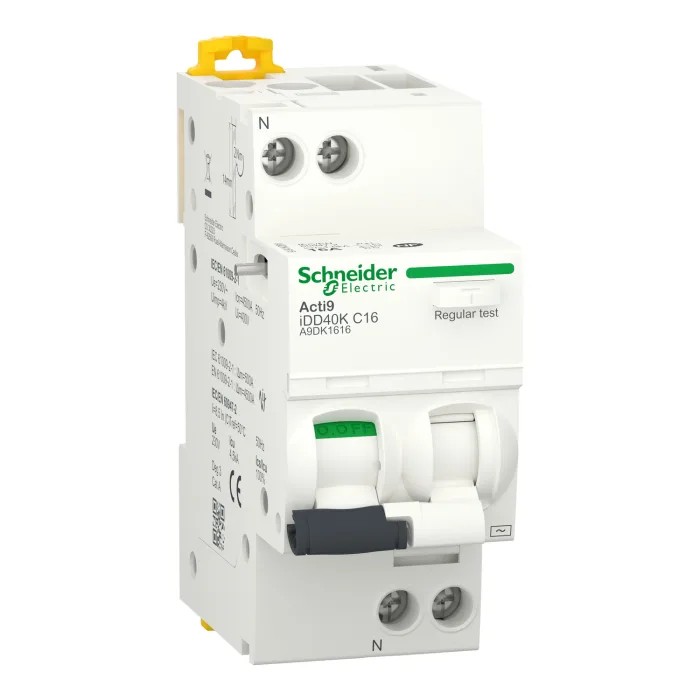

Schneider Electric Residual Current Circuit Breaker with Overload Protection 230V AC, 16A, 1-Pole, 30mA Trip A9DK1616

Schneider Electric A9DK1616 is a high-performance Residual Current Circuit Breaker with Overload Protection (RCBO) designed for efficient and safe power distribution in electrical installations. It features a current rating of 16A and is intended for single-phase systems operating at 230V AC, providing reliable protection against both overload and earth leakage faults.

This circuit breaker belongs to the Acti9 range, distinguished by robust Type C tripping characteristics and a thermal-magnetic trip mechanism that ensures precise response under varying current conditions. Its 4.5kA breaking capacity guarantees effective interruption of fault currents, enhancing overall system safety.

The device is engineered for convenient clip-on mounting on standard DIN rails, simplifying integration into existing distribution boards and panels. Its compact dimensions (85x85x73mm) allow for flexible installation in space-constrained environments.

Designed with instant earth leakage sensitivity (30mA trip), it provides critical protection against leakage currents, minimizing risk of electric shock. The toggle switch reset actuator facilitates user-friendly control and quick resetting of tripped circuits.

Conformance to EN/IEC 60947-2 and RoHS certifications ensures high quality and environmental compliance standards are met. Manufactured in Spain, this RCBO is ideal for residential and commercial electrical systems, and can be integrated into automation systems to enhance circuit protection and safety mechanisms.

Applications include overcurrent protection in distribution panels, earth leakage detection, and use in automation safety circuits. Its reliable performance makes it suitable for a wide range of electrical installations requiring dynamic load management and fault protection.

Equipped with Type C thermal-magnetic trip characteristics ensuring effective protection against overloads. Designed for 230V AC rated voltage systems with instantaneous earth leakage sensitivity. Single-pole clip-on mount enables quick and easy installation on standard DIN rails.

Robust breaking capacity of 4.5kA supports fault management in various electrical environments. Compact dimensions of 85mm height, 85mm width, and 73mm depth offer space-saving fitment. Toggle switch reset actuator for straightforward manual reset operations.

Complies with EN/IEC 60947-2 standards and RoHS directives for quality and safety. Suitable for residential, commercial, and automation system applications needing earth-leakage and overcurrent protection. Explore more Schneider Electric electrical safety products and circuit breakers on EnvMart to find reliable and quality solutions for your projects.
