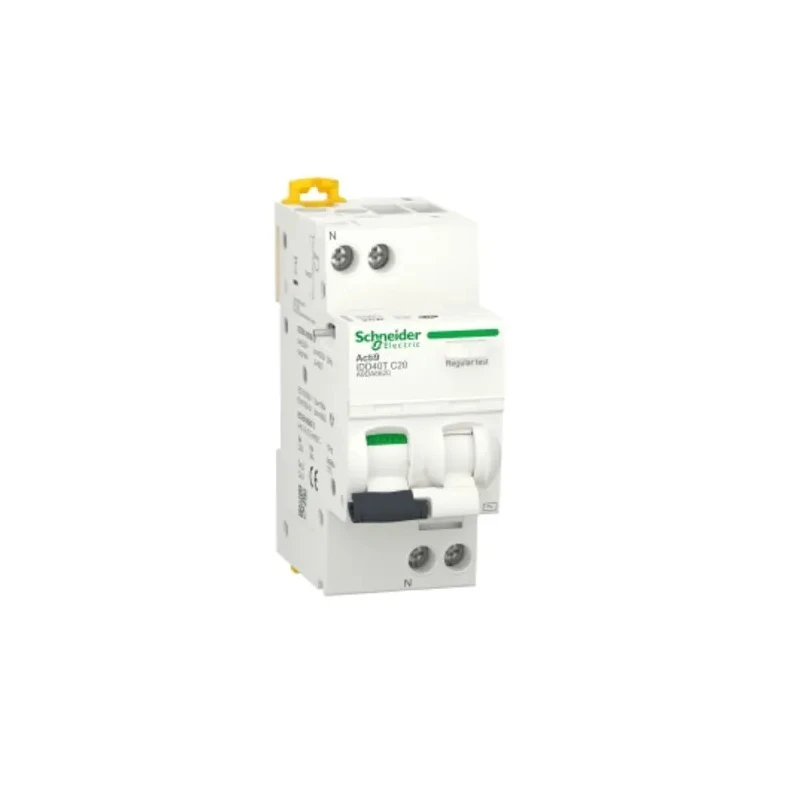

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A 1-Pole 300mA Trip A9DA6620
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DA6620 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | Acti9 iDD40T |
| Terminal type | Tunnel |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 60947-2, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- The breaker features a 1-pole design with a 300 mA earth leakage trip sensitivity.
- It has a Type C tripping characteristic suitable for general applications.
- Mounts easily on DIN rails with a tunnel terminal type.
- Rated for 230V AC operation and has a breaking capacity of 6 kA.
- Equipped with a toggle switch reset actuator and thermal magnetic tripping mechanism.
- Compact dimensions of 85mm height, 73mm depth, and 36mm width enable flexible installation.
- Designed for use in distribution, overcurrent protection, and residential applications.
- Complies with EN/IEC 60947-2 and RoHS standards, ensuring international safety and environmental compliance.
Product Description
Schneider Electric A9DA6620 Residual Current Circuit Breaker with overload protection is engineered for robust performance in electrical distribution systems, offering 20A current rating and 1-pole configuration with 300 mA trip sensitivity. It integrates thermal-magnetic trip unit technology to provide instantaneous earth-leakage protection with time delay, ensuring effective guarding against short circuits and overload currents.
This circuit breaker uses a toggle switch reset actuator and features a Type C tripping characteristic suitable for a variety of residential and commercial applications including distribution and overcurrent protection.
The device mounts onto DIN rails and incorporates tunnel terminal types for secure wiring connections. Its compact dimensions (85mm height, 73mm depth, 36mm width) allow flexible integration in panels where space is limited.
Designed in accordance with EN/IEC 60947-2 and RoHS standards, it guarantees compliance with international safety and environmental regulations. The breaker can withstand impulse voltages up to 4 kV and offers electrical durability up to 20,000 operational cycles, ensuring long-lasting reliability.
Suited for use in industrial, residential, and commercial environments, the Schneider Electric A9DA6620 is part of the Acti9 iDD40T series, offering premium quality and Schneider Green classification for energy-efficient solutions.
The breaker has a 20A current rating for effective circuit protection. Features a 300 mA earth leakage sensitivity for enhanced safety. Thermal magnetic tripping mechanism ensures precise overload response. Toggle switch reset actuator allows easy manual operation.
Mounts on DIN rail with tunnel terminal for secure installation. Compact design with dimensions 85mm x 73mm x 36mm for space-saving use. Breaking capacity of 6 kA supports industrial and residential applications. Compliance with EN/IEC 60947-2 and RoHS standards ensures quality and safety.
Impulse withstand voltage up to 4 kV and electrical durability of 20,000 cycles. Manufactured in Spain ensuring premium build quality. Explore EnvMart’s range of Schneider Electric circuit breakers and electrical protection devices for your industrial and residential needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A, making it suitable for various electrical distribution applications.
It features a trip sensitivity of 300 mA for earth leakage protection, enhancing safety in electrical systems.
The dimensions of this unit are 85mm in height, 73mm in depth, and 36mm in width, allowing for flexible installation in compact spaces.
It employs a thermal magnetic tripping mechanism, which provides effective overload protection and instantaneous response to short circuits.
The A9DA6620 mounts easily on DIN rails and utilizes a tunnel terminal type for secure wiring connections.
This circuit breaker has a breaking capacity of 6 kA, suitable for both residential and industrial applications.
It complies with EN/IEC 60947-2 and RoHS standards, ensuring it meets international safety and environmental regulations.
The rated AC voltage for the A9DA6620 is 230V, making it compatible with standard electrical systems.
It is designed for use in distribution, overcurrent protection, and residential applications, making it versatile for various settings.
The A9DA6620 can withstand impulse voltages up to 4 kV, providing additional protection in electrical systems.
This model features a 1-pole design, suitable for single-phase applications.
It is equipped with a toggle switch reset actuator, allowing for easy manual operation after a trip event.
