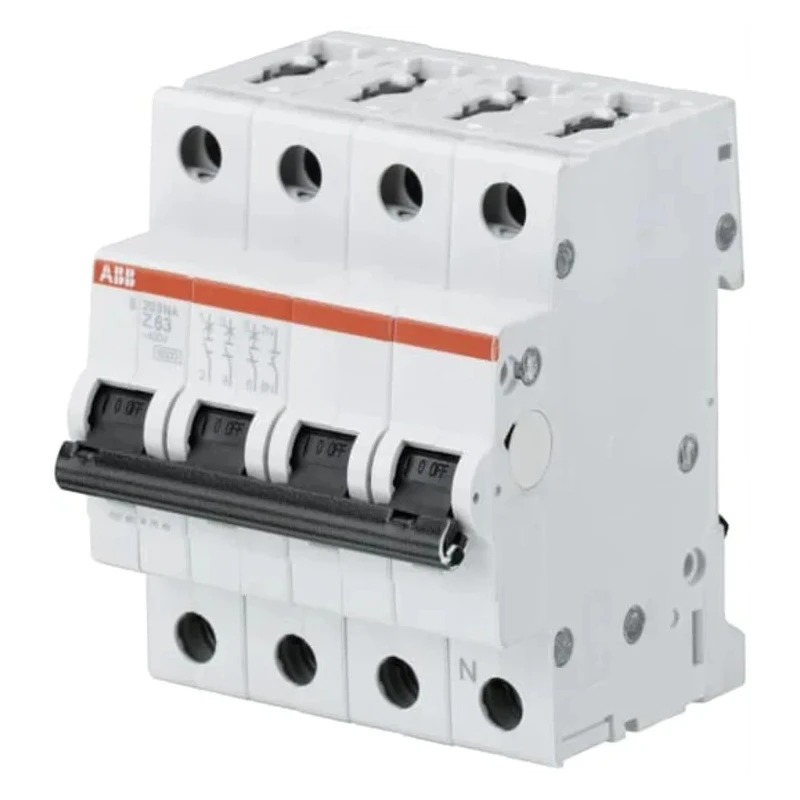

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3+N-Pole, 1.6A, Type Z, 400V AC, 110V DC, 6 kA 2CDS253103R0258

ABB 2CDS253103R0258 System Pro M Compact S200 Miniature Circuit Breaker is a high-quality electrical protective device designed to safeguard industrial, commercial, and residential electrical circuits.

This miniature circuit breaker features a 3+N pole configuration allowing it to protect circuits with neutral connections efficiently. It carries a nominal current rating of 1.6 amperes and exhibits Type Z tripping characteristics suited for sensitive equipment protection by offering selective overload and short circuit protection.

Rated for both AC and DC voltages at 400V and 110V respectively, this breaker is adaptable for a variety of electrical applications, including industrial automation, HVAC systems, manufacturing plants, and electrical distribution panels.

The device boasts a high breaking capacity of 6kA, ensuring rapid interruption during fault conditions to minimize damage and downtime. Installation is facilitated by DIN rail mount compatibility and secure screw terminals, optimizing convenience and reliability in electrical installations.

Compact in size with dimensions of 70mm width, 69mm depth, and 88mm height, it fits well in constrained electrical enclosures. Its thermal and electromechanical tripping mechanisms provide dependable performance against overloads and short circuits.

Protected by an IP20 rating, it is resistant to solid objects larger than 12mm but is intended for use in controlled indoor environments. Compliance with IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards guarantees the highest level of safety and industry acceptance.

Manufactured in Germany, this ABB miniature circuit breaker adheres to rigorous quality standards, ensuring longevity and operational safety in demanding environments. Features a 3+N pole configuration suitable for complex electrical systems.

Rated current of 1.6 amperes with Type Z tripping characteristic for selective protection. Supports an AC voltage rating of 400V and DC voltage rating of 110V for versatile use. Breaking capacity of 6 kiloamperes ensuring high interruption capability during faults.

Mounts securely on DIN rails with screw terminal type for easy installation. Compact dimensions with 70mm width, 69mm depth, and 88mm height for efficient space utilization. Equipped with electromechanic and thermal tripping mechanisms for overload and short circuit protection.

IP20 rating ensures protection against solid foreign objects while suitable for controlled environments. Complies with IEC/EN 60947-2, UL1077, and IEC/EN 60898-1 standards ensuring safety and reliability. Manufactured in Germany emphasizing high quality and durable construction.

Ideal for use in industrial, commercial, and building electrical distribution systems. Explore more ABB Miniature Circuit Breakers and electrical protection devices on EnvMart.
