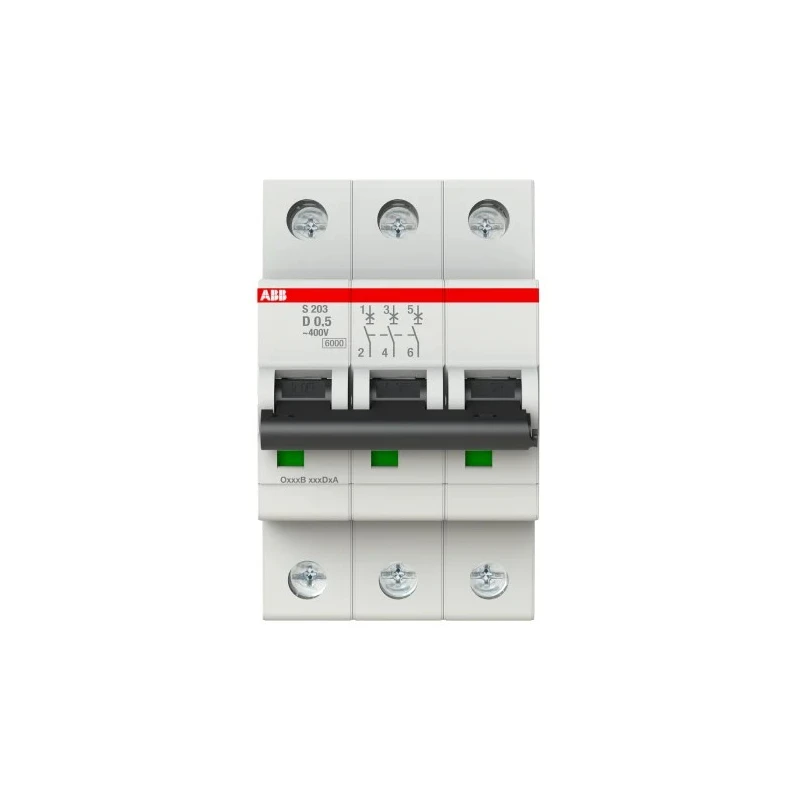

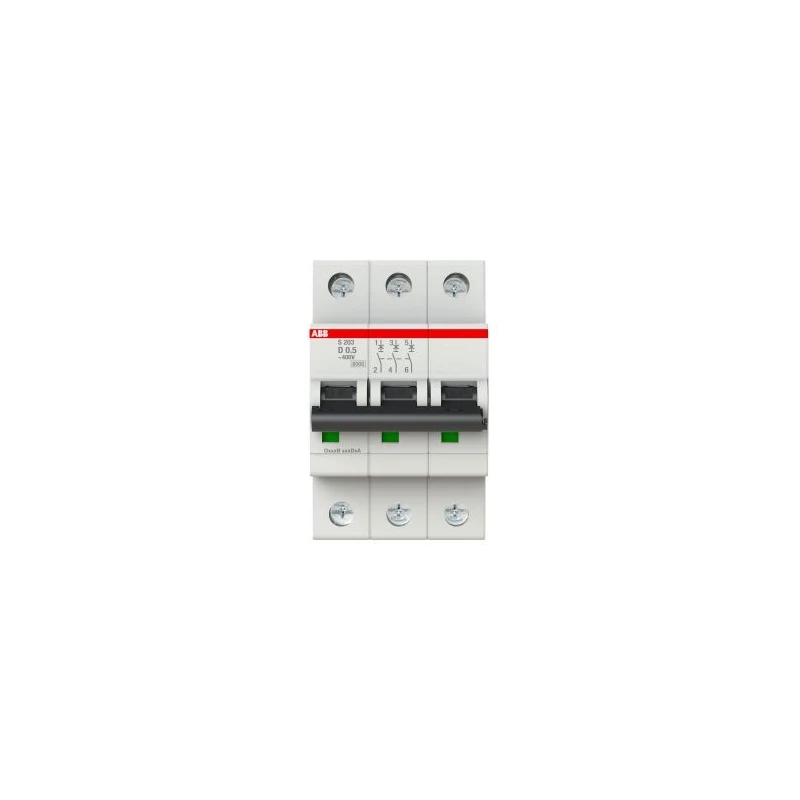

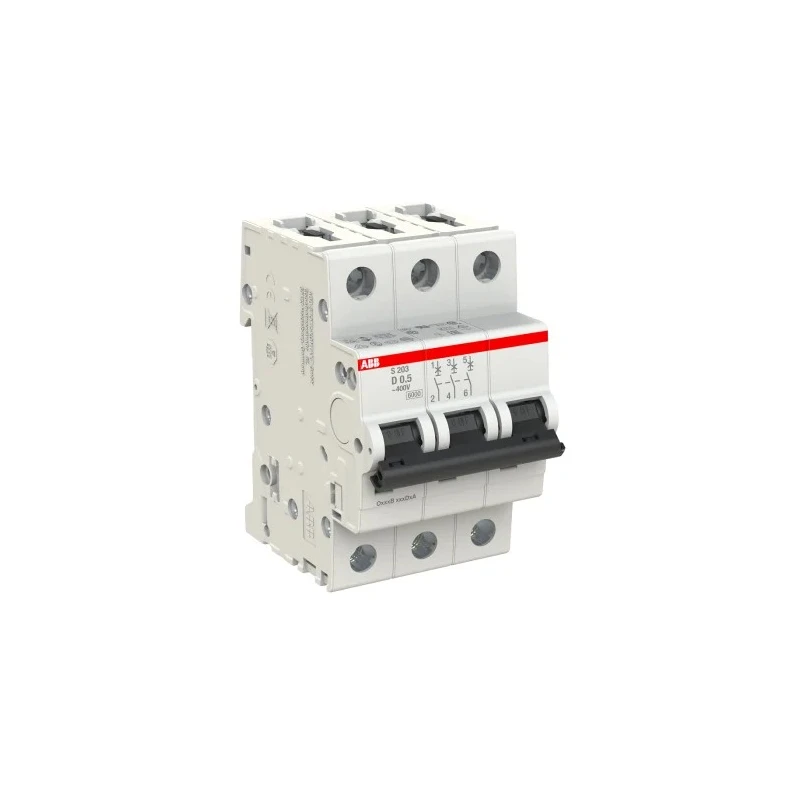

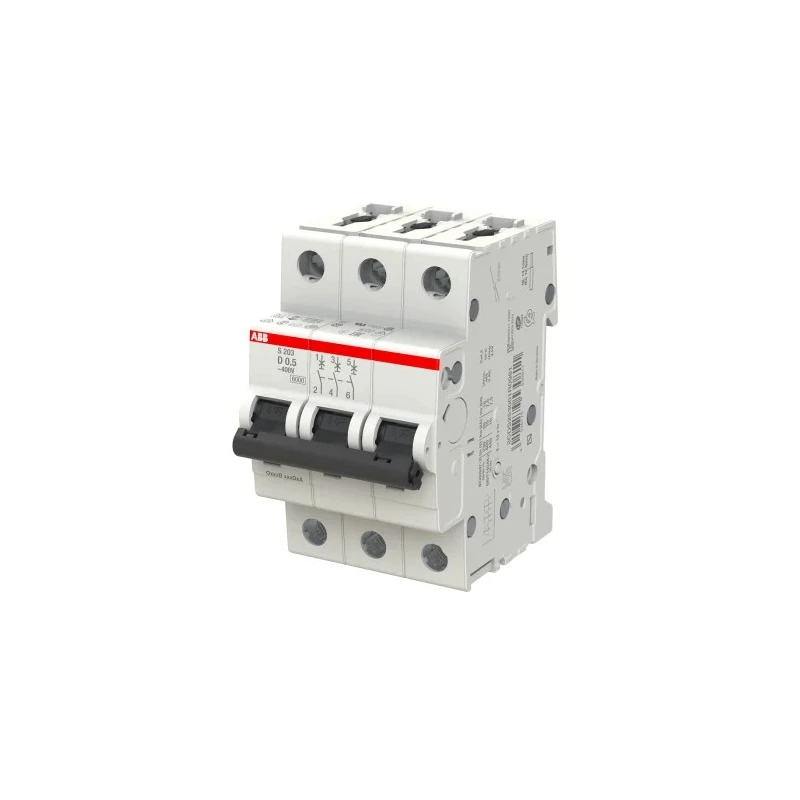

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 500mA, Type D Tripping 2CDS253001R0981 S203 D 0.5A - 10 KA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253001R0981 S203 D 0.5A - 10 KA |
| Depth | 69mm |
| IP Rating | IP20 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 500mA |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1, UL1077 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 12V |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Anaerobic Adhesive, Electromechanic |
Key Features
- Type D tripping characteristic provides protection against high inrush currents.
- Three-pole configuration allows simultaneous disconnection of all phases.
- 6kA breaking capacity ensures effective fault interruption.
- Designed for DIN rail mounting with screw terminals for secure connections.
- Compact 52.5mm width conserves panel space.
- IP20 rated enclosure suitable for protected switchboard environments.
- Complies with IEC/EN 60947-2, IEC/EN 60898-1, and UL1077 standards.
- Electromechanical tripping combined with anaerobic adhesive mechanism.
Product Description
ABB 2CDS253001R0981 S203 D 0.5A - 10 KA System Pro M Compact S200 Miniature Circuit Breaker is a high-performance 3-pole MCB designed for overcurrent protection in industrial and commercial three-phase electrical installations. Rated at 400V AC and 12V DC, it effectively safeguards circuits with a nominal current of 500mA, featuring Type D tripping characteristics ideal for applications with high inrush currents.
This MCB combines electromechanical tripping with an anaerobic adhesive tripping mechanism to ensure reliable fault current interruption while maintaining operational durability. Its 6kA breaking capacity improves fault handling capabilities enhancing system safety. The compact design with a narrow 52.5mm width supports efficient panel space management.
The device installs easily on standard DIN rail systems and utilizes screw terminals to guarantee secure and stable conductor connections. The IP20 rated enclosure offers protection suitable for use within enclosed switchboard environments. The product complies with international standards IEC/EN 60947-2, IEC/EN 60898-1, and UL1077 ensuring quality and safety.
Practical industrial applications include motor starter protection where high inrush current occurs, three-phase distribution systems, automation control panels, and load segregation within electrical distribution boards, making it a versatile solution for electrical system safety and reliability.
Type D tripping characteristic protects against high inrush currents. Three-pole configuration enables simultaneous disconnection across phases. 6kA breaking capacity enhances fault interruption performance. Suitable for DIN rail mounting with screw terminal connections.
IP20 protection rating for use in enclosed switchboards. Complies with IEC/EN and UL standards to ensure safety and reliability. Explore more Miniature Circuit Breakers and electrical protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 500mA.
It features a breaking capacity of 6kA, which enhances its fault interruption performance.
It has Type D tripping characteristics, which provide protection against high inrush currents.
The dimensions are 88mm in height, 52.5mm in width, and 69mm in depth.
Yes, it is designed for DIN rail mounting and utilizes screw terminals for secure connections.
The rated AC voltage is 400V, and the rated DC voltage is 12V.
It complies with IEC/EN 60947-2, IEC/EN 60898-1, and UL1077 standards.
The enclosure has an IP20 rating, suitable for use in protected switchboard environments.
It is suitable for motor starter protection, three-phase distribution systems, and automation control panels.
It combines an electromechanical tripping mechanism with an anaerobic adhesive mechanism.
This model is a three-pole circuit breaker, allowing simultaneous disconnection of all phases.
The country of origin for this miniature circuit breaker is Germany.
