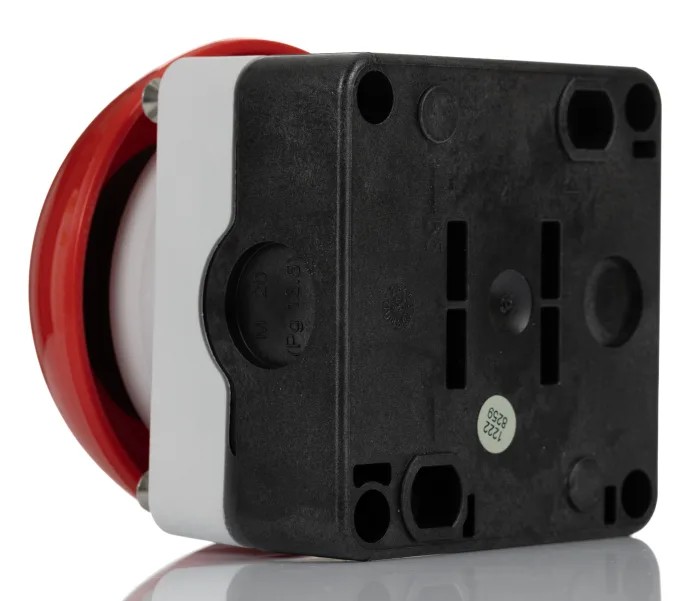

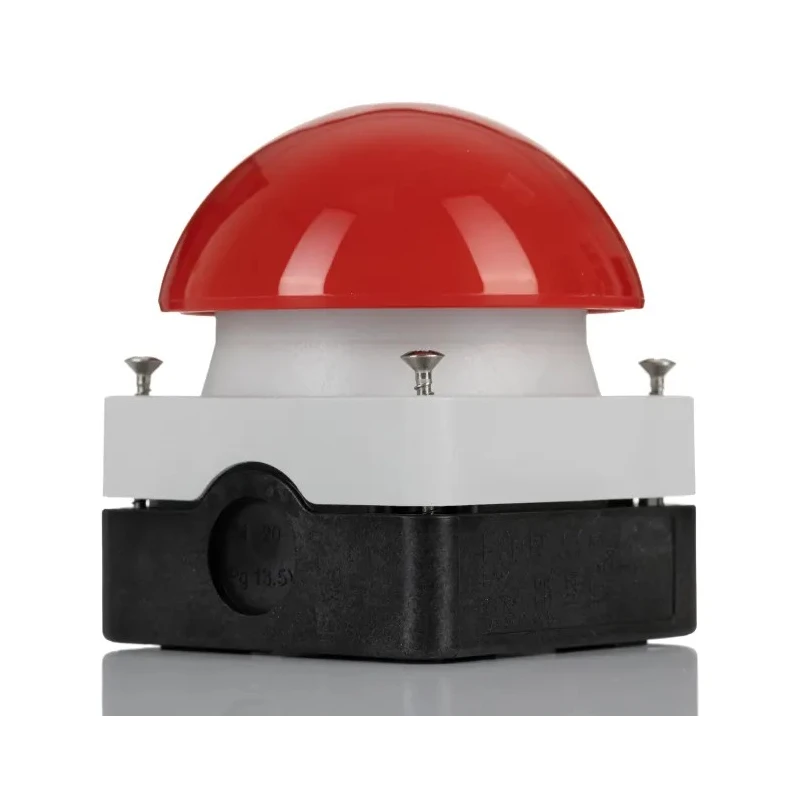

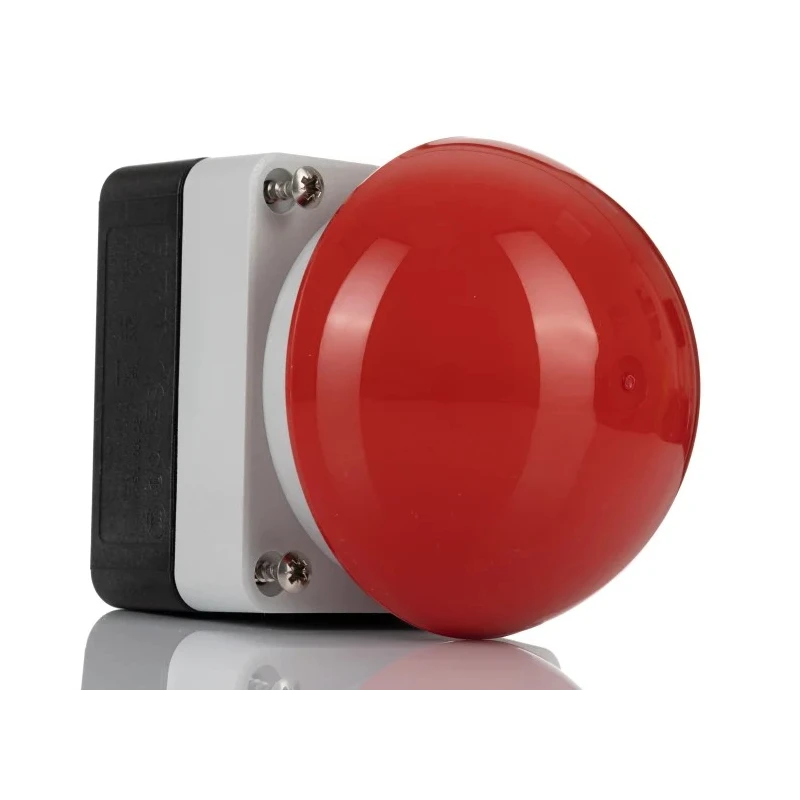

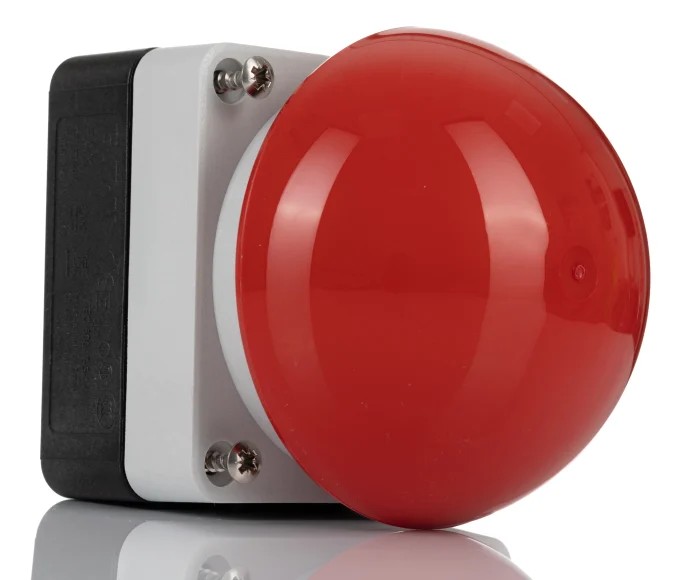

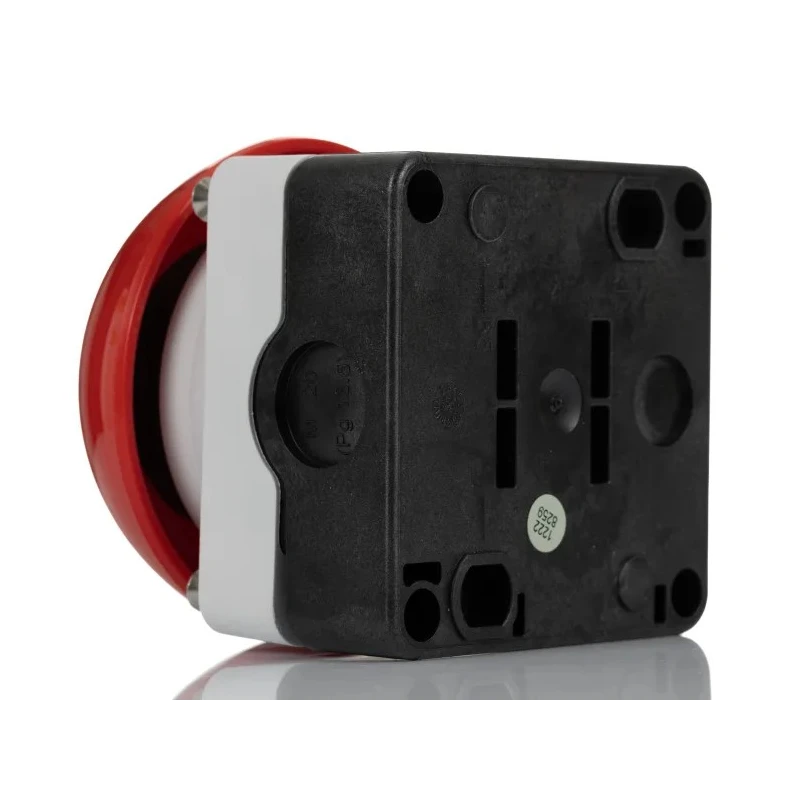

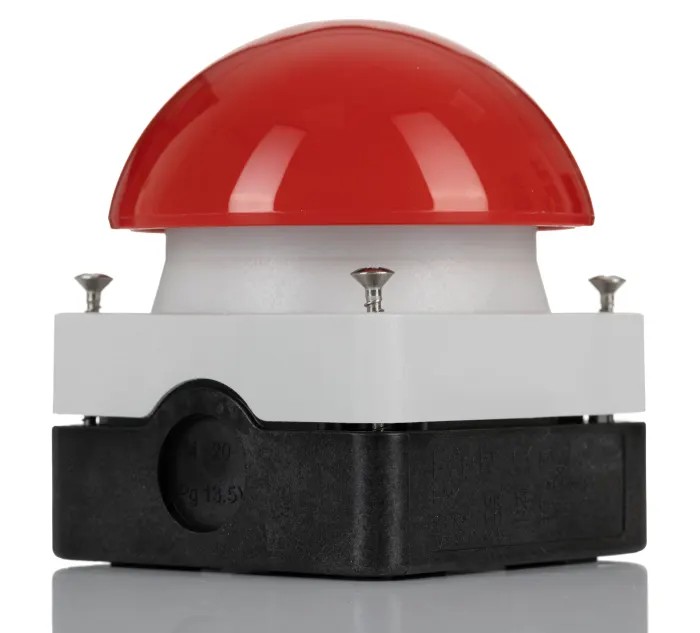

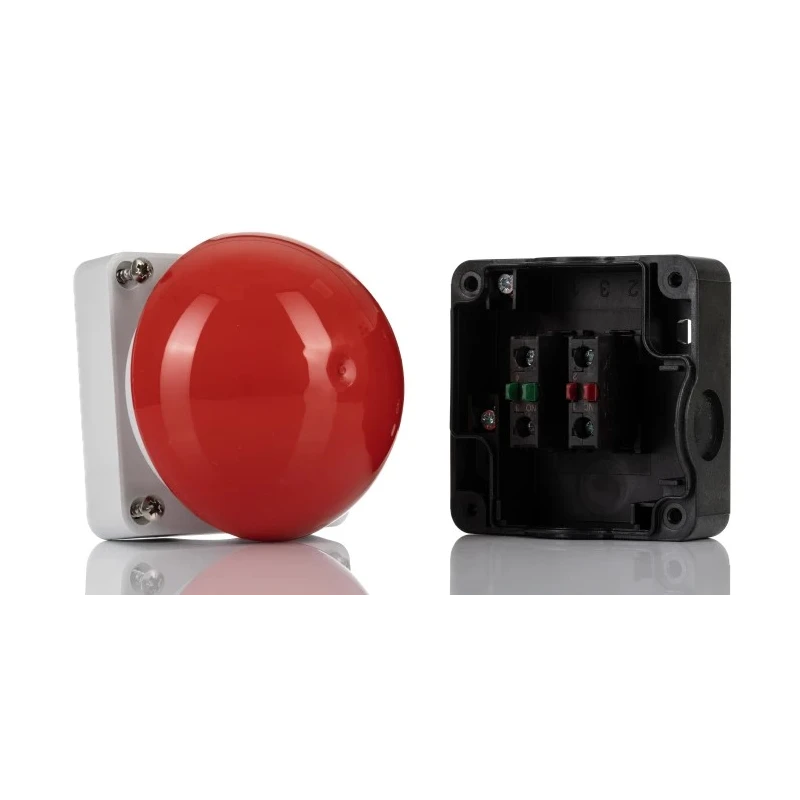

Eaton FAK Series Push Button Switch, Momentary, Spring Return, Panel Mount, SPDT, Red Actuator, IP69K, 6A 229746 FAK-R/KC11/I

Name: Eaton FAK Series Push Button Switch, Momentary, Spring Return, Panel Mount, SPDT, Red Actuator, IP69K, 6A 229746 FAK-R/KC11/I
Brand: Eaton
SKU: 307917
Price: 122.1 USD
Availability: InStock



Category Push Button Switch Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	85mm
Length	85mm
Model	229746 FAK-R/KC11/I
IP Rating	IP69K
Width	100mm
Mount Type	Panel
Series	FAK
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	1 NO/1 NC
Minimum Operating Temperature	-25°C
Terminal type	Screw
Switch Operation	Momentary, Spring Return
Actuator Colour	Red
Actuator Style	Mushroom
Switch Contact Current	6A

Key Features

Features a red mushroom-style actuator for easy and quick operation.
Rated switch contact current of 6A ideal for control circuits.
IP69K rating ensures excellent protection against dust and water ingress.
Operates reliably between -25°C and 55°C temperature range.
Panel mount installation with screw terminal for secure wiring.
Mechanical lifespan up to 1 million operations ensures durability.
Complies with IEC/EN 60947-5-1, UL 508, CSA, and CE standards.

Product Description

Eaton 229746 FAK-R/KC11/I Push Button Switch is a high-performance, momentary push button device featuring a spring return and SPDT configuration designed for robust industrial use. Its red mushroom actuator mounted on a grey and black base provides excellent visibility and ergonomic operation. This panel mount switch offers reliable performance in demanding environments thanks to its durable construction and IP69K ingress protection.

The switch is rated for a contact current of 6A AC, making it ideal for control gear, switchgear, and manufacturing applications. Its operating temperature range of -25°C to +55°C ensures functionality in both cold and warm conditions.

Constructed with a robust plastic body, this Eaton push button switch stands up well against vibration and shock, suitable for mounting onto machine panels. Its mushroom head measuring 94mm in diameter allows easy actuation using the palm, fist, or foot, enhancing operator safety and convenience.

Equipped with screw terminals, installation and wiring are straightforward, and the panel mount type ensures secure fitting. The switch has a mechanical lifespan of up to one million operations, supporting long service life in industrial scenarios including manufacturing, process control, automation, and electrical systems.

The red actuator provides high visibility for emergency and operational use. The IP69K rating protects against ingress of dust and high-pressure water jets, suitable for moist and dusty environments. Meets stringent safety and quality certifications such as IEC/EN 60947-5-1, UL 508, CSA standards, and CE marking, ensuring compliance with international industrial requirements.

Dimensions of 85mm (H) x 85mm (L) x 100mm (W) provide a compact yet substantial control interface.

This Eaton FAK Series Push Button Switch is an excellent choice for industrial, manufacturing, automation, and electrical panel control applications where reliability, durability, and safety are critical. Explore more Eaton Push Button Switches and related control components in the EnvMart catalog to suit your specific control needs.
