Nuvotem Talema Toroidal Transformer 230 V AC Primary, 2 x 9 V AC Secondary, 2 Output, 15 VA 0015P1-2-009

Free Delivery in India | Lowest Global Shipping Charges

Nuvotem Talema Toroidal Transformer 230 V AC Primary, 2 x 9 V AC Secondary, 2 Output, 15 VA 0015P1-2-009

Name: Nuvotem Talema Toroidal Transformer 230 V AC Primary, 2 x 9 V AC Secondary, 2 Output, 15 VA 0015P1-2-009
Brand: Nuvotem Talema
SKU: 307822
Price: 66.5 USD
Availability: InStock



Category Transformer Brand Nuvotem Talema Condition New

Specifications

Country of Origin	India
Diameter	60mm
Brand	Nuvotem Talema
Height	31mm
Model	0015P1-2-009
Gross Weight	300g
Termination Type	Copper Conductor Termination Wire
Maximum Operating Temperature	120°C
Minimum Operating Temperature	0°C
Secondary current	830mA
Number of outputs	2
Standards/Approvals	EN 60065, UL 506, UL 5085, EN 61558
Primary Voltage	230 V ac
Secondary Voltage	2 x 9 V ac
Maximum Operating Frequency	450Hz
Nuvotem Talema 230V ac, 2 x 9V ac Toroidal Transformer, 15VA 2 OutputBrand	Nuvotem Talema

Key Features

Features a compact open style design with leads for easy installation.

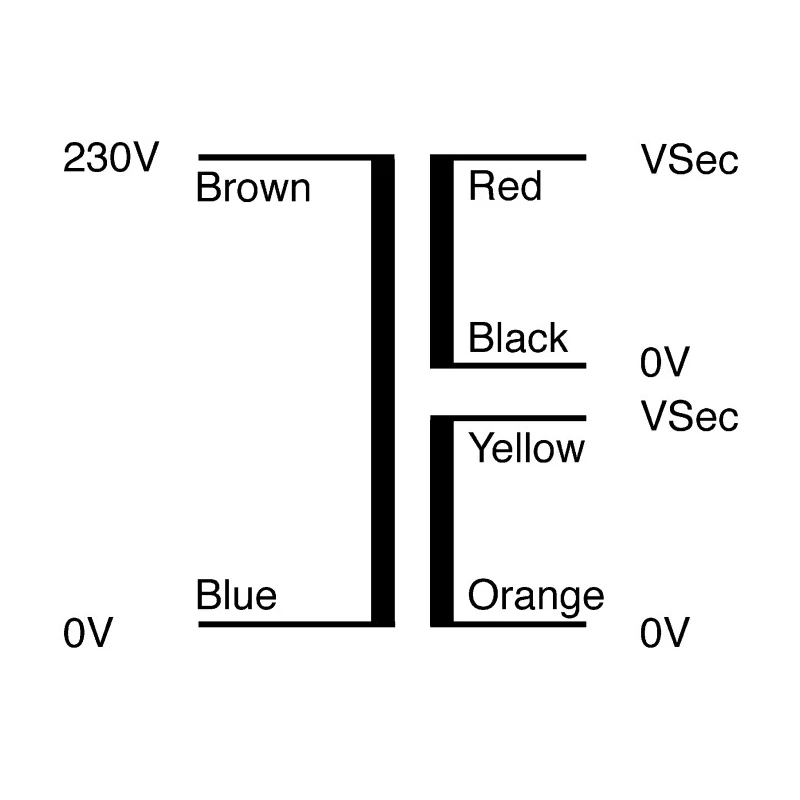

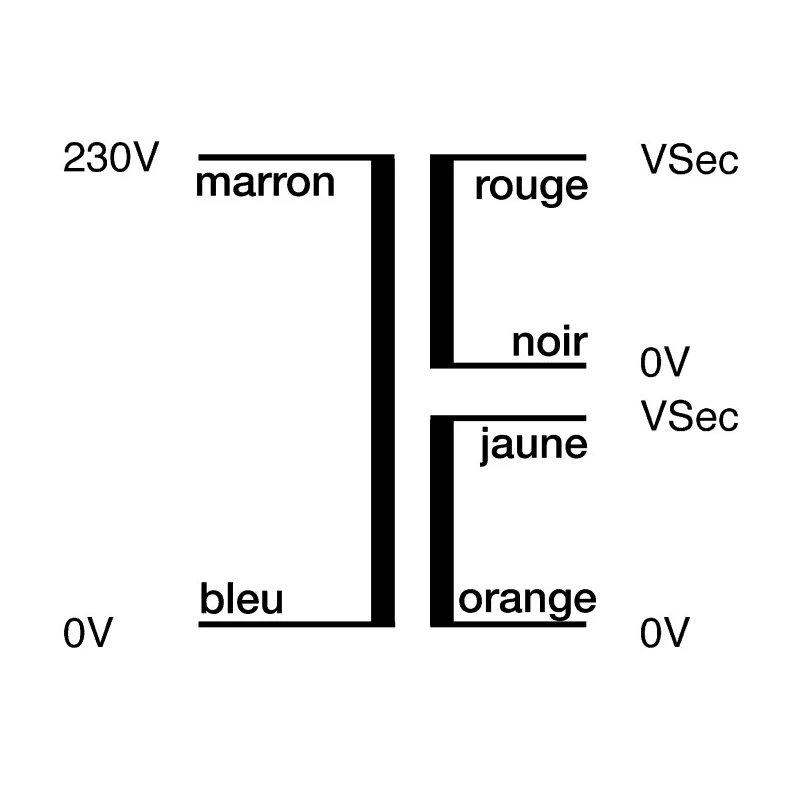

Two secondary windings can be connected in series or parallel or used independently.
High efficiency with very low iron losses and low radiated magnetic field.
Double insulated primary leads ensure safety and durability.
Manufactured and electrically tested to EN 60065, UL 506, UL 5085, and EN 61558 standards.
Operating temperature range from 0°C to 120°C.

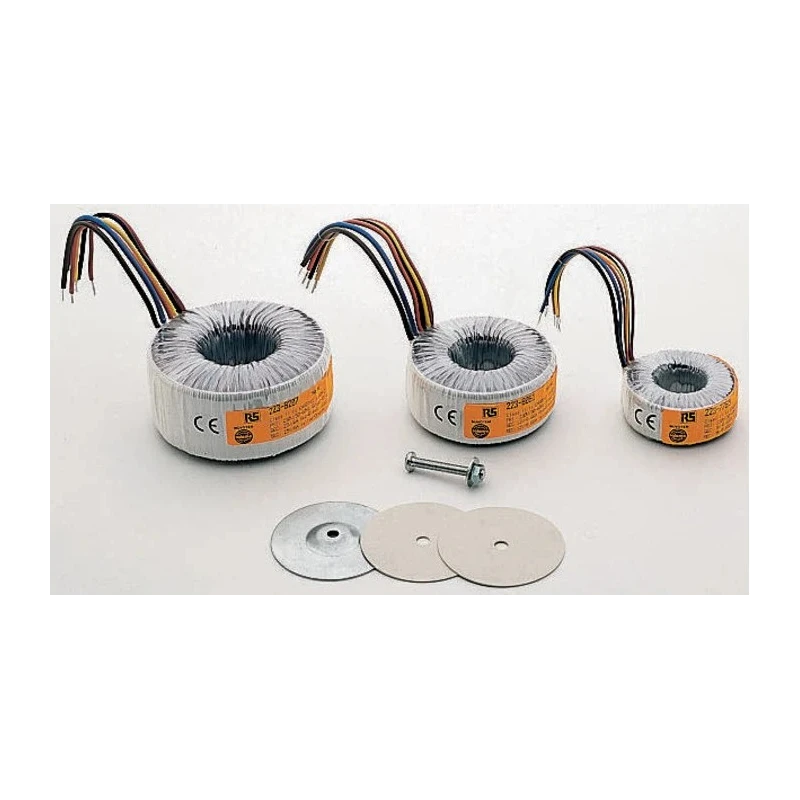

Supplied with a full mounting kit for ease of fitting.
Diameter 60 mm and height 31 mm, weighing approximately 300 grams.

Product Description

Nuvotem Talema 0015P1-2-009 Toroidal Transformer is a high-quality open style transformer featuring a 230 V AC primary winding and dual 9 V AC secondary windings delivering 15 VA power. This toroidal transformer is engineered to provide extremely low radiated magnetic fields and minimal noise (hum), making it ideal for sensitive electronic circuits and power supply designs.

Its compact size with a 60 mm diameter and 31 mm height reduces weight and installation footprint compared with traditional stacked laminations. The twin secondary windings can be connected in series, parallel, or used separately, offering flexibility in multiple application scenarios.

The transformer is constructed with copper conductor termination wires and double insulated primary leads, ensuring both safety and robust performance during extended operation. It is fully compliant with rigorous international safety standards including EN 60065, UL 506, UL 5085, and EN 61558, assuring reliable industrial, commercial, and residential electrical use.

The operating temperature range from 0°C to 120°C and a maximum frequency of 450 Hz enables this transformer to withstand demanding conditions. It is supplied complete with a mounting kit for secure and convenient installation.

Applications encompass power supplies, electronic equipment, control systems, and other power conditioning tasks requiring efficient voltage transformation with low electromagnetic interference.

Compact open style design with leads. Dual secondary outputs for versatile use. Low iron losses and minimized noise emissions. Double insulated primary wiring for safety. Compliance with EN 60065, UL 506, UL 5085, and EN 61558.

Wide operating temperature range of 0°C to 120°C. Full mounting kit included for ease of use. Lightweight at approximately 300 grams with small form factor. Explore more Transformers within the Electronics & Electricals category at EnvMart for all your industrial and electronic design needs.
