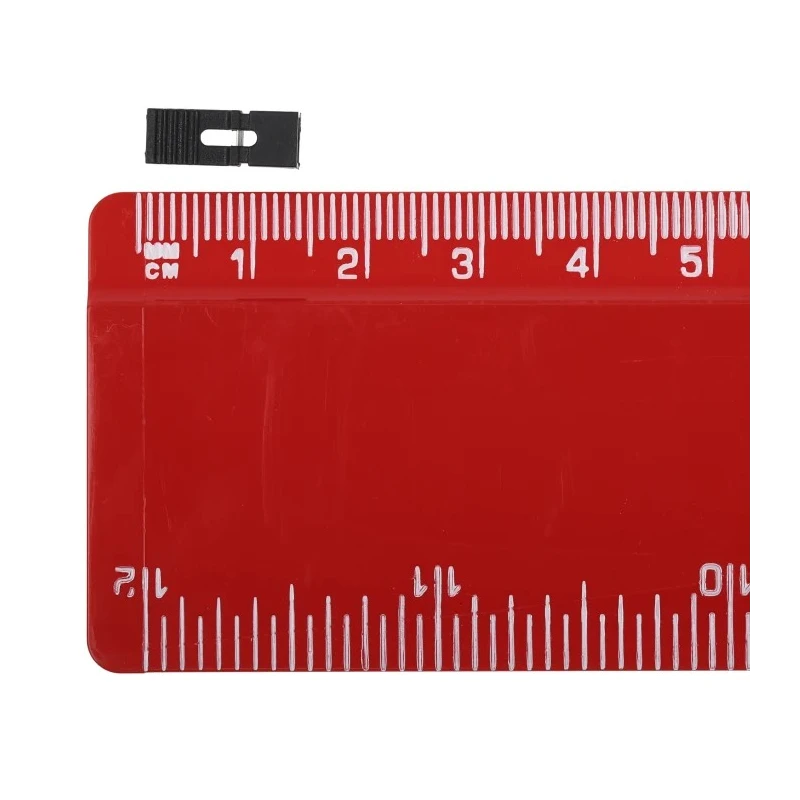

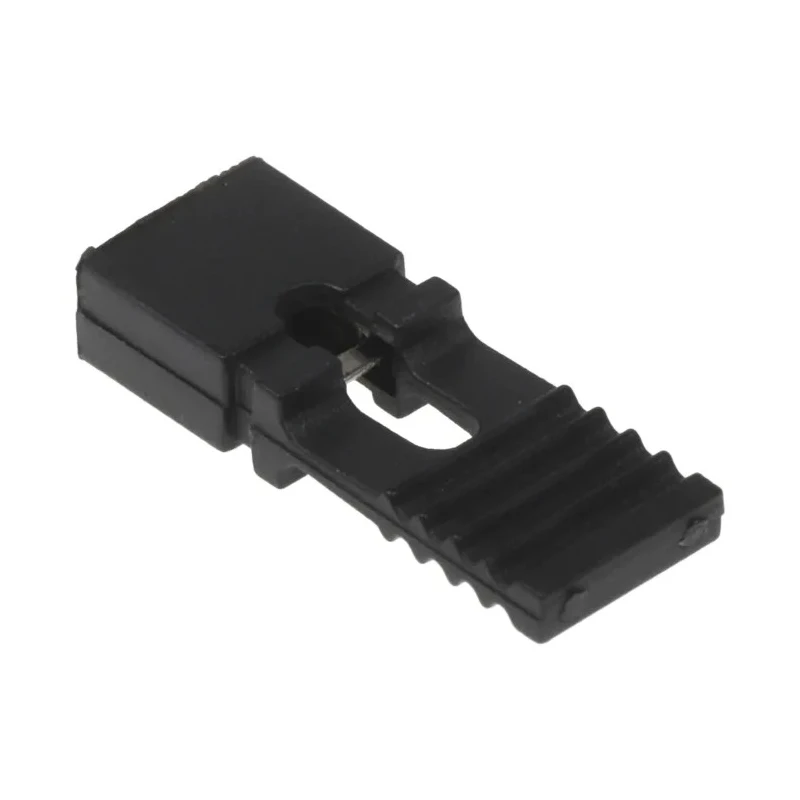

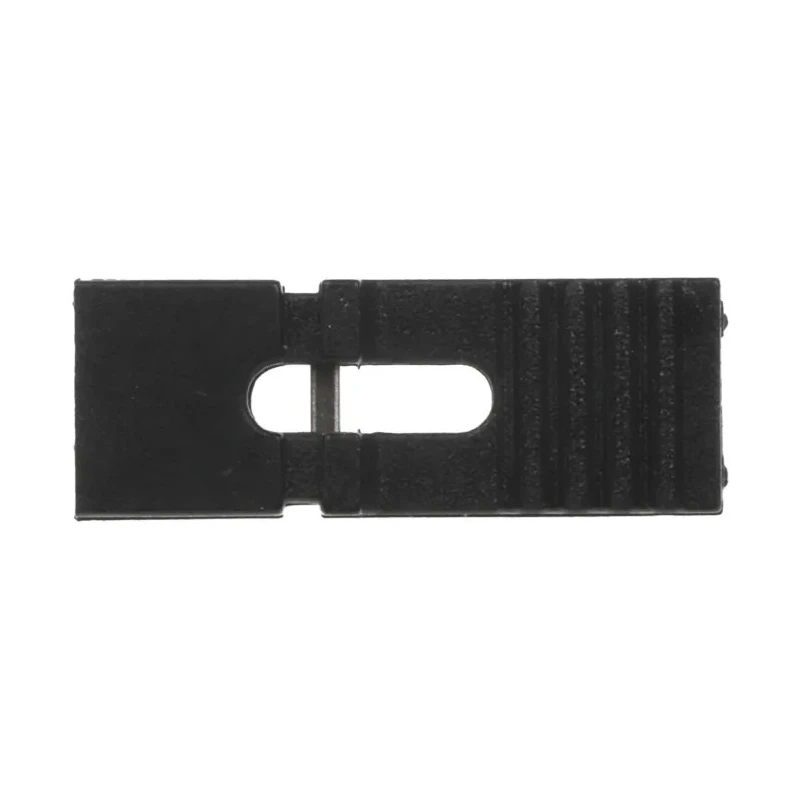

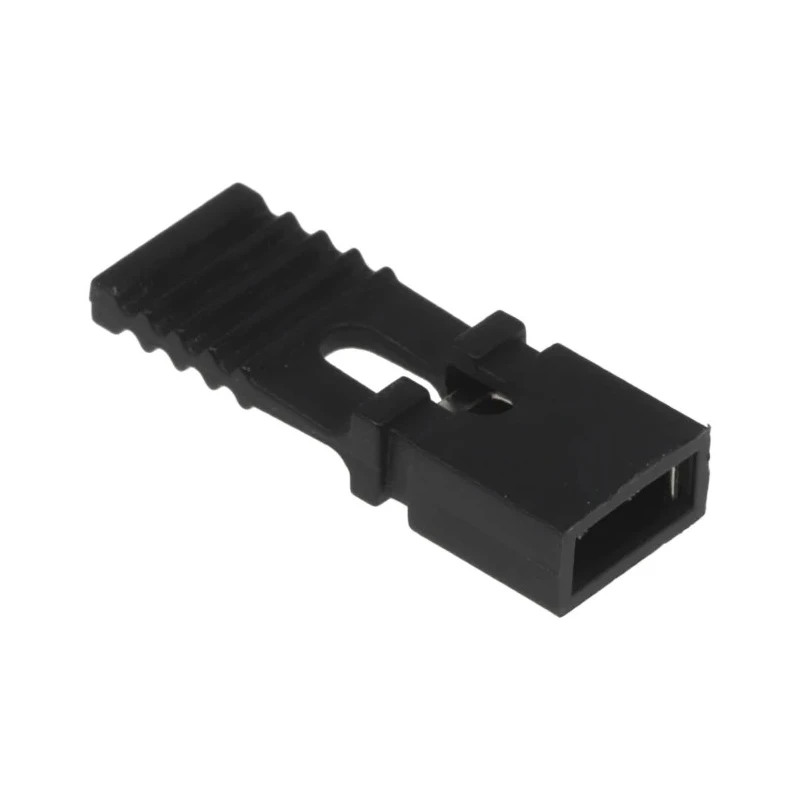

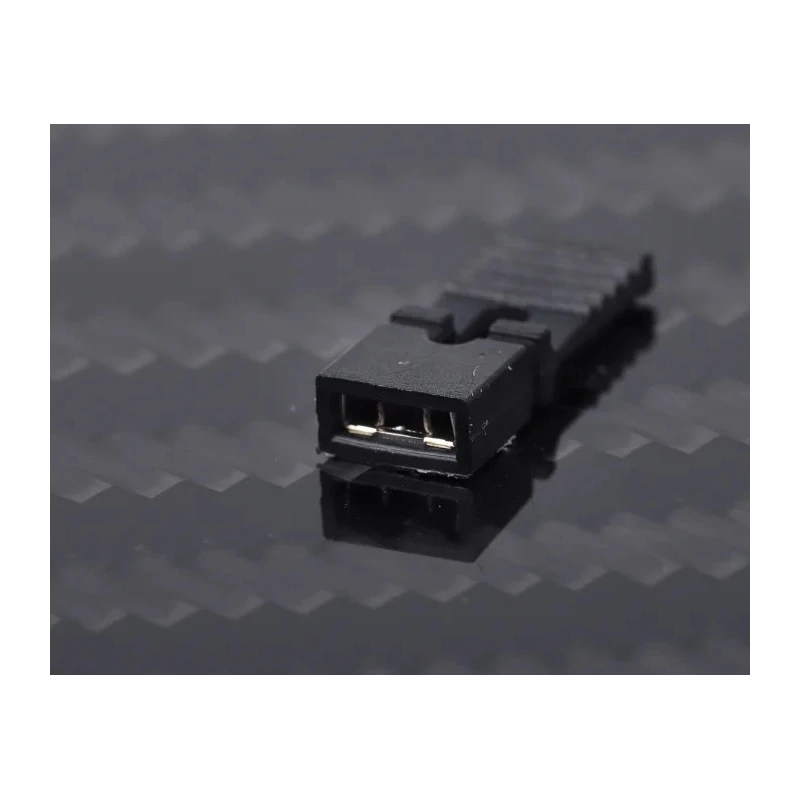

RS PRO Shorting Link Straight Female Black 2 Way 1 Row 2.54 mm Pitch 251-8575
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 4.98mm |
| Model | 251-8575 |
| Depth | 2.44mm |
| Width | 14mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed with polybutylene terephthalate housing for robust insulation and protection.
- Phosphor bronze contact material plated with tin over nickel for reliable electrical connections.
- Closed top design with thumb pull handle for easy handling.
- Supports a maximum current of 3A with a maximum contact resistance of 20 milliohms.
- Compact dimensions of 4.98 mm length, 14 mm width, and 2.44 mm depth.
- Compatible with 0.6 mm square headers of minimum 4.3 mm length.
- UL 94 V rated flame retardant housing ensuring safety and durability.
- RoHS compliant and manufactured in Taiwan, Province Of China.
Product Description
RS PRO 251-8575 shorting link is a high-quality female connector designed for PCB applications, featuring a black polybutylene terephthalate housing that provides excellent insulation and mechanical protection. The straight orientation and closed top design with a thumb pull handle facilitate easy insertion and removal in circuit boards.
This connector has 2 phosphor bronze contacts plated with tin over nickel for corrosion resistance and precise electrical conduction. It is engineered to support currents up to 3A, with a low maximum contact resistance of 20 milliohms, ensuring efficient electrical performance.
Its compact size, with a length of 4.98 mm, width of 14 mm, and depth of 2.44 mm, fits perfectly with 0.6 mm square headers having a minimum recommended length of 4.3 mm, making it suitable for densely populated PCB designs.
The housing is UL 94 V rated flame retardant, meeting stringent safety standards and ensuring reliable operations in industrial and electronic equipment. This shorting link complies with RoHS regulations, reducing environmental impact by restricting hazardous substances.
Typical industrial use includes electronics manufacturing, circuit prototyping, and power system integration where opening, closing, or bypassing sections of circuits on PCBs are required. Its robust construction and precise contact design make it ideal for applications that demand durability and dependable electrical connectivity.
Polybutylene terephthalate housing for strong insulation. Tin over nickel plated phosphor bronze contacts ensure excellent conductivity. Closed top with handle pull for user-friendly operation. Supports 3A current with a contact resistance of maximum 20 mΩ.
Dimensions: 4.98 mm x 14 mm x 2.44 mm for compact mounting. Compliant with RoHS and UL 94 V flame retardant standards. Explore more products in PCB Connectors & Wire Housings category for diverse electronic component solutions.
Explore more products in our Link Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A.
It has compact dimensions of 4.98 mm in length, 14 mm in width, and 2.44 mm in depth.
The housing is made from polybutylene terephthalate, and the contacts are phosphor bronze plated with tin over nickel.
The maximum contact resistance is 20 milliohms.
It is compatible with 0.6 mm square headers that have a minimum length of 4.3 mm.
The connector features a straight orientation.
Yes, it is UL 94 V rated for flame retardance and complies with RoHS regulations.
This shorting link has 2 contacts.
It is typically used in electronics manufacturing, circuit prototyping, and power system integration.
It features a closed top design with a thumb pull handle for easy insertion and removal.
This model is manufactured in Taiwan, Province Of China.
The pitch of this connector is 2.54 mm.
