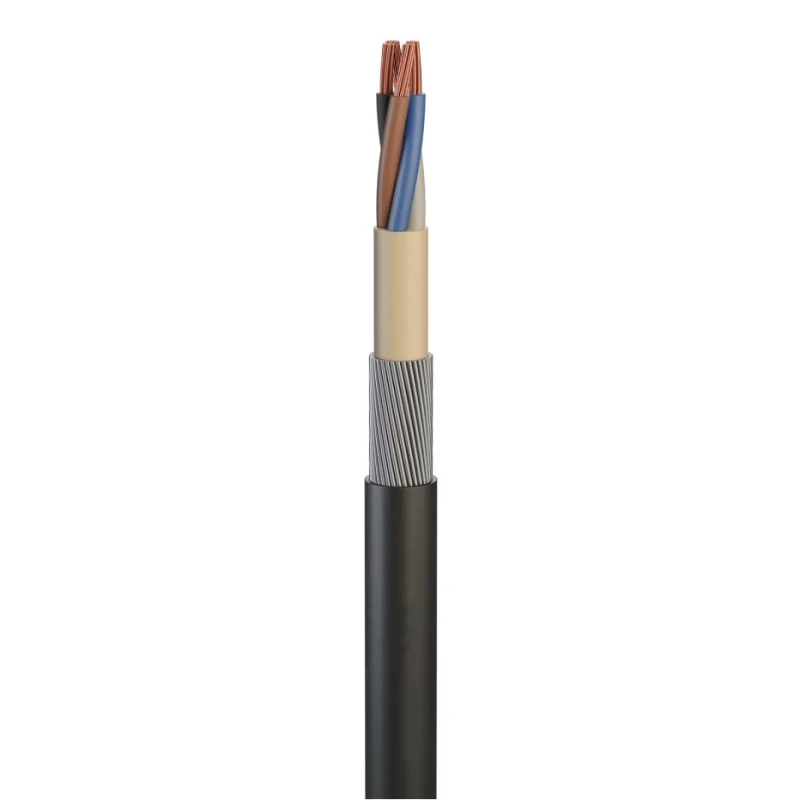

RS PRO 3 Core Power Cable 16mm² 1000, 600V 90 °C Cross Linked Polyethylene 185-4002
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1000, 600V |
| Brand | RS PRO |
| Model | 185-4002 |
| Outside diameter | 20.4mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 3 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Cross Linked Polyethylene |
| Standards/Approvals | BS EN 60228 |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 1.70mm |
| Size of Strands | 1.70mm |
| Cable CSA | 16mm² |
Key Features
- The cable features a robust cross linked polyethylene jacket providing excellent thermal and chemical resistance.
- It is designed for heavy duty applications with galvanised steel wire armoured protection.
- The cable operates at voltages up to 1000V AC and 600V DC, suitable for demanding industrial environments.
- The conductor is composed of stranded copper with 7 strands of 1.7mm diameter each to ensure flexibility and conductivity.
- The cable is rated for a maximum operating temperature of 90 °C and a minimum of -15 °C.
- Its construction includes PVC bedding and sheathing for mechanical protection and environmental durability.
- Designed for use indoors, outdoors, and suitable for underground installation in free draining soil.
- Complies with the BS EN 60228 standard ensuring safety and performance.
Product Description
RS PRO 185-4002 Power Cable is a 3 core, 16mm² cross linked polyethylene insulated power cable designed for heavy duty electrical power transmission at voltages of 1000V AC and 600V DC with a maximum operating temperature of 90 °C. This steel wire armoured (SWA) cable features stranded copper conductors with seven strands, each of 1.7mm diameter, delivering flexibility and excellent conductivity required for industrial and construction applications.
The cable jacket consists of cross linked polyethylene (XLPE), providing outstanding dielectric strength, thermal resistance, and corrosion resistance even under high temperature conditions. Its galvanised steel wire armour offers optimum mechanical protection against pinching and physical damage, making it ideal for tough environments including underground systems. The protective PVC bedding and sheathing enhance durability in diverse installation settings including indoors, outdoors, and underground use in free draining soil.
RS PRO 185-4002 complies with BS EN 60228 standards, ensuring compliance with industrial safety and performance requirements. It is engineered for reliability and longevity in applications such as power networks, railways, construction, and other heavy duty electrical installations. This cable is rated for operation in temperatures ranging from -15 °C up to 90 °C, making it versatile across different working environments.
The cable construction includes galvanised steel wire armour for superior mechanical protection. Cross linked polyethylene insulation offers excellent thermal and chemical resistance. Stranded copper conductors with seven 1.7mm strands ensure high conductivity and flexibility.
Designed for 1000V AC and 600V DC voltage applications with high temperature operation capability. Robust PVC bedding and sheathing provide enhanced durability against environmental damage. Suitable for indoor, outdoor, and underground installations in free draining soil.
Complies with BS EN 60228 safety and performance standards.
This power cable is an ideal choice for industrial, construction, railway, and power network installations requiring durable, armored cables capable of withstanding mechanical stresses and harsh environmental conditions. Explore more high-quality Power Cables and related electrical products at EnvMart for your industrial electrical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this power cable is 90 °C.
It supports voltage ratings of up to 1000V AC and 600V DC.
The conductor is composed of stranded copper with seven strands, each having a diameter of 1.7mm.
The cable jacket is made of cross linked polyethylene (XLPE), providing excellent thermal and chemical resistance.
Yes, it is suitable for underground installation in free draining soil.
The outside diameter of this cable is 20.4mm.
It complies with the BS EN 60228 standard, ensuring safety and performance.
The minimum operating temperature is -15 °C.
This power cable has 3 cores.
It is designed for heavy duty applications including power networks, railways, and construction.
The cable features galvanised steel wire armour for superior mechanical protection against physical damage.
The conductor type used in this cable is stranded.
