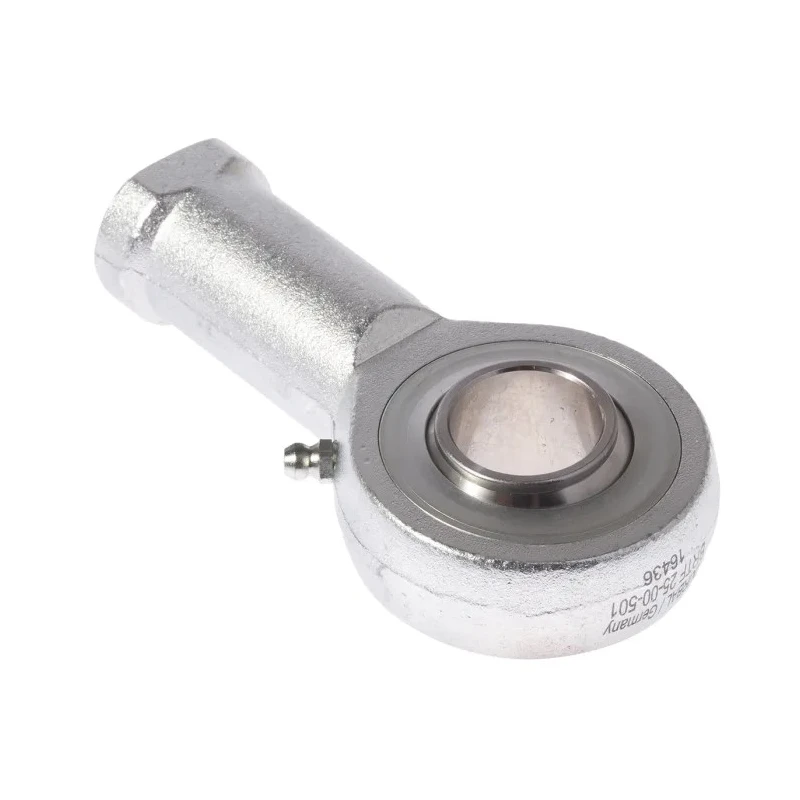

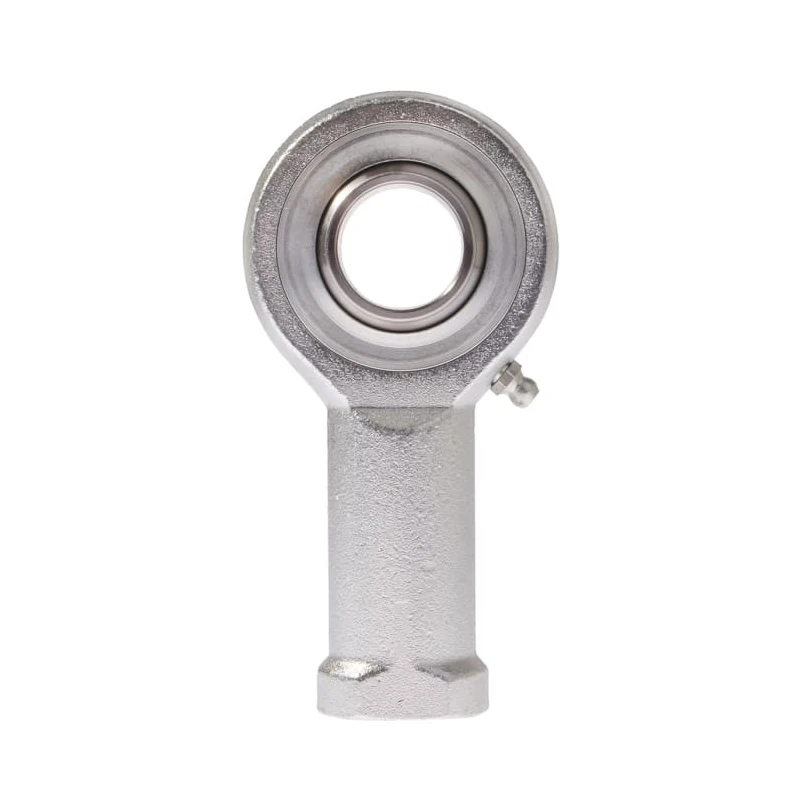

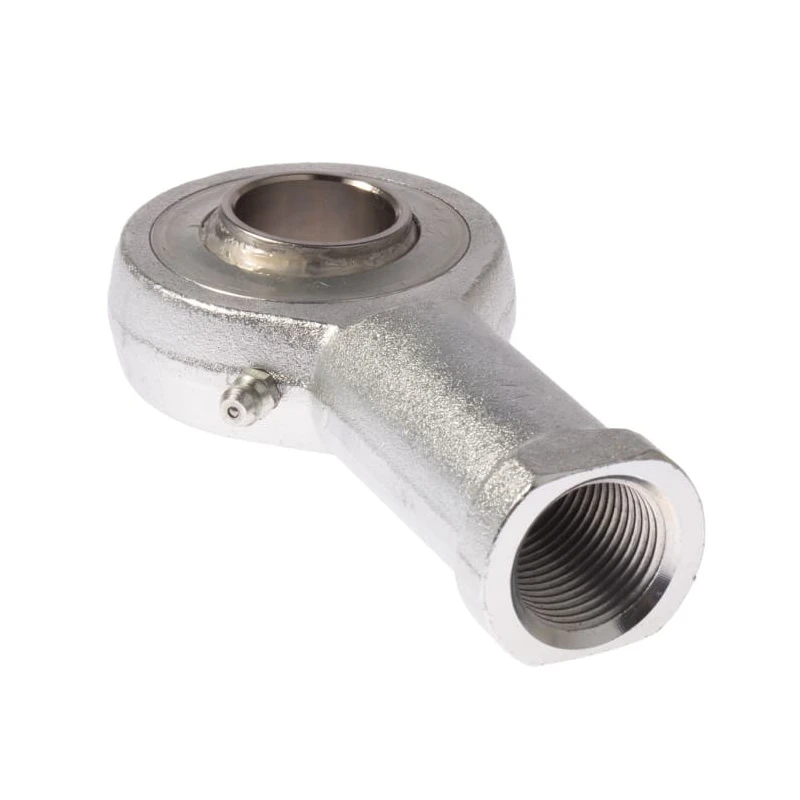

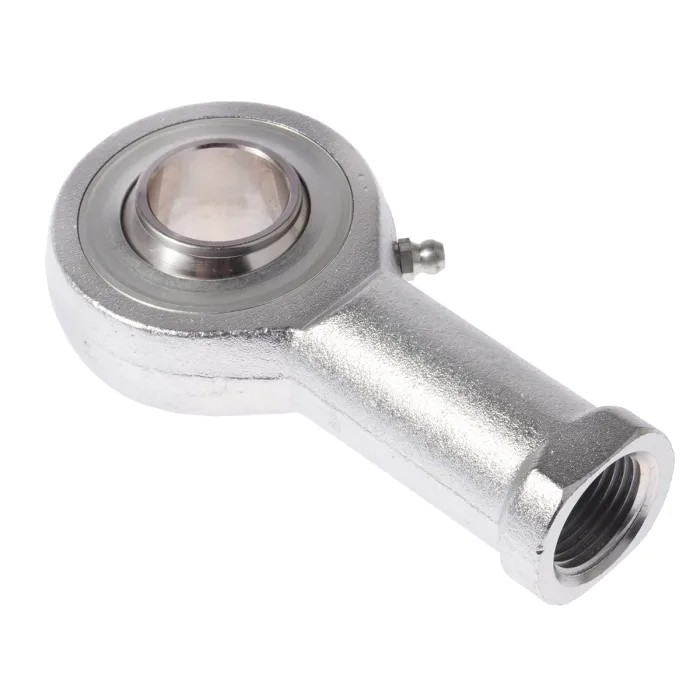

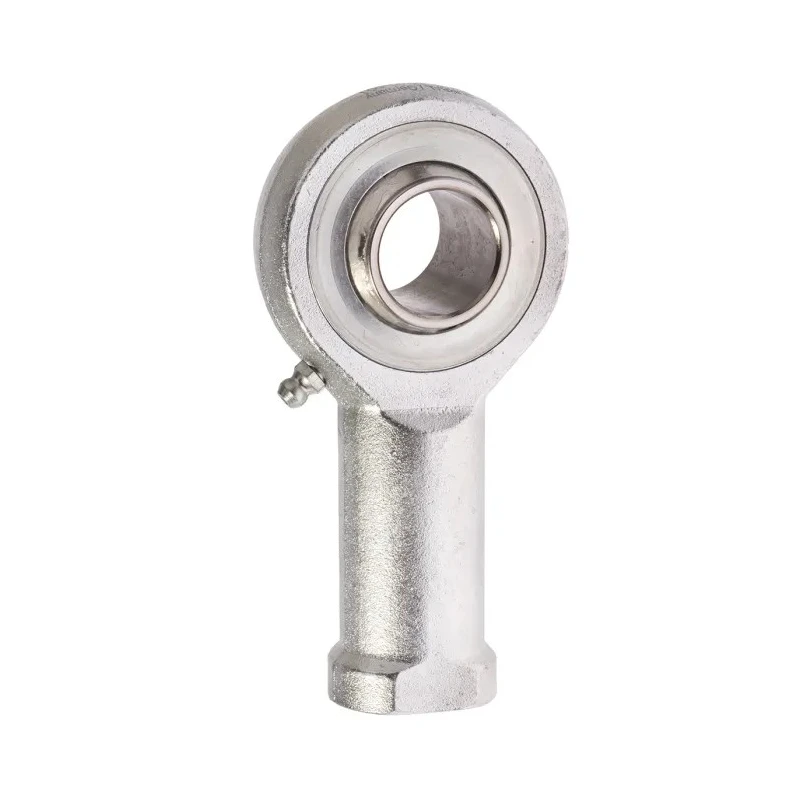

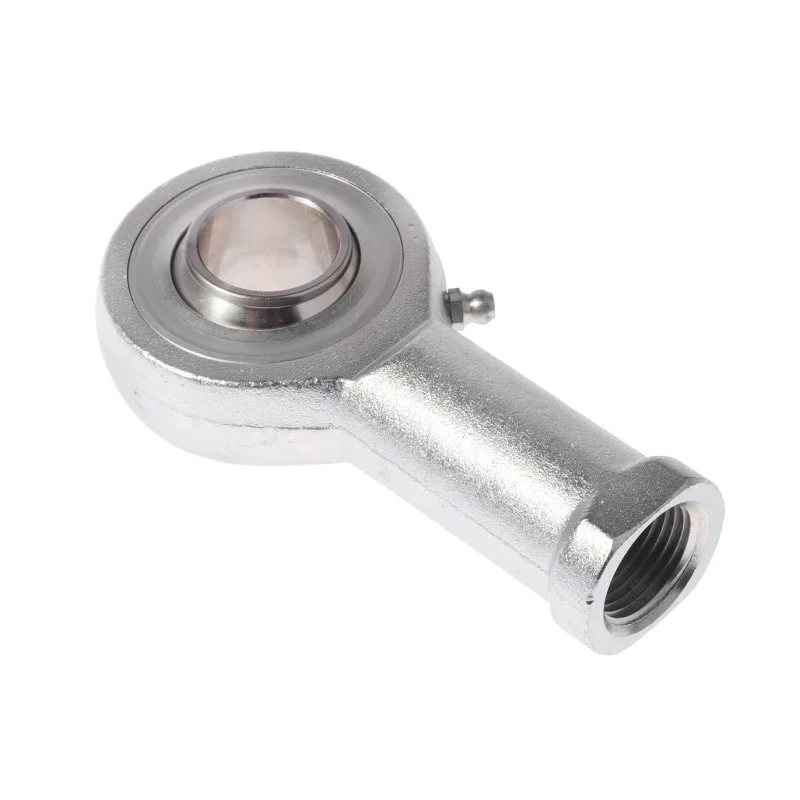

Durbal M12 x 1.75 Female Forged Steel Rod End, 12mm Bore Metric BRF 12-00-502

Durbal BRF 12-00-502 is a premium quality M12 x 1.75 Female Forged Steel Rod End Bearing engineered for robust and reliable rotary applications. With a precise 12mm bore diameter and forged steel construction, this rod end delivers exceptional strength and durability suitable for industrial, mechanical, and fluid power systems.

The rod end housing is tempered and case hardened with a ground and lapped bearing race finished with a galvanized surface to resist corrosion and wear. Its inner ring is made from hardened ball bearing steel with superfine ground surface for extended bearing life and performance. This rod end features a left-hand female thread connection ensuring tight and secure fitting. It allows for lubrication with Polyrex EP2 or soap complex grease to maintain low maintenance operation and prolong service intervals.

Designed to operate reliably within a temperature range of -20 °C to +120 °C, it accommodates various demanding industrial environments including manufacturing, construction, and fluid power systems. The product offers a dynamic load rating of 5.6 kN and a static load rating of 2 kN, making it well-suited for heavy-duty rotary applications. The bearing clearance of 15 - 40 μm radial ensures precise axial and radial alignment for efficient movement and minimal wear.

This rod end has an overall width of 66mm and an outside diameter of 32mm, providing a compact yet strong form factor. It supports metric thread standards facilitating compatibility with standard mechanical assemblies. The left-hand thread direction further expands application flexibility. Although this product does not carry specific approvals or standards, it meets high-quality manufacturing standards and originates from Germany, ensuring reliability and premium material usage.

Ideal for use in mechanical machinery, fluid power tools, and other industrial applications requiring robust, low maintenance bearings with excellent load capacity and alignment features. The forged steel construction ensures high resistance to impact and fatigue, making this rod end a dependable component in demanding operational conditions.

Constructed with forged steel housing, tempered and case hardened for high durability. Features a left-hand female thread sized M12 x 1.75 for secure connections. Dynamic load rating of 5.6 kN ensures high performance under operating stress.

Static load rating of 2 kN supports stationary load applications effectively. Operating temperature range from -20°C to +120°C suits varied industrial environments. Bearing race is ground and lapped with surface galvanized finish for corrosion resistance.

Inner ring made of hardened, superfine ground ball bearing steel optimizes bearing life. Lubrication is possible with Polyrex EP2 or soap complex grease for low maintenance. Rod end features a greasable female thread for easy lubrication.

Bearing clearance is tightly controlled between 15 - 40 μm radial to minimize play. Explore more in Durbal rod ends and rotary bearing units at EnvMart for reliable industrial components backed by trusted German engineering and precision manufacture.
