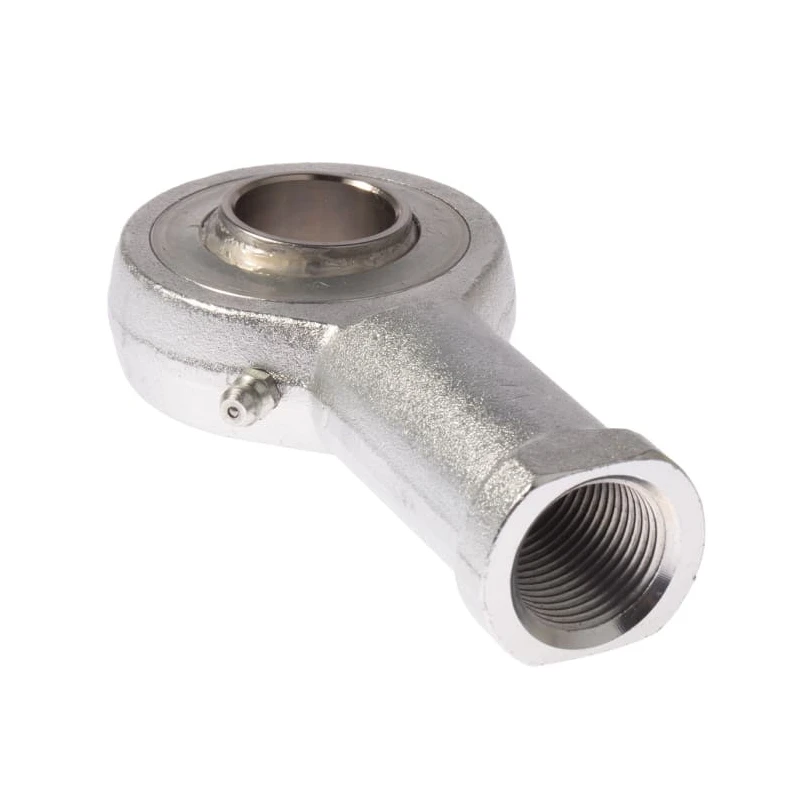

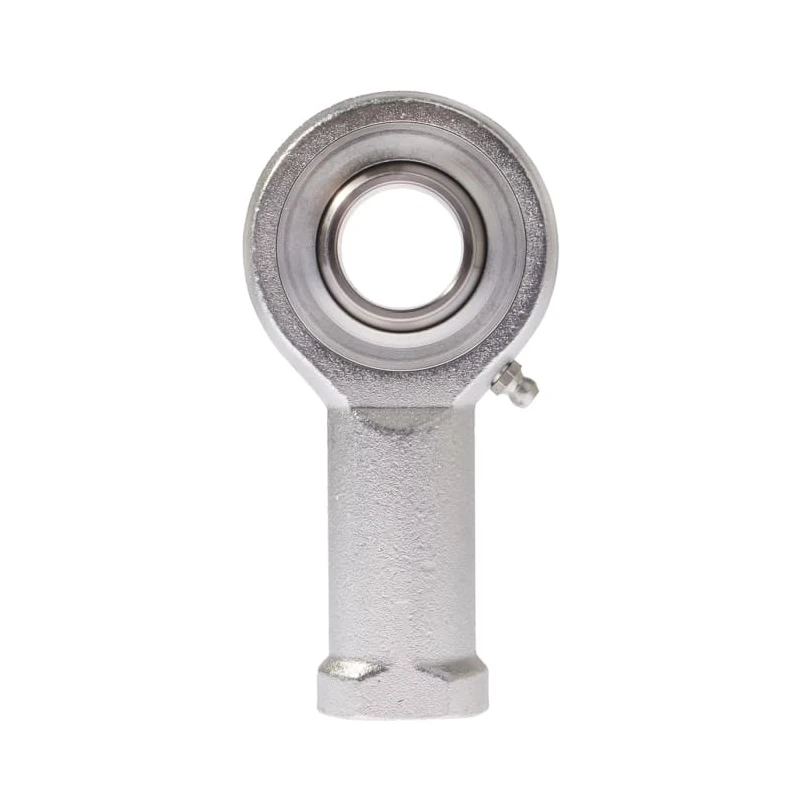

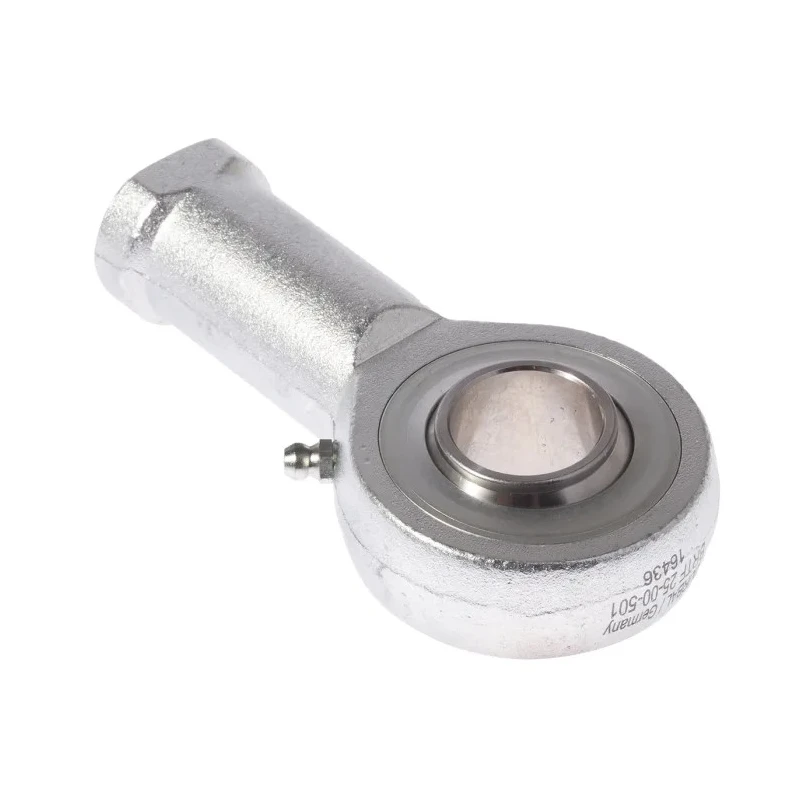

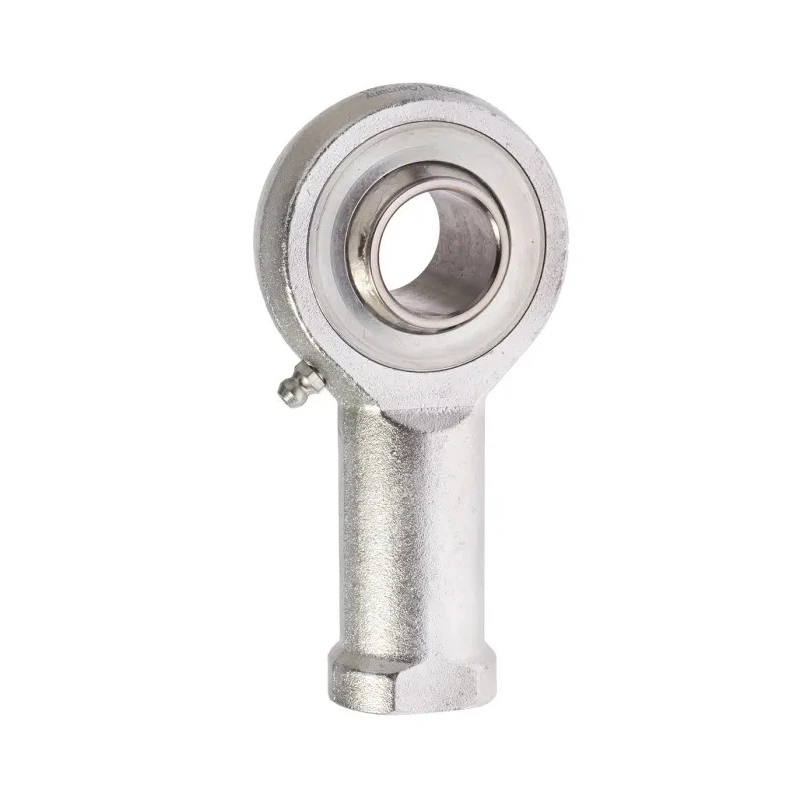

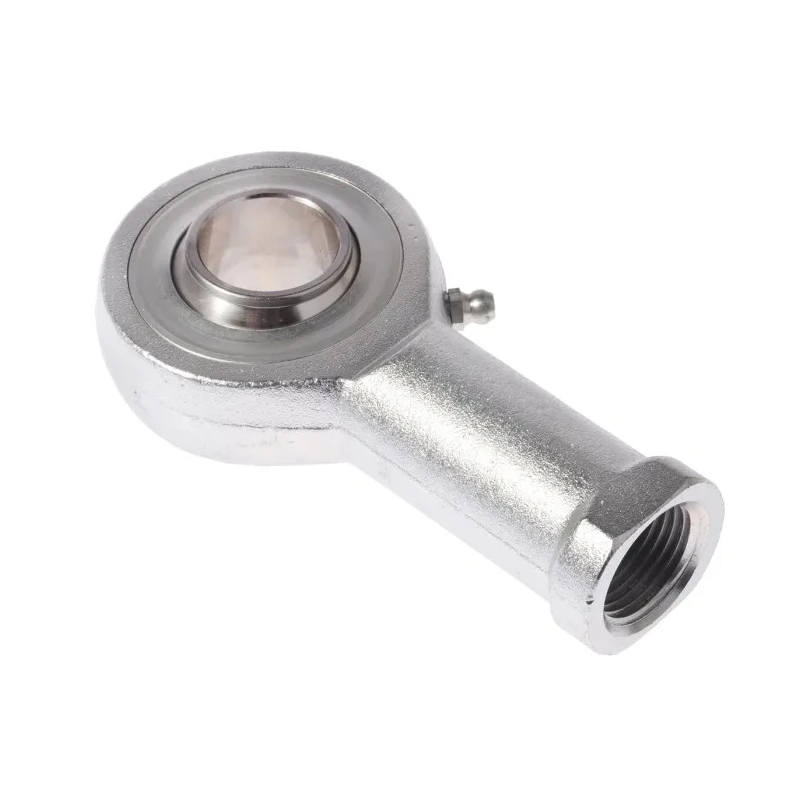

Durbal Female Forged Steel Rod End M20 x 1.5, 20mm Bore, Metric Thread BRF 20-00-501

Durbal BRF 20-00-501 female forged steel rod end with M20 x 1.5 metric thread and 20mm bore is engineered for demanding industrial applications requiring reliable rotary bearing performance.

Constructed from premium forged steel, the rod end housing is tempered, case hardened, and surface galvanized to ensure long-lasting corrosion resistance and mechanical strength. The integral self-aligning ball bearing within features hardened, superfine ground ball bearing steel for precision and durability.

This rod end supports a dynamic load rating of 14.2 kN and a static load rating of 7.5 kN, making it suitable for applications involving fluctuating and steady forces. The right hand threaded connection ensures compatibility with standard metric mechanical assemblies.

The product operates effectively within a wide temperature range of -20°C to 120°C, maintained by lubrication options including Polyrex EP2 or soap complex to minimize wear and maintenance.

Key dimensions include a 20mm bore diameter, 46mm outside diameter, and an overall width of 102mm, meeting the requirements of precision mechanical and fluid power systems.

This rod end is manufactured in Germany and complies with industry standards for mechanical reliability, suitable for use in industrial machinery, hydraulic and pneumatic tools, and related mechanical assemblies where robust rotary bearing solutions are required.

Forged steel housing, tempered and case hardened, surface galvanized for protection. Ball bearing inners made of hardened, superfine ground bearing steel. Low maintenance lubrication with Polyrex EP2 or soap complex. Dynamic load rating: 14.2 kN; Static load rating: 7.5 kN.

Operating temperature range: -20°C to 120°C. Precision bearing clearance of 15 to 40 microns radial. Female M20 x 1.5 right hand threaded connection. Bore diameter: 20 mm, outside diameter: 46 mm, overall width: 102 mm. Browse the Industrial Tools & Equipment category for more high-quality rotary bearings and housing units at EnvMart.
