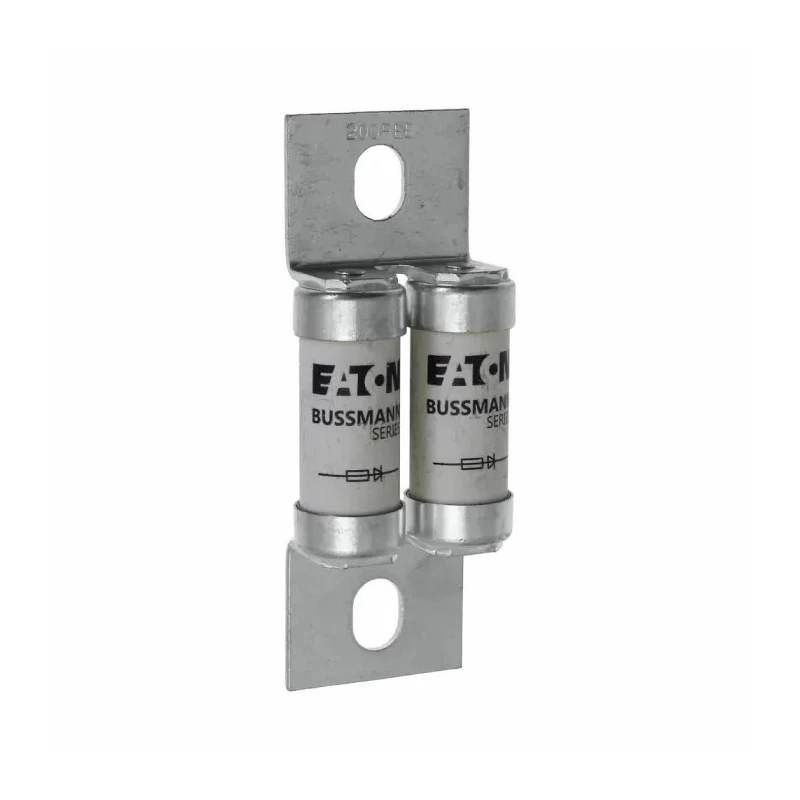

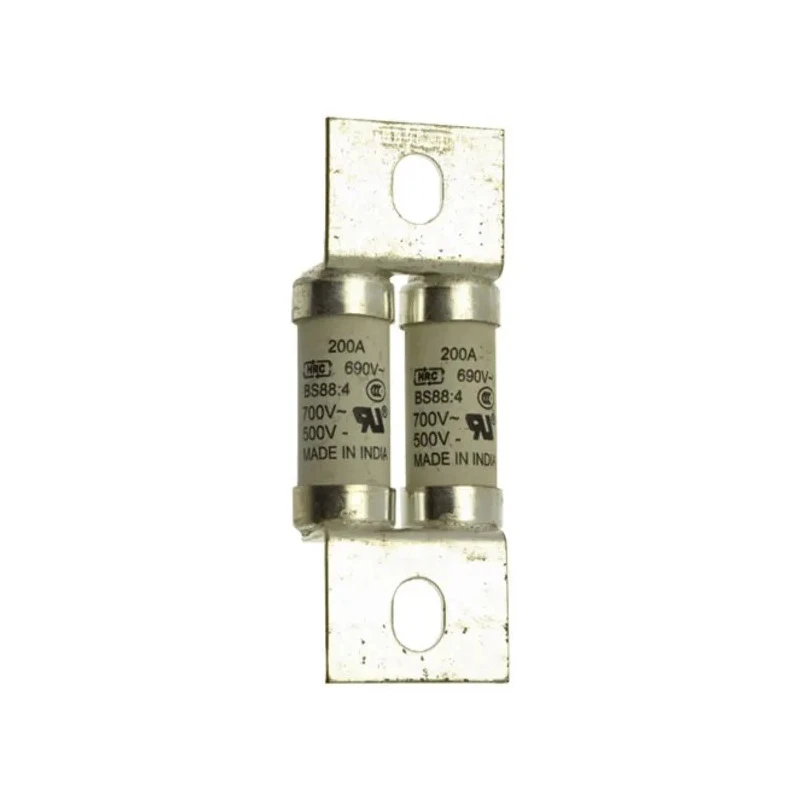

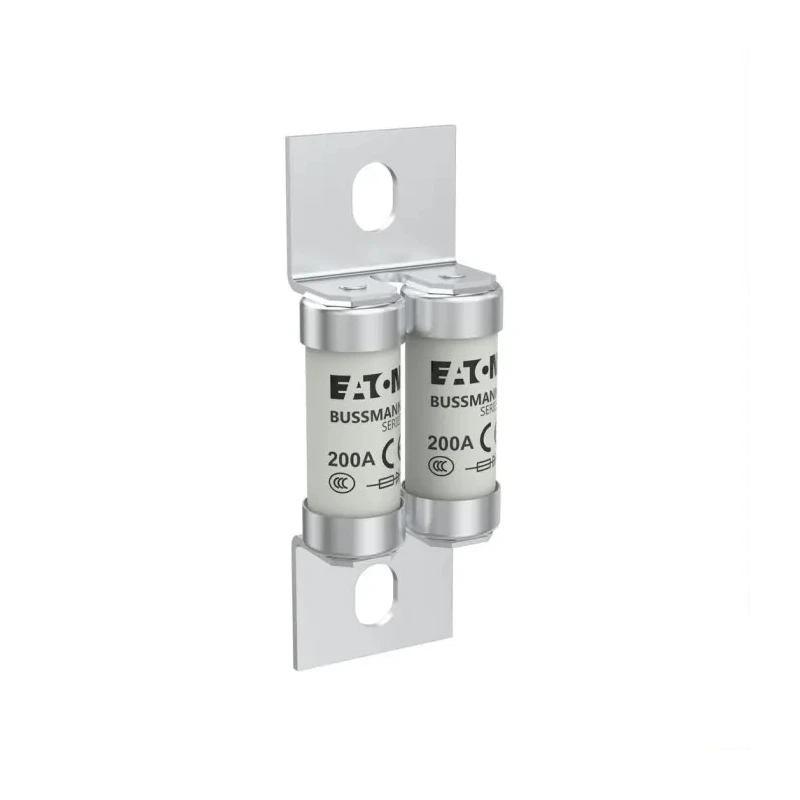

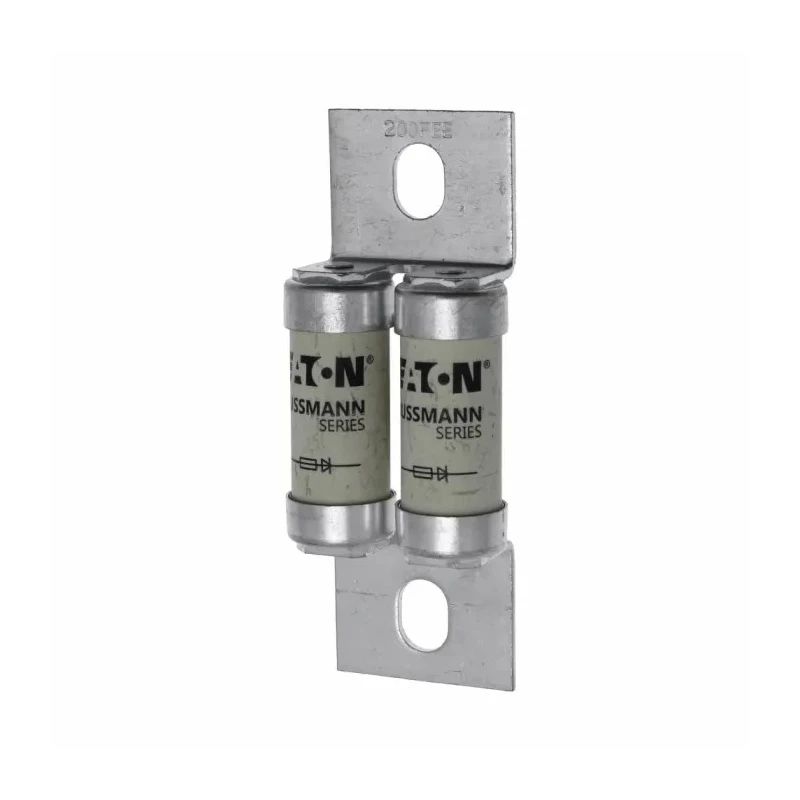

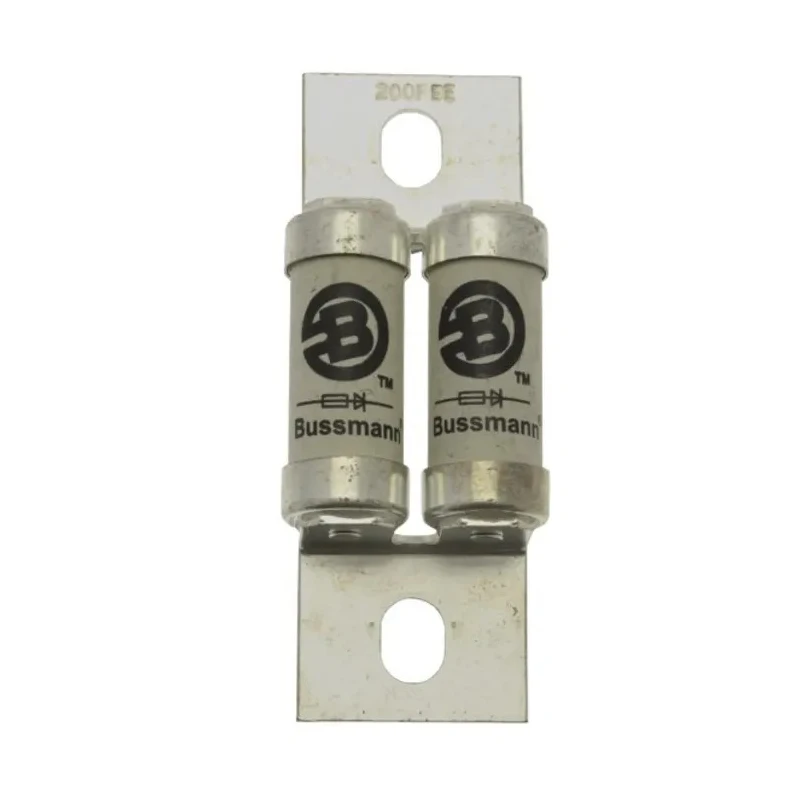

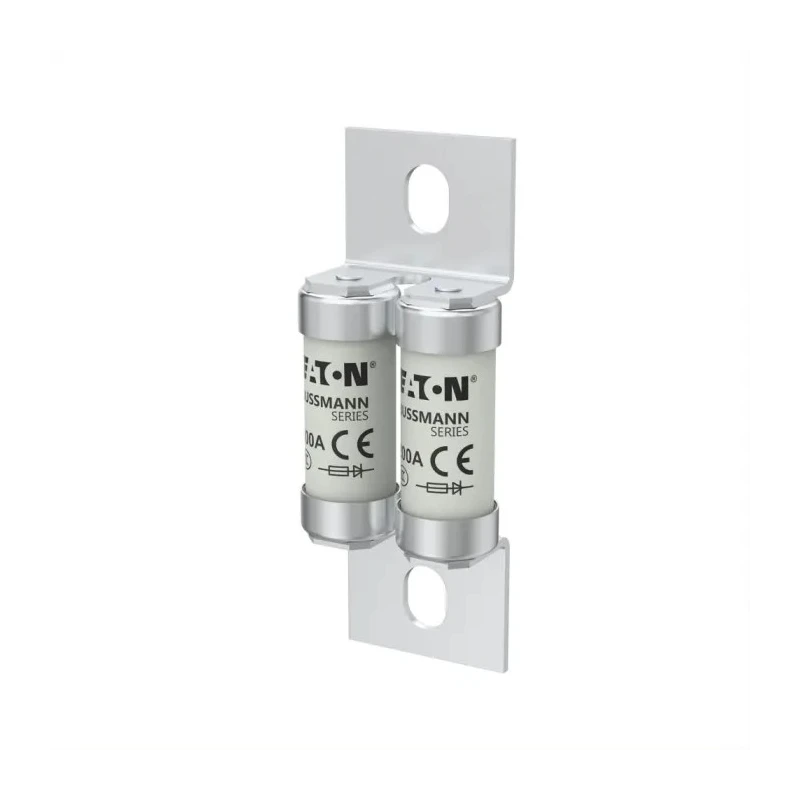

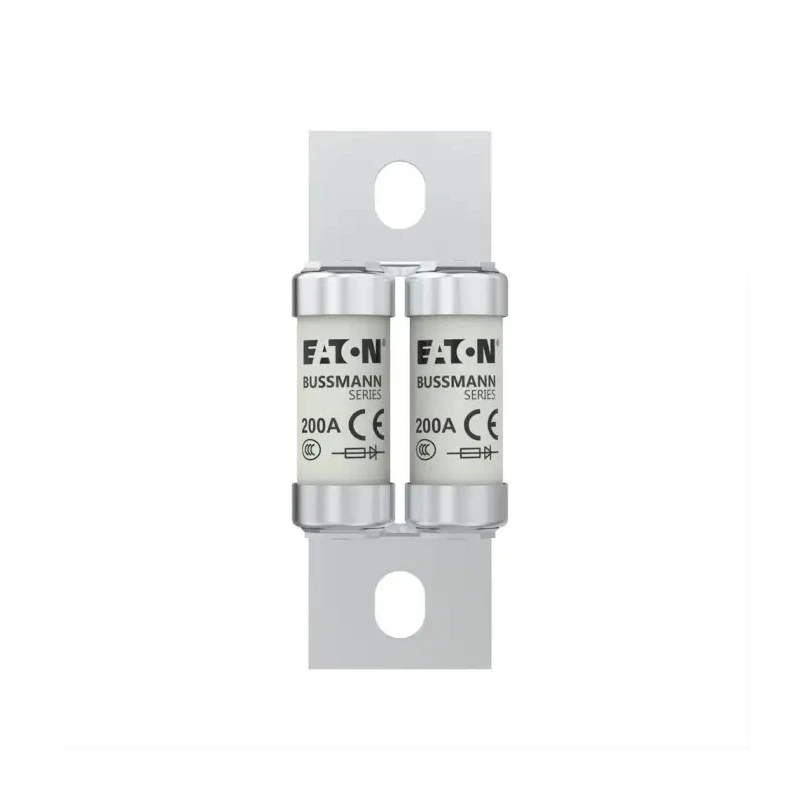

Eaton 200A British Standard High-Speed Fuse 690V AC, 500V DC, 100 mm x 22 mm x 187 mm 200FEE

Eaton 200FEE 200A British Standard high-speed cartridge fuse rated for industrial and automation electrical circuit protection at 690V AC and 500V DC. This fuse offers rapid disconnection capabilities to safeguard motor systems, power converters, and automation equipment from overloads and short circuits.

Featuring a compact cartridge measuring 100 mm length, 22 mm height, and 187 mm width, it is designed for installation in standard fuse blocks where space efficiency is critical. The offset tag orientation with a width of 31.8 mm supports bolted or clamp-style terminal connections, facilitating secure and stable electrical contacts.

Fixing centres are standardized at 70 mm, making it compatible with common panel mounting configurations. The fuse’s high rupture capacity ensures safe interruption of large fault currents, minimizing damage and improving system reliability in demanding industrial applications.

Constructed to meet IEC 60269-4 and certified to RoHS, CE, and UL standards, the 200FEE series fuse complies with strict safety and environmental regulations. It is manufactured in India, guaranteeing quality and consistent performance.

This fuse is well-suited for use in industrial drive systems for motor protection, distribution panels across manufacturing plants, power converters, and DC bus protection schemes. Its aR application category rating confirms its appropriateness for a wide range of protective roles in electrical distribution.

This fuse offers a current rating of 200A for robust circuit protection. It features high rupture capacity to safely interrupt large fault currents. Compatible with both 690V AC and 500V DC electrical systems. The cartridge dimensions of 100 mm x 22 mm x 187 mm allow easy installation in standard fuse blocks.

Offset tag orientation with 31.8 mm tag width facilitates secure bolted or clamp connections. Fixing centres set at 70 mm ensure compatibility with common panel mounting setups. Complies with IEC 60269-4, RoHS, CE, and UL standards ensuring electrical safety and material compliance.

Ideal for motor protection in industrial drive systems and distribution panels in manufacturing plants. Explore more from Eaton’s range of industrial fuses and electrical protection equipment on EnvMart for reliable and safe industrial electrical maintenance solutions.
