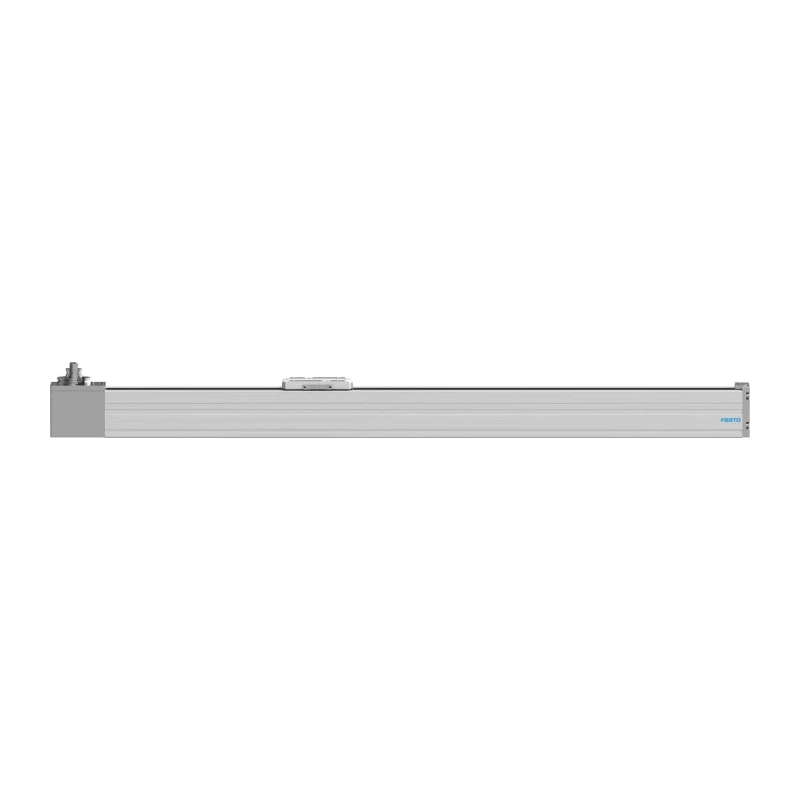

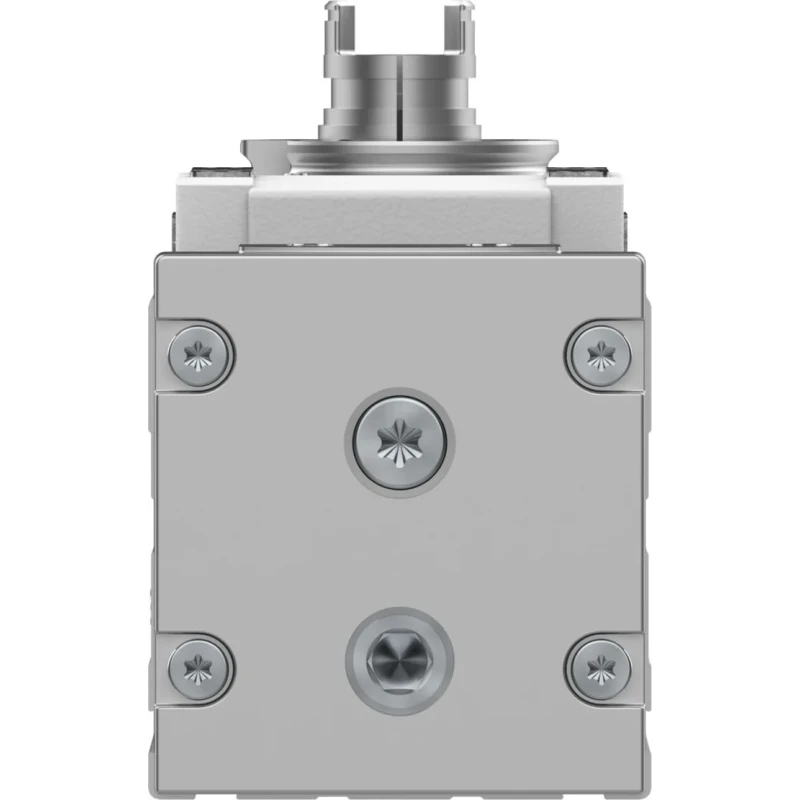

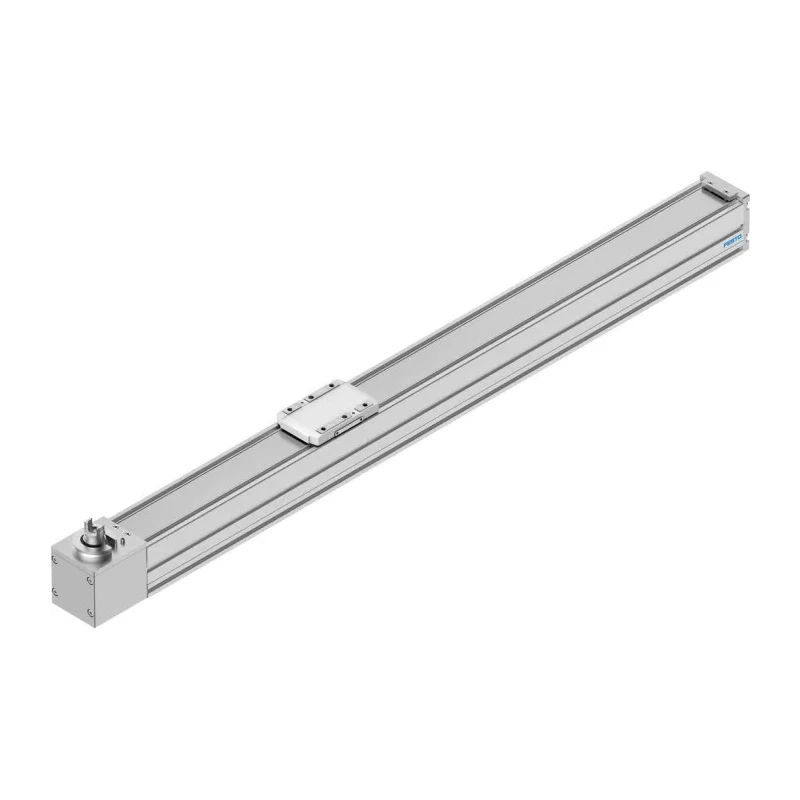

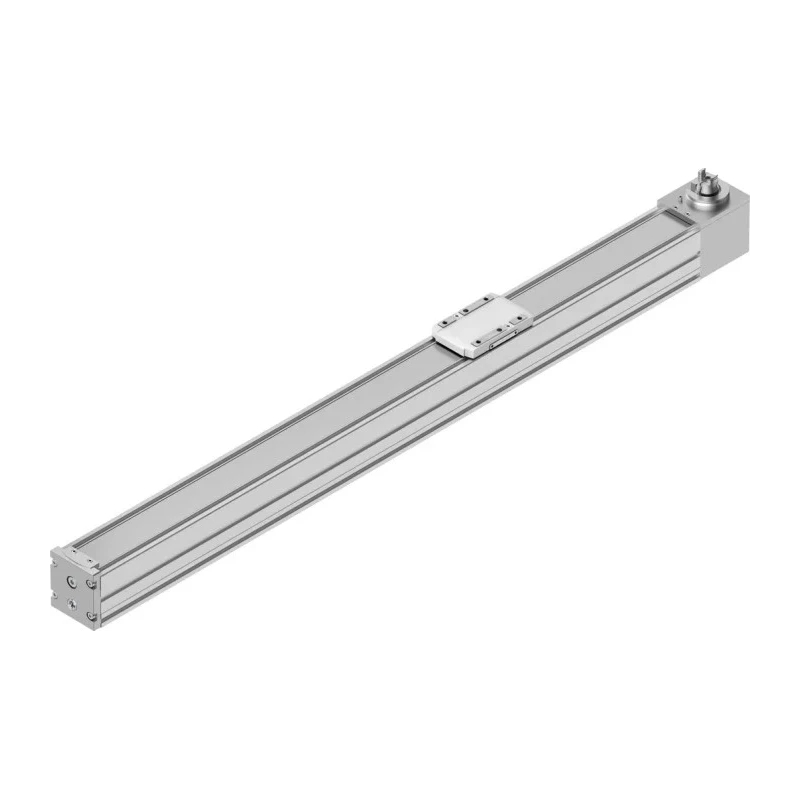

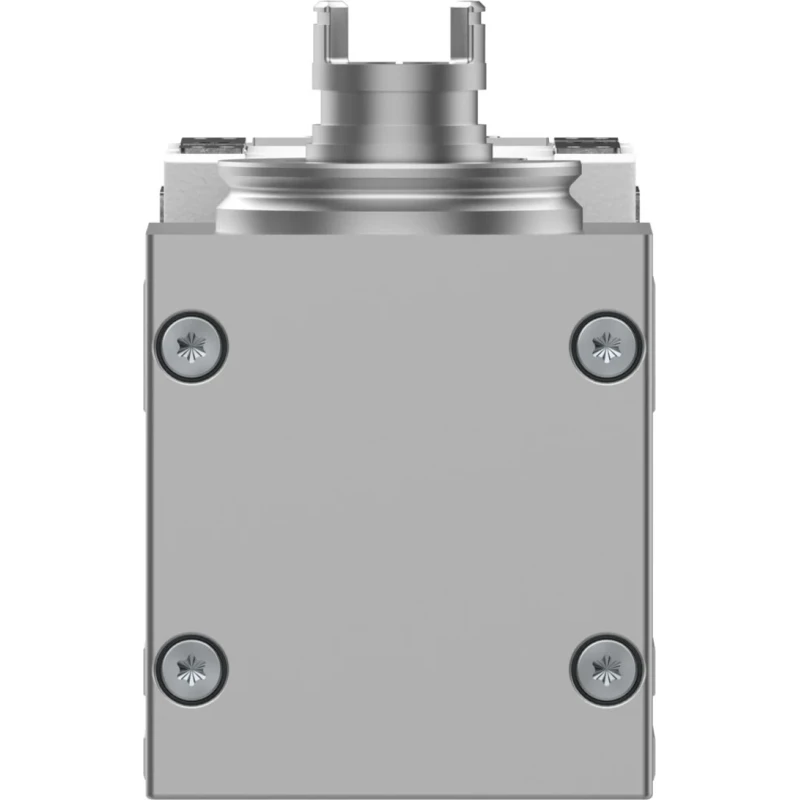

Festo Electrical Linear Actuator 500 mm Stroke Length 600N Maximum Load 1200 mm/s Speed ELGC-TB-KF-45-500

Festo ELGC-TB-KF-45-500 Electrical Linear Actuator is an industrial-grade linear motion solution offering a 500 mm stroke length and a maximum force of 600N at speeds up to 1200 mm/s. Powered by advanced servo and stepper motor technologies, this actuator ensures precise positioning with smooth, reliable motion. It is designed for demanding continuous-use environments with a 100% duty cycle rating.

Constructed from die-cast aluminium and steel, this actuator combines corrosion resistance with strength, delivering long service life even in harsh industrial settings. Its compact footprint and internal guide with a toothed belt spindle type provide efficient space utilization and robust mechanical performance.

The IP40 rating protects the actuator from ingress of solid objects greater than 1 mm, making it suitable for controlled industrial environments. Operating temperature ranges from 0°C to 50°C, ensuring versatility in typical manufacturing conditions. Weighing just 1.91 kg, the actuator is easy to mount and integrate into existing systems.

Additional features include breathing ports for dirt particle removal using overpressure or vacuum, enhancing reliability and reducing maintenance needs.

This electric linear actuator is commonly used in machine tools and factory automation for tasks requiring push, pull, or press loads with high accuracy and speed. Its common platform architecture supports easy system integration, making it an ideal choice for industrial automation and motion control applications.

Equipped with a high-performance servo and stepper motor technology for accurate control. Designed for continuous operation with a 100% duty cycle rating. Constructed with die-cast aluminium and steel for corrosion resistance and durability.

Compact design saves installation space and facilitates easy integration. Rated IP40 to protect against tools and wires over 1 mm in size. Capable of operating reliably between 0°C and 50°C ambient temperatures. Features a toothed belt spindle type for efficient push, pull, and press load handling.

Lightweight construction with a gross weight of 1.91 kg aids in easy handling and installation. Suitable for precise automation in machine tools and factory automation applications. Includes breathing ports to remove dirt particles via overpressure or vacuum.
