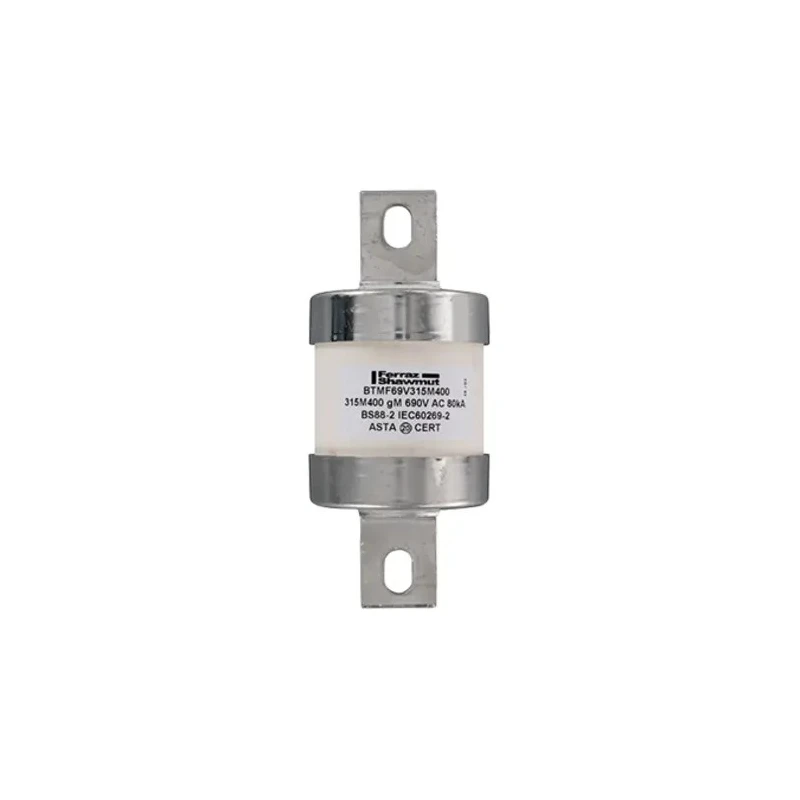

Mersen 315A Bolted Tag Fuse B4 690V AC Central Bolted Tag Fuse-links gM 690VAC/460VDC N1006630 / BTMF69V315M400
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 690V ac |
| Diameter | 59.1mm |
| Brand | Mersen |
| Height | 75mm |
| Length | 75mm |
| Model | N1006630 / BTMF69V315M400 |
| Width | 59.1mm |
| Overall Length | 138mm |
| Current Rating | 315A |
| Series | Central Bolted Tag Fuse-links gM 690VAC/460VDC |
| Standards/Approvals | EN 60269-2, REACH, RoHS, CE |
| Fuse Size | B4 |
| Fixing Centres | 111 mm |
| Tag Width | 26mm |
| Tag Orientation | Centred |
| Application Category | gM |
Key Features
- This bolted tag fuse has a current rating of 315A.
- Designed for 690V AC voltage compatibility.
- Fuse size is B4 with a tag width of 26 mm and tag orientation centered.
- Complies with EN 60269-2, REACH, RoHS, and CE standards.
- Features fixing centres of 111 mm ensuring secure mounting.
- Its overall length measures 138 mm with a height and length of 75 mm each.
- Diameter and width are both 59.1 mm for compact installation.
- High rupture capacity is not supported by this model.
Product Description
Mersen N1006630 / BTMF69V315M400 Bolted Tag Fuse is engineered for industrial applications requiring reliable motor protection and general purpose use. Rated at 315A, this B4 size fuse supports operation at 690V AC, making it ideal for electrical circuits needing high performance and safety.
This fuse is part of the Central Bolted Tag Fuse-links series compatible with gM category applications. It combines compact dimensions of 138 mm overall length, 75 mm height, and 59.1 mm diameter, with fixing centres spaced at 111 mm for secure installation on fuseholders, busbars, or fuse interruptors disconnectors.
Certified to comply with essential standards such as EN 60269-2, REACH, RoHS, and CE, it ensures high reliability and environmental compliance. The tag width of 26 mm and centered tag orientation simplify integration into existing electrical systems.
Although it does not possess a high rupture capacity, this bolted tag fuse delivers excellent current limitation to protect circuits against overloads and motor faults while preventing substitution by higher rating fuses within its range for safety.
Manufactured in India, this Mersen fuse is well-suited for use in industrial automation, manufacturing, electrical and automation cables distribution, and general electrical safety applications.
This bolted Tag Fuse has a current rating of 315A. Designed for 690V AC voltage compatibility. Fuse size is B4 with a tag width of 26 mm and tag orientation centered. Complies with EN 60269-2, REACH, RoHS, and CE standards.
Features fixing centres of 111 mm ensuring secure mounting. Its overall length measures 138 mm with a height and length of 75 mm each. Diameter and width are both 59.1 mm for compact installation. High rupture capacity is not supported by this model.
Suitable for general purpose (gG) and motor protection (gM) applications. Manufactured in India adhering to high quality and safety specifications.
Explore the Electronics & Electricals category on EnvMart for a wide selection of reliable circuit protection components including fuses and circuit breakers by trusted brands like Mersen.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This bolted tag fuse has a current rating of 315A.
It is designed for operation at 690V AC.
The overall length of this fuse is 138 mm, with a height and width of 75 mm each, and a diameter of 59.1 mm.
The fuse size is B4, and the tag width is 26 mm.
The fixing centres are spaced at 111 mm, ensuring secure mounting.
It complies with EN 60269-2, REACH, RoHS, and CE standards.
This model is suitable for general purpose (gG) and motor protection (gM) applications.
The tag orientation is centered, which simplifies integration into existing systems.
This fuse is manufactured in India.
No, this model does not possess a high rupture capacity.
It is part of the Central Bolted Tag Fuse-links series compatible with gM category applications.
The overall height and width of this fuse are both 75 mm and 59.1 mm, respectively.
