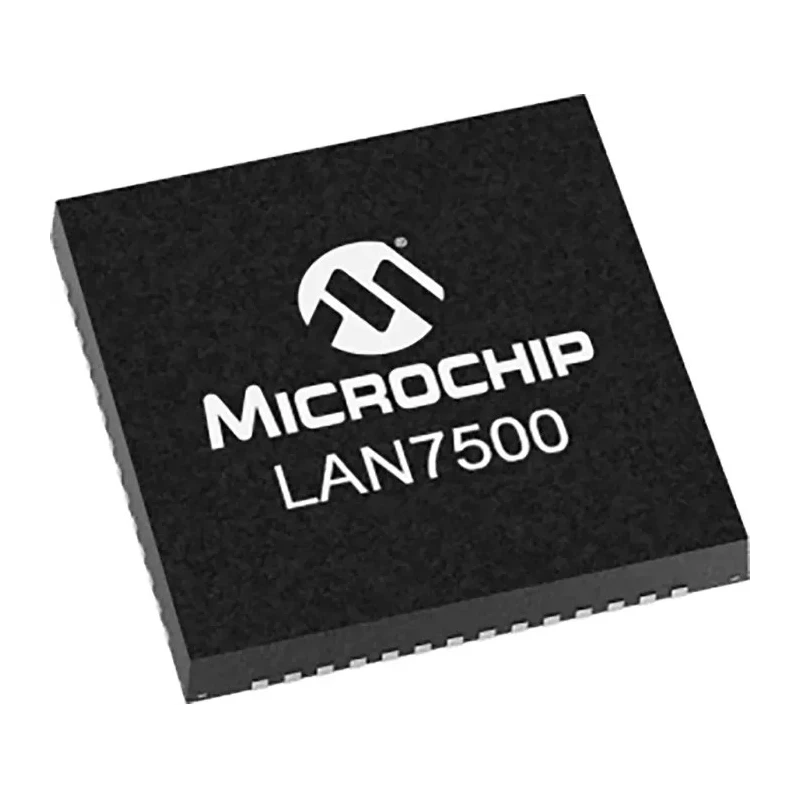

Microchip USB to Ethernet Controller 3.3 V, 1000 Mbps, Full Duplex/Half Duplex, 56-Pin QFN LAN7500I-ABZJ
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 8mm |
| Model | LAN7500I-ABZJ |
| Width | 8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | USB |
| Pin Count | 56 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 453mA |
| Maximum Data Rate | 1000Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE, IEEE 802.3u, IEEE 802.3 |
Key Features
- This controller supports Full Duplex and Half Duplex communication modes.
- Features a compact 56-Pin QFN package measuring 8mm x 8mm with a height of 1mm.
- Operates within a temperature range of -40°C to 85°C, suitable for industrial environments.
- Integrates NetDetach™ technology for reduced system power consumption.
- Supports EEPROM-less operation, minimizing bill of materials costs.
- Targets embedded systems, consumer electronics, docking stations, and USB port replicators.
- Supply current is 453mA at maximum 3.3 V supply voltage.
Product Description
Microchip LAN7500I-ABZJ is a high-performance, single-chip USB to Ethernet controller designed for seamless connectivity between USB interfaces and 10/100/1000 Gigabit Ethernet networks. Operating at 3.3 V supply voltage, this device features a 56-Pin QFN package with compact dimensions of 8mm by 8mm and a slim height of 1mm, making it ideal for space-constrained embedded and consumer electronic applications.
This controller supports both Full Duplex and Half Duplex communication modes, ensuring flexible networking capabilities. It incorporates NetDetach™ technology to minimize system power consumption during operation and supports EEPROM-less configurations, which reduce overall product cost.
Engineered to perform in industrial temperature ranges from -40°C to 85°C, the LAN7500I-ABZJ is suitable for rugged environments including industrial designs, embedded systems, docking stations, digital TVs, set-top boxes, personal video recorders, and network printers. The device’s internal loopback mode aids in system diagnostics.
With a supply current of 453mA, it interfaces via USB 2 and supports IEEE standards including IEEE 802.3u and IEEE 802.3 for Ethernet communications. Its surface-mount QFN package ensures robust mechanical mounting with reliable pin connections across its 56 pins.
This controller supports Full Duplex and Half Duplex communication modes. Integrates power-saving NetDetach™ technology. Enables EEPROM-less operation to lower BOM costs. Compact 8mm x 8mm x 1mm 56-Pin QFN packaging. Industrial operating temperature range of -40°C to 85°C.
Operates at 3.3V supply voltage with a maximum supply current of 453mA. Complies with IEEE 802.3, IEEE 802.3u Ethernet standards.
The Microchip LAN7500I-ABZJ is an excellent solution for applications requiring efficient USB to Gigabit Ethernet interfacing, including embedded systems, consumer electronics, and industrial designs. Explore the Ethernet Interface Ics category for more advanced semiconductor networking devices at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this controller is 1000 Mbps.
It has a compact 56-Pin QFN package measuring 8mm x 8mm with a height of 1mm.
The LAN7500I-ABZJ operates within a temperature range of -40°C to 85°C.
This controller supports both Full Duplex and Half Duplex communication modes.
It interfaces via USB 2.
The device operates at a maximum supply voltage of 3.3 V.
The maximum supply current is 453mA.
It complies with IEEE 802.3 and IEEE 802.3u standards for Ethernet communications.
The package type is QFN (Quad Flat No-lead).
Yes, it supports EEPROM-less operation, which helps minimize bill of materials costs.
It targets embedded systems, consumer electronics, docking stations, and USB port replicators.
The internal loopback mode aids in system diagnostics by allowing self-testing of the communication interface.
