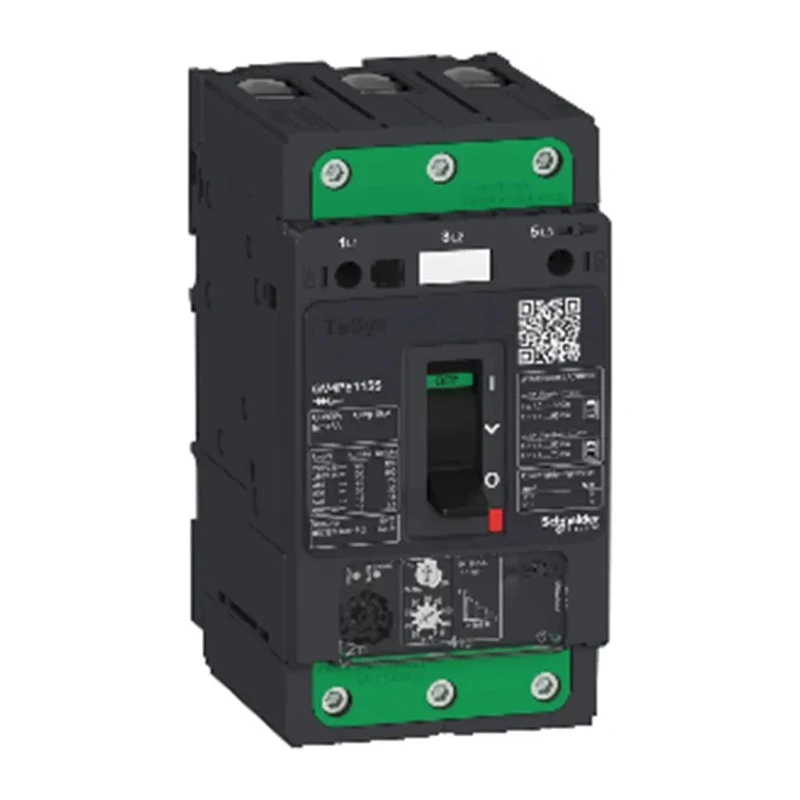

Schneider Electric TeSys GV Thermal Circuit Breaker 3-Pole 115A 690V AC Thermal Magnetic Protection GV4PE115B
Specifications
| Country of Origin | Poland |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 116mm |
| Model | GV4PE115B |
| Depth | 155mm |
| Width | 116mm |
| Mount Type | Direct |
| Current Rating | 115A |
| Series | TeSyS GV |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
| b Magnetic GV4L | to be used with an overload relay or a drive |
| b Thermal magnetic GV4P | electronic protection with wide range setting, dual class (10 & 20) |
| b Multifunction motor protection GV4PEM | GV4P with adjustable advanced protections and possibility to have |
Key Features
- Designed for motor protection with a current rating of 115A and 690V AC operation.
- Features thermal magnetic tripping mechanism providing reliable overload and short-circuit protection.
- Equipped with toggle switch reset actuator for easy operation.
- Supports direct mounting with screw terminal connections for secure installation.
- Complies with RoHS and CE standards ensuring environmental and safety compliance.
- Breaking capacity of 10kA and medium break time for dependable interruption.
- Supports motor power range 37-55kW at 400V for 3-phase motors.
- Includes adjustable thermal protection settings and selectable tripping classes 10 or 20.
Product Description
Schneider Electric GV4PE115B is a TeSys GV series Thermal Circuit Breaker designed for effective protection of three-phase motors with a current rating of 115A and rated AC voltage of 690V. It provides advanced thermal magnetic protection, combining adjustable thermal overload and magnetic short-circuit tripping mechanisms.
This 3-pole motor circuit breaker supports motors with power ratings from 37 to 55kW at 400V and features a toggle switch reset actuator with direct mounting and screw type terminals for secure connections. Its breaking capacity is 10kA, suitable for industrial and commercial electric motor applications.
The device is adjustable with thermal protection dials allowing setting range from 65A to 115A and selectable tripping classes 10 or 20. Additional protective features include short time delay (Isd), phase unbalance detection, loss protection, and ground fault monitoring, enhancing motor safety.
It supports installation of auxiliary contact blocks and voltage trip units internally, enabling expanded motor control and fault indication. The product complies with major international standards such as RoHS and CE, guaranteeing quality and environmental safety.
Manufactured in Poland, this circuit breaker is ideal for industrial, manufacturing, electrical distribution, and automation system applications requiring robust motor protection with thermal magnetic tripping.
Designed for 115A current rating and 3 poles for three-phase motors. Thermal magnetic tripping mechanism for reliable overload and short circuit protection. Toggle switch reset for user-friendly operation. Direct mount type with screw terminals for strong electrical connections.
Adjustable thermal protection current setting with selectable tripping classes. Additional protective functions: short time delay, phase unbalance, loss, and ground fault protection. Auxiliary contacts and voltage trip units can be added for extended motor control.
Complies with RoHS and CE marking standards. Breaking capacity of 10kA at 690V AC supports industrial power requirements. Manufactured in Poland ensuring quality assurance. Explore the full range of Schneider Electric motor protection and circuit breaker products on EnvMart for industrial and commercial electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TeSys GV4PE115B has a current rating of 115A.
It has a breaking capacity of 10kA at a rated AC voltage of 690V.
This circuit breaker features a thermal magnetic tripping mechanism for reliable overload and short-circuit protection.
The dimensions of this model are 116mm in height, 155mm in depth, and 116mm in width.
The rated AC voltage for the TeSys GV4PE115B is 690V.
It supports motor power ratings from 37 to 55kW at 400V for three-phase motors.
It is equipped with a toggle switch reset actuator for easy operation.
This model complies with RoHS and CE standards, ensuring environmental and safety compliance.
It supports direct mounting with screw terminal connections for secure installation.
Yes, it supports the installation of auxiliary contact blocks and voltage trip units for expanded motor control.
The thermal protection settings are adjustable from 65A to 115A.
This circuit breaker is manufactured in Poland.
