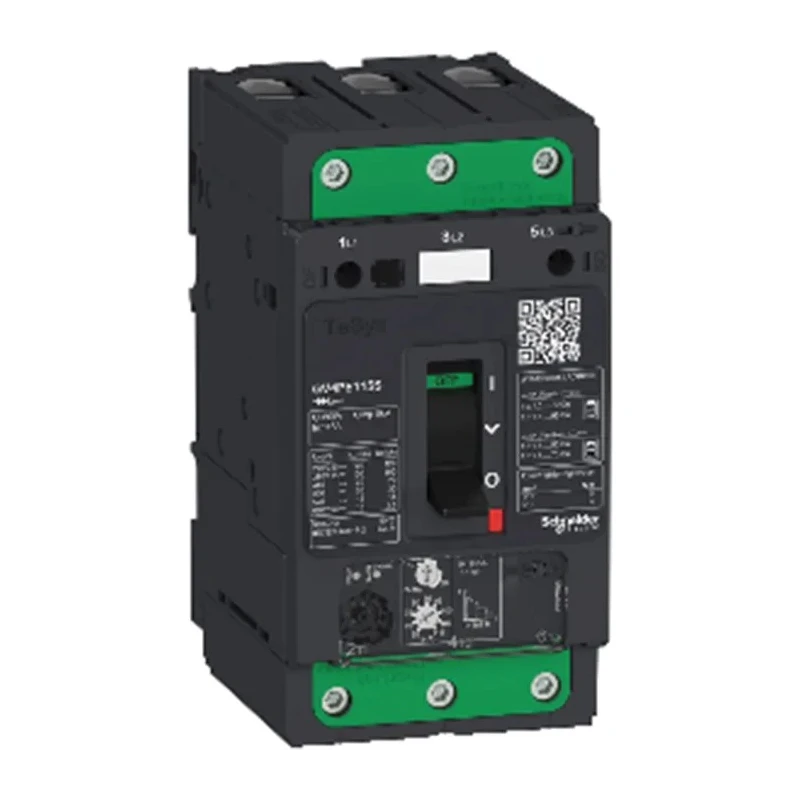

Schneider Electric TeSys GV4PE Thermal Circuit Breaker 3.5A, 3-Pole, 690V AC, Thermal Magnetic Tripping GV4PE03N
Specifications
| Country of Origin | Poland |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 116mm |
| Model | GV4PE03N |
| Depth | 155mm |
| Width | 116mm |
| Mount Type | Direct |
| Current Rating | 3.5A |
| Series | GV4PE |
| Terminal type | Screw |
| Breaking Capacity | 8kA |
| Number of Poles | 3 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
| b Magnetic GV4L | to be used with an overload relay or a drive |
| b Thermal magnetic GV4P | electronic protection with wide range setting, dual class (10 & 20) |
| b Multifunction motor protection GV4PEM | GV4P with adjustable advanced protections and possibility to have |
Key Features
- Provides thermal magnetic tripping mechanism for sensitive and accurate protection.
- Rated AC voltage of 690V suitable for industrial motor applications.
- Breaking capacity of 8kA and medium break time for safe fault interruption.
- Equipped with toggle switch reset actuator for easy manual operation.
- Compact dimensions of 116mm width, 116mm height, and 155mm depth.
- Direct mount type with screw terminal connection ensures secure installation.
- Complies with CE and RoHS standards for safety and environmental compliance.
- Designed for 3-phase motors with power range 0.55-1.5kW at 400V.
Product Description
Schneider Electric GV4PE03N Thermal Circuit Breaker is a 3.5A rated, 3-pole motor circuit breaker designed for efficient protection of 3-phase motors in industrial and commercial environments. It supports motors in the 0.55 to 1.5 kW range at 400 V, offering thermal magnetic protection with adjustable thermal protection dials and selectable tripping classes 10 or 20.
This device features a breaking capacity of 8 kA with a medium-breaking time, ensuring reliable interrupting of fault currents up to 50 kA at 400 V. Reset is facilitated by a toggle switch actuator, and connection is simplified via Everlink BTR screw terminals, enhancing installation convenience.
The breaker includes advanced protection functions such as thermal protection adjustable by dials, magnetic protection at 17 In, short-time delay protection, phase unbalance protection, loss protection, and ground fault detection.
Its compact form factor of 116 mm width, 116 mm height, and 155 mm depth allows space-efficient installations. This Thermal Circuit Breaker is compliant with international standards including CE and RoHS, and is manufactured in Poland for assured quality.
Additional auxiliary functions are supported through internal locations for auxiliary contact blocks (OF, SD) and voltage trip units (MN, MX), allowing enhanced control and alarm integration.
Ideal for electrical automation, manufacturing industries, HVAC systems, and other industrial applications requiring robust motor protection. Thermal magnetic tripping mechanism provides sensitive motor protection. Compact 3-pole design suitable for 3-phase motor circuits.
Adjustable thermal protection current range from 1.4 to 3.5 A. Breaking capacity of 8 kA with rated voltage of 690 V AC. Toggle switch actuator allows easy reset and control. Supports additional external auxiliary contacts and trip units.
Meets CE and RoHS compliant standards for safety and environmental considerations. Manufactured in Poland, ensuring high quality and reliability. Explore more Schneider Electric products and thermal breakers at EnvMart for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GV4PE03N thermal circuit breaker has a current rating of 3.5A.
It has a breaking capacity of 8kA, suitable for interrupting fault currents effectively.
This thermal circuit breaker is rated for 690V AC, making it suitable for industrial applications.
Thermal protection can be adjusted using dials on the device, allowing for customization based on specific needs.
It employs a thermal magnetic tripping mechanism for sensitive and accurate protection.
The dimensions are 116mm in width, 116mm in height, and 155mm in depth.
It features a direct mount type, ensuring secure installation via screw terminal connections.
The GV4PE03N complies with CE and RoHS standards for safety and environmental compliance.
This model is designed for protecting 3-phase motors in industrial and commercial environments, supporting motors in the 0.55 to 1.5 kW range at 400V.
It includes a toggle switch reset actuator for easy manual operation.
Yes, it supports additional auxiliary functions through internal locations for auxiliary contact blocks and voltage trip units.
This thermal circuit breaker is manufactured in Poland, ensuring quality and reliability.
