RS PRO Handheld Digital Multimeter 100mΩ Resistance Resolution 1kV DC Voltage 40MHz Frequency IDM103N

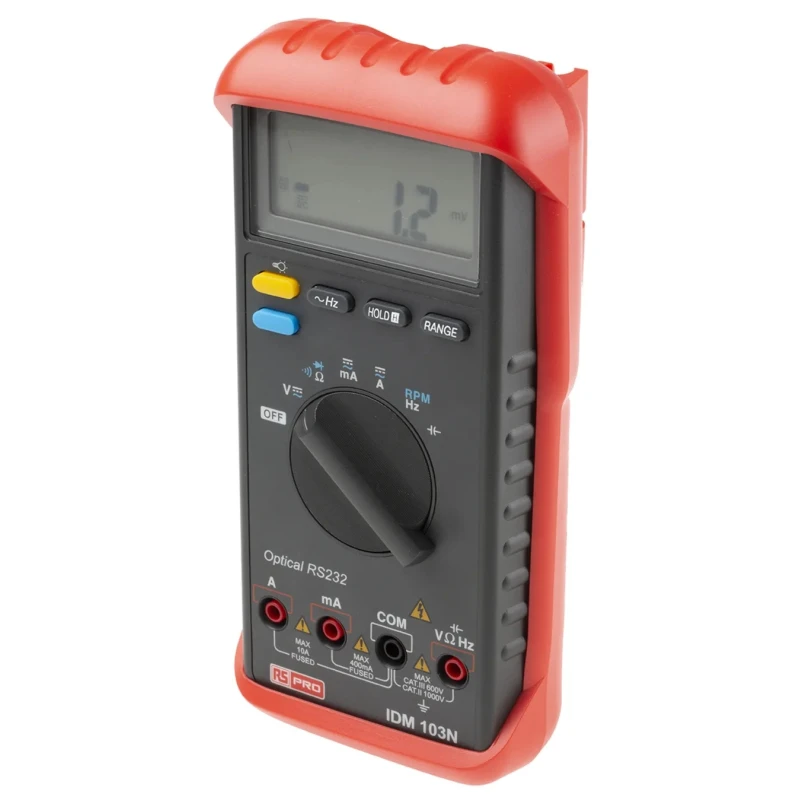

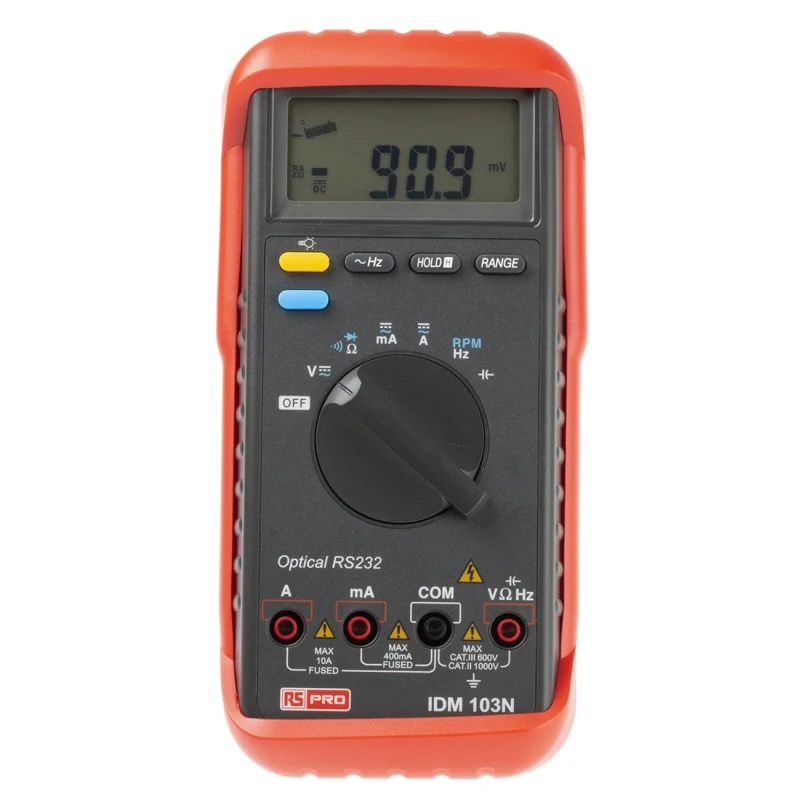

The RS PRO IDM103N handheld digital multimeter is a versatile measuring instrument capable of precise measurements of AC and DC voltages up to 1kV, currents up to 10A continuous range, resistances, frequency, and capacitance. Designed for electrical, industrial, and laboratory test applications, this multimeter features a high-resolution 4000 count LCD and an additional 42 segment bar graph for detailed readouts.

This device includes functions for AC and DC current and voltage, frequency measurements up to 40MHz, and a resistance resolution of 100mΩ. It is suitable for electrical maintenance, fault finding, and quality control environments where reliable data is required.

The multimeter features a dust and water-resistant O-Ring sealed enclosure rated at IP64, offering protection against challenging worksite conditions. Additional user convenience is demonstrated through data hold and relative measurement modes, diode and continuity tests including sounder, and a 1 MHz frequency counter with full 9999 count display.

Safety is a priority with protection ratings of CAT II and CAT III for operation up to 1kV plus dual high energy fuse protection for 400mA and 10A fused ranges. It runs on easily replaceable AAA 1.5V batteries that offer approximately 500 hours of usage. The unit also offers an RS-232 optical interface for PC connectivity enabling data logging and further analysis.

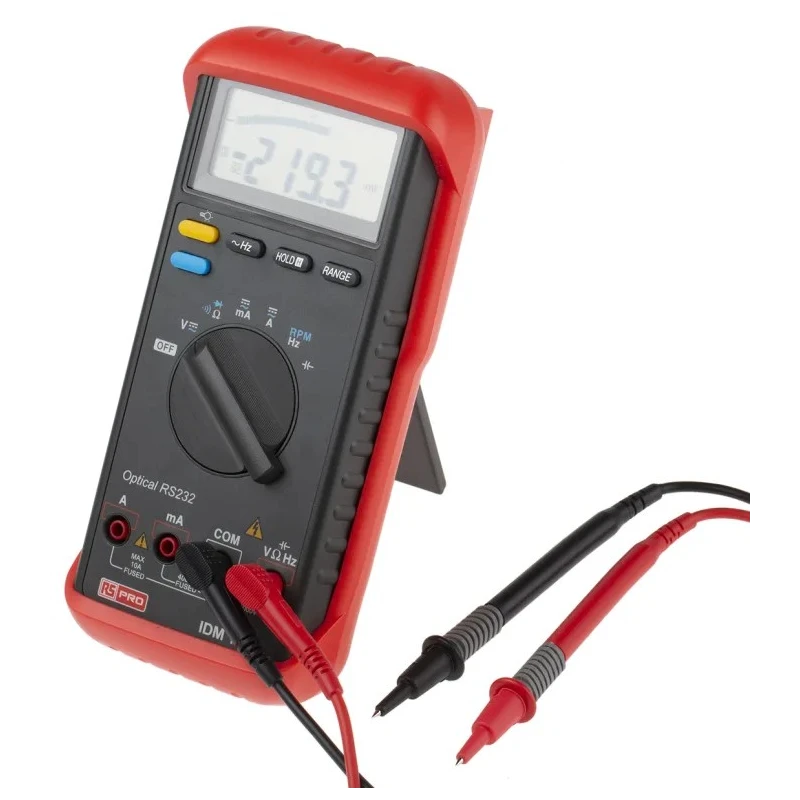

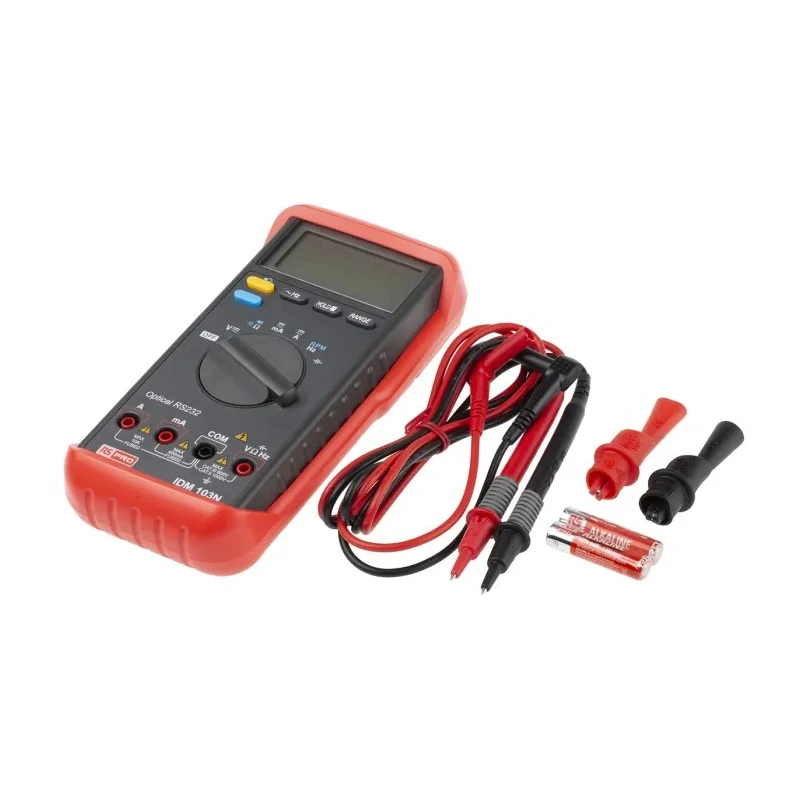

Included accessories are a pair of test leads, test clips, a user manual, and a protective holster that doubles as a convenient stand and test lead storage solution. The compact size with dimensions of 212mm height, 100mm length, and 55mm width, combined with a weight of 620g, make this multimeter portable and easy to handle.

Typical applications include electrical installation testing, industrial equipment maintenance, HVAC, and laboratory testing, providing reliable and multifunctional measurement capabilities suitable across various sectors.

RS PRO tools and instruments are known for combining affordability with professional quality standards, making the IDM103N a trusted instrument in its category. Explore more digital multimeters and measuring instruments at EnvMart for your specific testing needs.

This multimeter features both AC and DC voltage and current measurement capabilities. The device includes a high-resolution LCD display with a 4000 count readout and 42-segment bar graph for clear readings. Functions measured include AC current, AC voltage, DC current, DC voltage, frequency, and resistance.

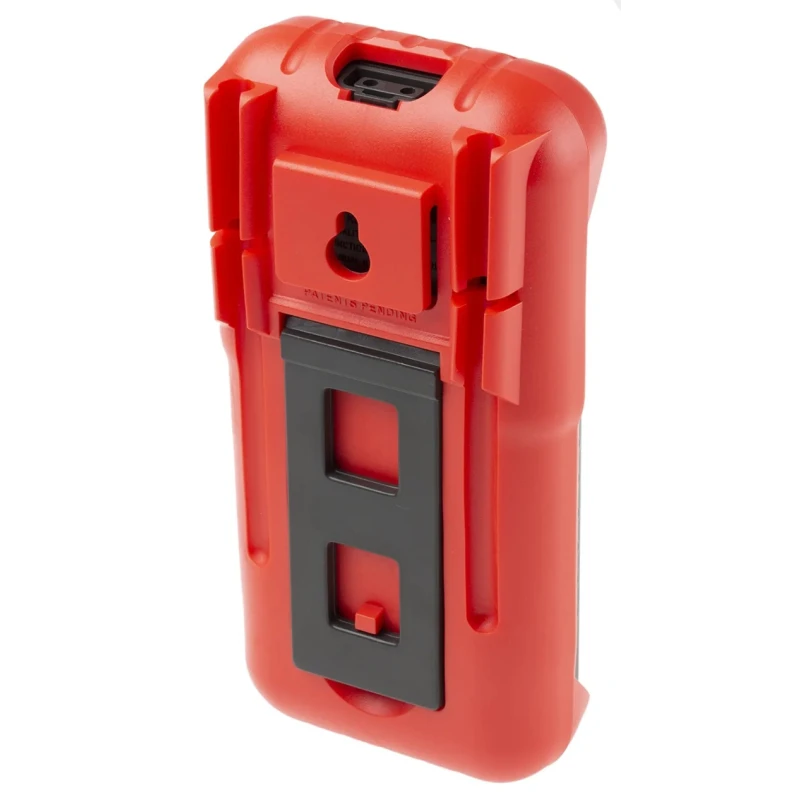

Equipped with a protective holster with a built-in stand, nail hook, and test lead storage for enhanced durability. It supports data hold, relative modes, diode test, and continuity sounder for versatile testing requirements.

Auto power shutdown prolongs battery life with a 500-hour runtime on AAA batteries. RS-232 optical interface enables PC data acquisition for advanced analysis. This meter is water-resistant with an O-Ring sealed case and dust protection to IP64.

Safety categories include CAT II and CAT III rated for 1kV operation voltage. Operating temperature range is 0°C to 50°C ensuring reliable performance in varied environments. Browse more professional measuring instruments and digital Multimeters at EnvMart to find the right tool for your industrial or laboratory projects.
