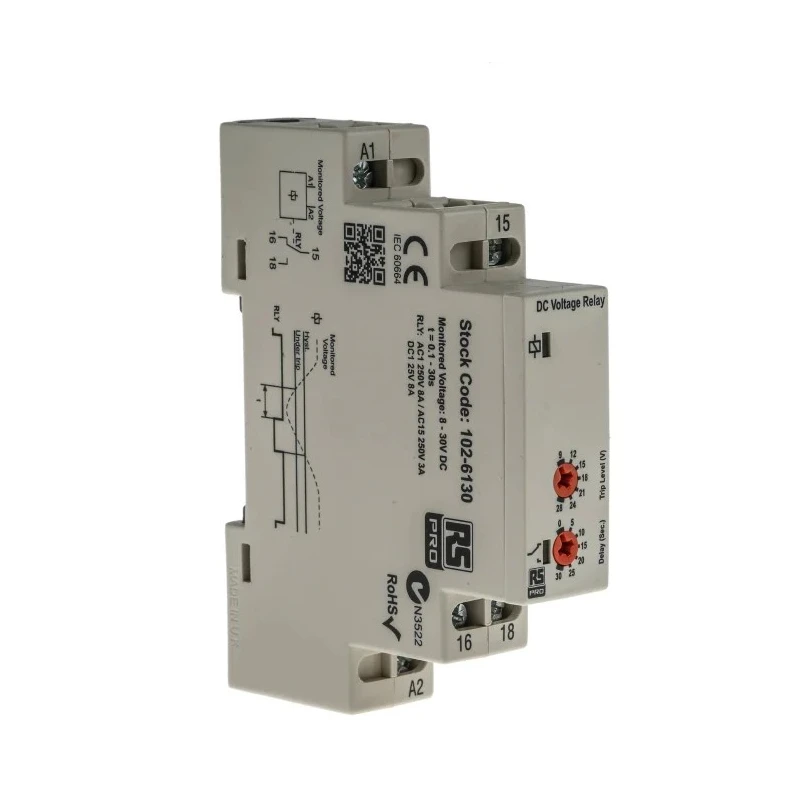

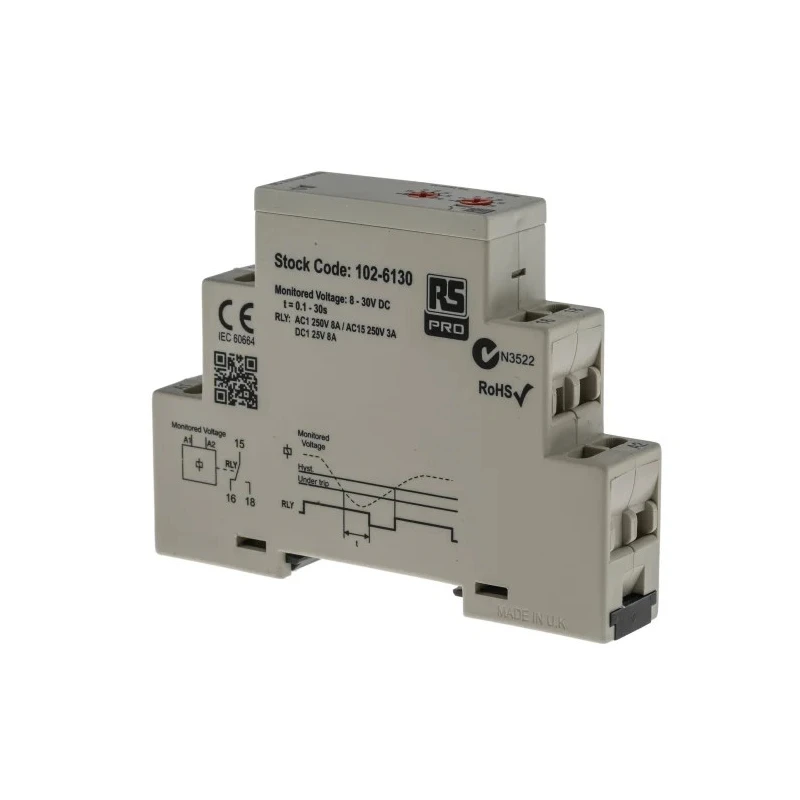

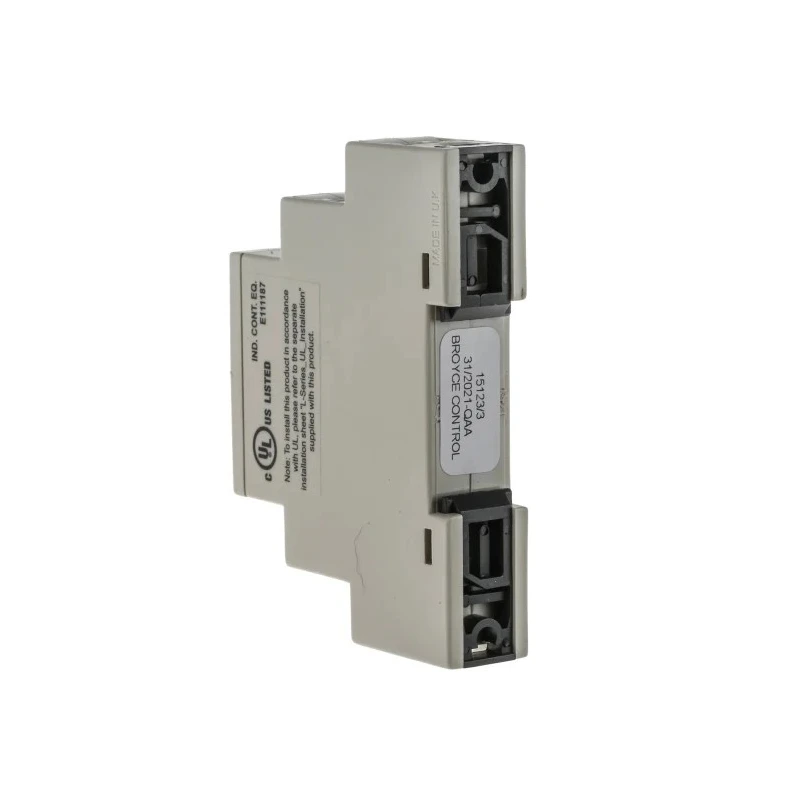

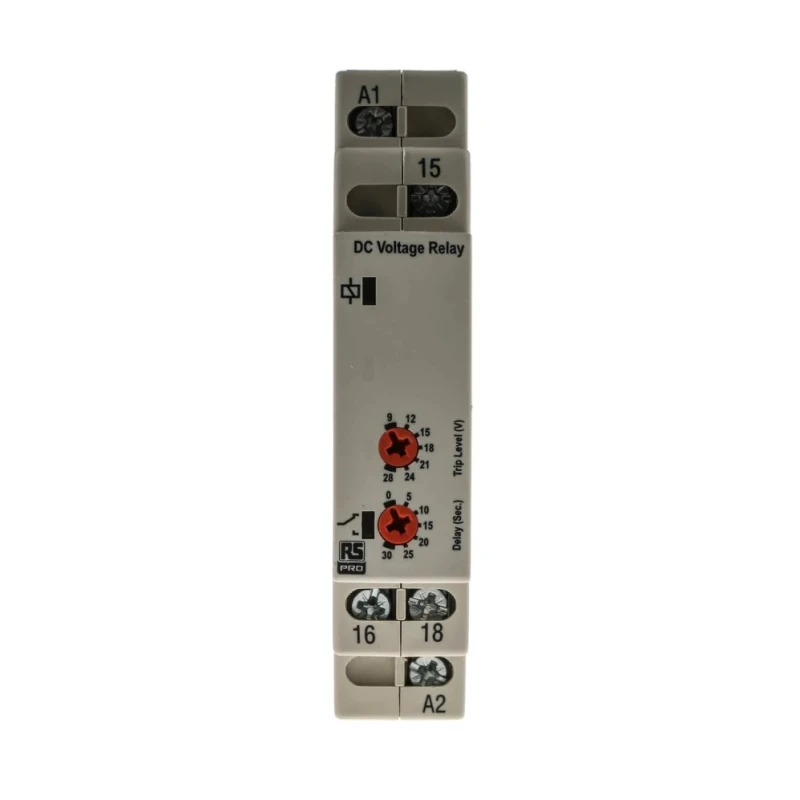

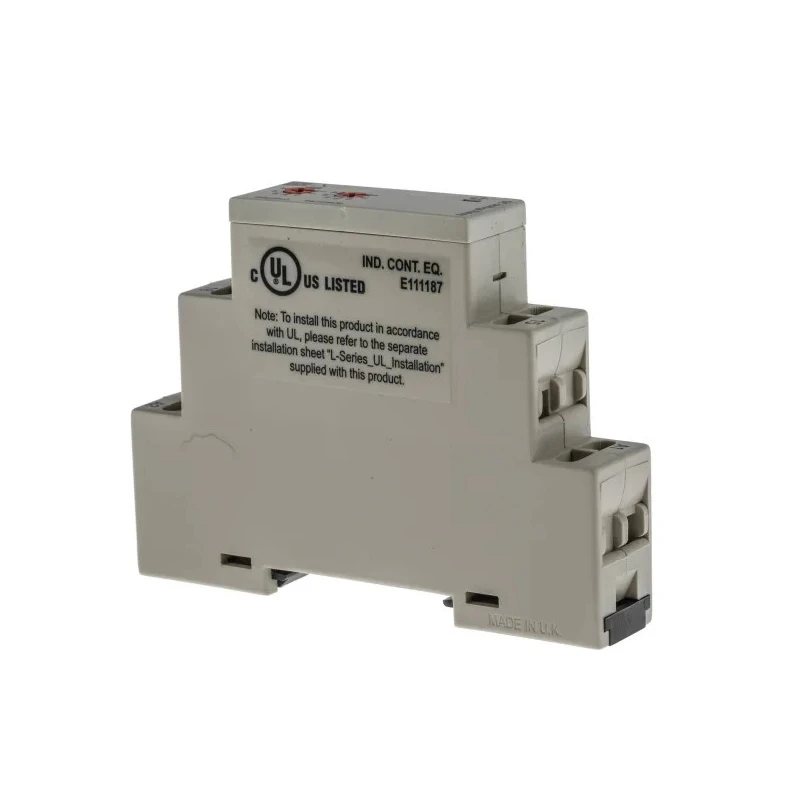

RS PRO Monitoring Relay 1 Phase SPDT DIN Rail Mount 24 V dc 3W Power Consumption 102-6130
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Power Consumption | 3W |
| Brand | RS PRO |
| Height | 89mm |
| Length | 66.5mm |
| Model | 102-6130 |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | RS PRO |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, UL, CE, IEC, EMC EN 61000-6 |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
Key Features
- This relay monitors undervoltage to protect motors and equipment from damage.
- Microprocessor-based for programmable, reliable, and efficient operation.
- Offers a voltage trip range of 9 V DC to 28 V DC suitable for 12 V to 24 V batteries.
- Compact orange UL94 flame-retardant casing with simple wiring.
- Time delay adjustable from 0 to 30 seconds for flexible control.
- One pole screw-type terminals ensure secure electrical connections.
- Operating temperature range from -20°C to +60°C supports diverse environments.
- Conforms to CE, EMC EN 61000-6, IEC standards and is UL and RoHS compliant.
Product Description
RS PRO 102-6130 Monitoring Relay is a high-quality, microprocessor-controlled device designed to monitor voltage levels in electrical systems, specifically protecting motors and equipment from undervoltage conditions. Featuring a 1 Phase configuration with a single pole double throw (SPDT) contact type, this relay mounts easily on DIN rails, making it compatible with standard electrical panel designs.
Operating at a 24 V DC supply and consuming just 3 watts of power, this monitoring relay senses voltages ranging between 9 V DC to 28 V DC, ideal for battery systems from 12 V to 24 V. It offers a time delay adjustable between 0 to 30 seconds, ensuring precise and programmable control appropriate for large systems and backup protection applications.
The housing is constructed using UL94 flame-retardant orange casing material that complies with rigorous European safety and environmental standards including RoHS, CE, UL, IEC, and EMC EN 61000-6. The relay is equipped with one pole screw-type terminals and supports an operating temperature range of -20°C to +60°C, making it suitable for industrial, manufacturing, HVAC, and electrical automation installations.
Voltage monitoring multi timer with DIN rail mount for easy installation. Programmable and efficient microprocessor-based control system. Undervoltage protection with a voltage sensitivity designed for reliability. Robust and flame-retardant casing ensures operational safety.
Compliance with major international standards guarantees quality. Compact dimensions of 17.5 mm x 66.5 mm x 89 mm allow space-saving setups. Ideal for industrial automation, electrical panels, and motors protection.
This RS PRO relay offers engineers and maintenance professionals a dependable solution for monitoring undervoltage conditions in electrically powered systems. Its compact design and compliance with multiple standards make it extensively applicable in industrial and commercial electrical equipment setups. Browse the Electronics & Electricals category at EnvMart for additional RS PRO Monitoring Relays and complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage trip range of this relay is from 9 V DC to 28 V DC, making it suitable for 12 V to 24 V battery systems.
This model consumes 3 watts of power during operation.
It is equipped with one pole screw-type terminals for secure electrical connections.
The operating temperature range is from -20°C to +60°C, allowing it to function in diverse environments.
This relay is designed for DIN rail mounting, which simplifies installation in standard electrical panels.
The dimensions are 89 mm in height, 66.5 mm in length, and 17.5 mm in width.
It conforms to RoHS, UL, CE, IEC, and EMC EN 61000-6 standards.
The contact configuration is single pole double throw (SPDT).
The maximum contact current for this unit is 8A.
This model is suitable for industrial automation, electrical panels, and motor protection applications.
Yes, it features an adjustable time delay from 0 to 30 seconds for flexible control.
The country of origin for this monitoring relay is the United Kingdom.
