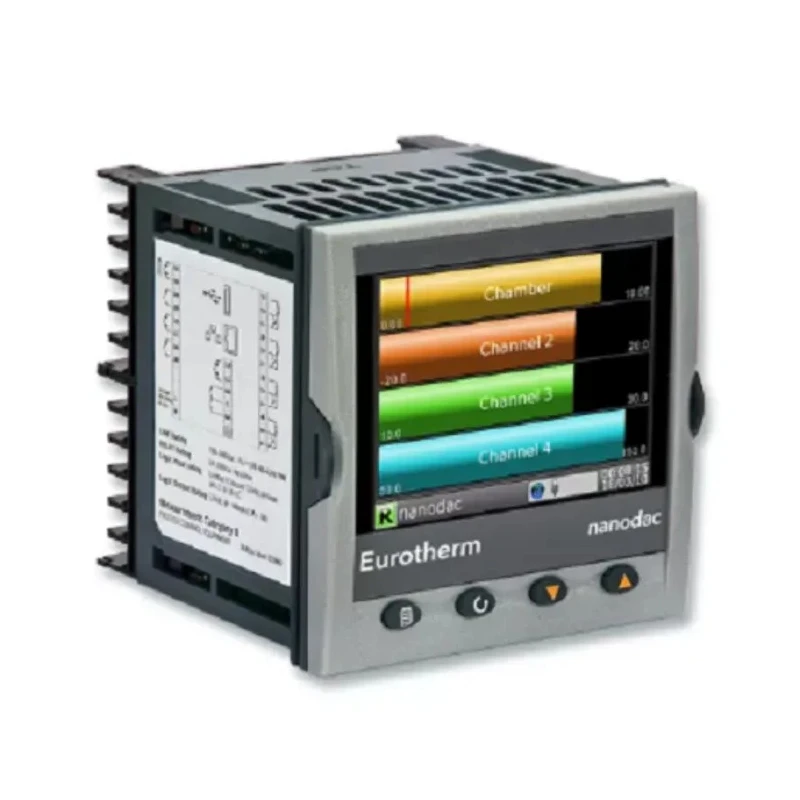

Eurotherm 3-Channel Graphical Graphic Recorder Resistance Voltage Current Temperature Millivolt NANODAC/VL/X/X/LRR/TS/WD

Eurotherm NANODAC/VL/X/X/LRR/TS/WD is a 3-channel graphical graphic recorder designed to precisely measure resistance, voltage, current, temperature, and millivolt signals. It offers a versatile and highly accurate solution for process monitoring and data acquisition in industrial applications. This device supports a 24V AC (+10% - 15%) at 48-62Hz or 24V DC (+20% - 15%) power supply, ensuring compatibility with standard industrial power installations.

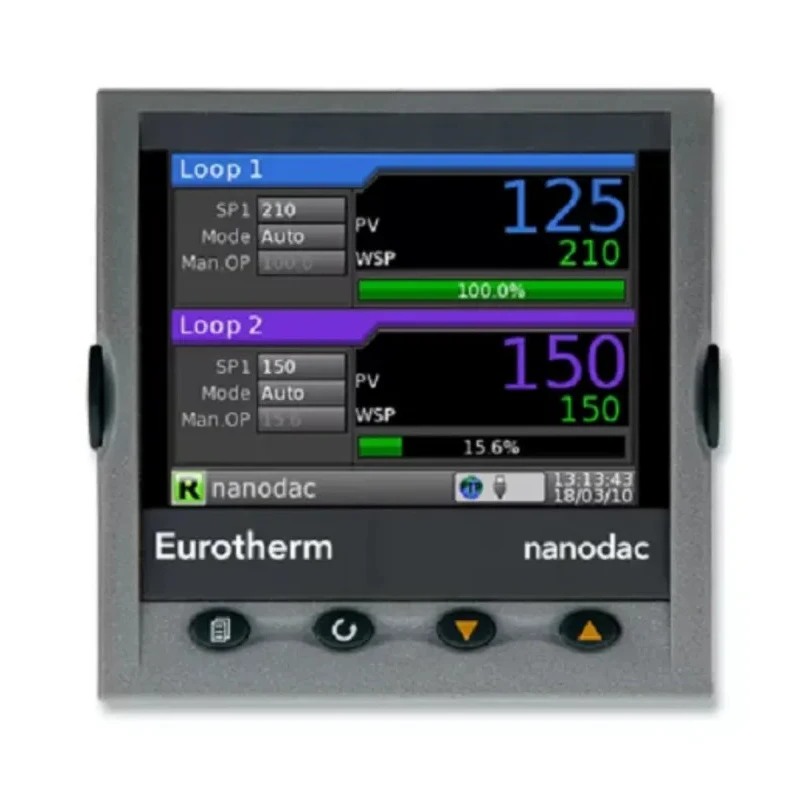

The integrated 3.5-inch colour TFT display provides sharp visualization of process parameters with multiple configurable views such as horizontal and vertical trends, numeric readouts, bar graphs, alarm status panels, and control loops. This flexibility allows operators to tailor the display output according to specific monitoring requirements.

Eurotherm's nanodac recorder features tamper-resistant data recording trusted by auditors, enhancing data integrity for compliance and quality control. The recorder supports USB removable data storage with a 50 MB capacity and delivers high-speed sampling at 8Hz (125 ms intervals), preserving detailed process information.

Additional features include Modbus TCP/IP slave communication protocol for integration with industrial control systems, multi-language support, and a wash down front bezel design for durability in challenging environments. The compact dimensions (96 mm height, 90 mm width, 96 mm length) and lightweight (440 g) form factor facilitate easy installation in control panels and instrumentation racks.

The instrument conforms to multiple international standards including UL, CE, BS EN 61326, and EU directives, ensuring reliability and safety for a variety of industrial, laboratory, manufacturing, and process control applications.

Equipped with 3 universal input channels to measure multiple parameters simultaneously. Features a 3.5 inch colour TFT display for clear visualization of process data. Includes USB removable data storage with 50 MB memory capacity.

Supports 24V AC/DC power supply with tolerance ranges for flexible installation. Offers multiple configurable display views including trends, numeric, bar graphs and alarm panels. Enables Modbus TCP/IP slave communication for seamless integration in industrial networks.

High accuracy inputs with 0.05 °C resolution and tamper resistant data recording. Compact dimensions of 96 x 90 x 96 mm and lightweight design at 440 g. Robust construction with wash down front bezel for improved durability in harsh environments.

This Eurotherm graphical recorder is ideal for industrial machines, manufacturing plants, laboratory testing, HVAC systems, water treatment facilities, and other environments requiring precise data acquisition and visualization of electrical and temperature parameters. Explore more chart and data logging instruments in the EnvMart catalog.
