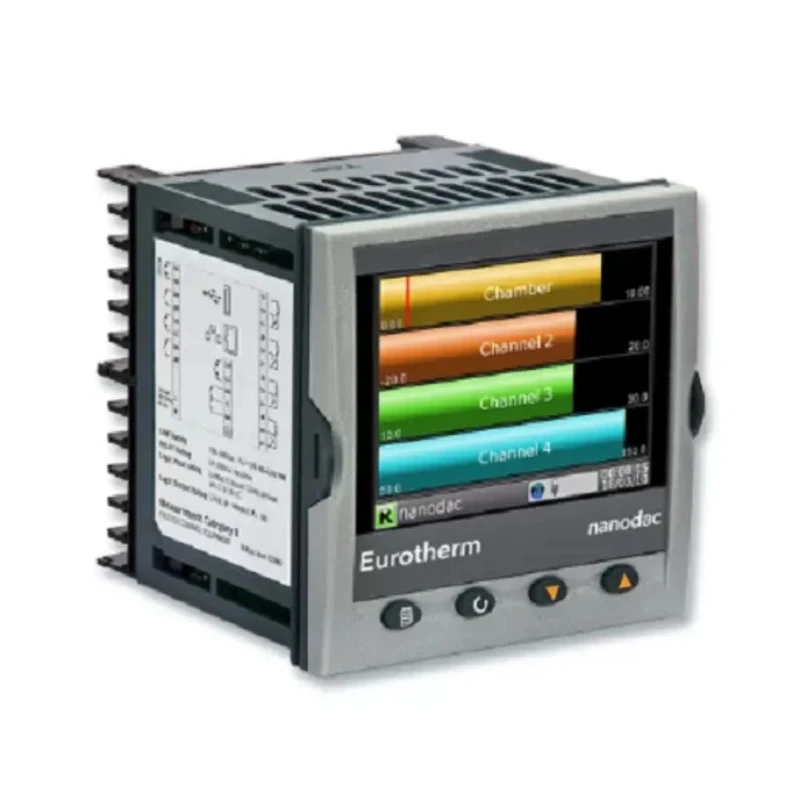

Eurotherm 3-Channel Graphical Graphic Recorder Voltage Resistance Current Millivolt Temperature NANODAC/VL/X/X/LRR/B

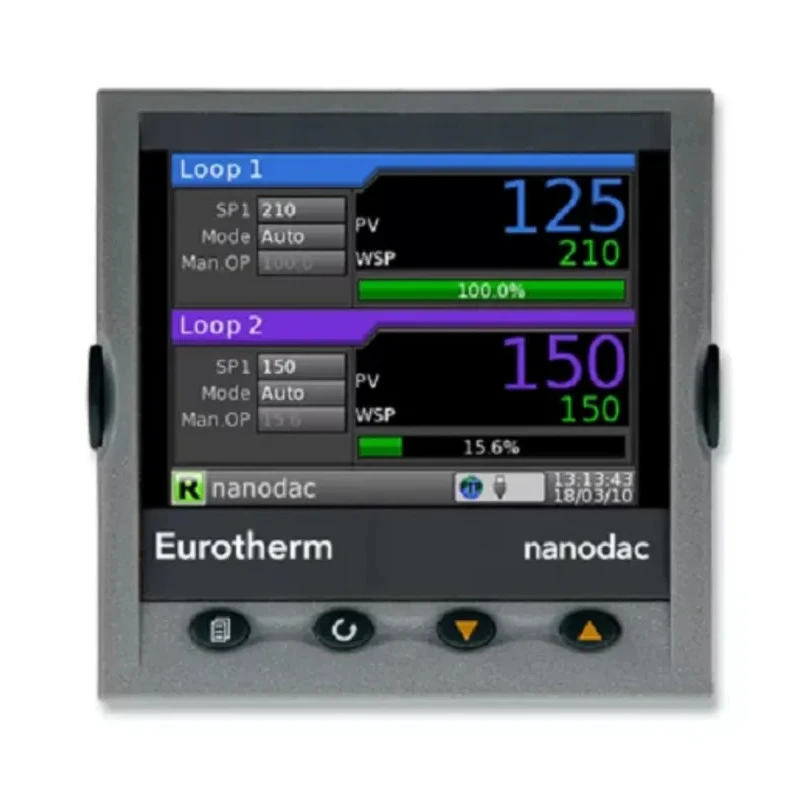

Eurotherm NANODAC/VL/X/X/LRR/B is a high-performance 3-channel graphical graphic recorder designed for precise measurement of voltage, resistance, current, millivolt, and temperature parameters. Its 3.5 inch TFT display offers an exceptionally clear visualization of process data with wide configuration flexibility, including horizontal and vertical trends, bar graphs, numeric panels, alarm displays, and control loops, making it suitable for a range of industrial, laboratory, HVAC, manufacturing, and water treatment applications.

This product features tamper-resistant data recording methodology that ensures data integrity and compliance with auditing standards. Operational convenience is enhanced by four dedicated navigation push buttons - Page, Scroll, Lower, and Raise - enabling intuitive device interaction. The USB removable data storage facility simplifies data transport and analysis outside the system environment.

Equipped with high-accuracy universal inputs, this recorder achieves a remarkable temperature resolution of 0.05 °C and supports an 8Hz (125 ms) sample data recording rate allowing for fine-grained monitoring. The compact and lightweight form factor with dimensions of 96 mm height, 90 mm width, and 96 mm length, and a gross weight of approximately 440 grams, makes it suitable for installations with space constraints.

It operates on 24V AC (±10% to -15%) at 48-62 Hz or 24V DC (±20% to -15%) and provides options for one logic output and two relay outputs, enhancing its integration capabilities into existing control systems. The device conforms to international standards including UL, CE, BS EN 61326, and EU directives, ensuring safety and reliability.

This Eurotherm graphical recorder is manufactured in Poland, ensuring high-quality production standards. Equipped with a 3.5 inch TFT colour display for clear visualization of process parameters. Supports multiple configurable views including horizontal and vertical trends, bar graphs, numeric displays, alarms, and control loops.

Offers tamper-resistant data recording methodology trusted by auditors. Includes four navigation push buttons for easy operation. Features USB removable data storage for convenient data transfer. Provides high accuracy universal inputs and 0.05 °C resolution for temperature measurements.

Supports sample data recording rate of 8Hz (125 ms). Complies with UL, CE, BS EN 61326, and EU standards. Compact and lightweight design with dimensions 96mm x 90mm x 96mm and weight of 440g. Explore more industrial measurement instruments and Chart Recorders at EnvMart for reliable and advanced data acquisition solutions.
