Eurotherm 3-Channel Graphical Graphic Recorder Temperature, Millivolt, Resistance, Current, Voltage NANODAC/VL/X/X/LRR

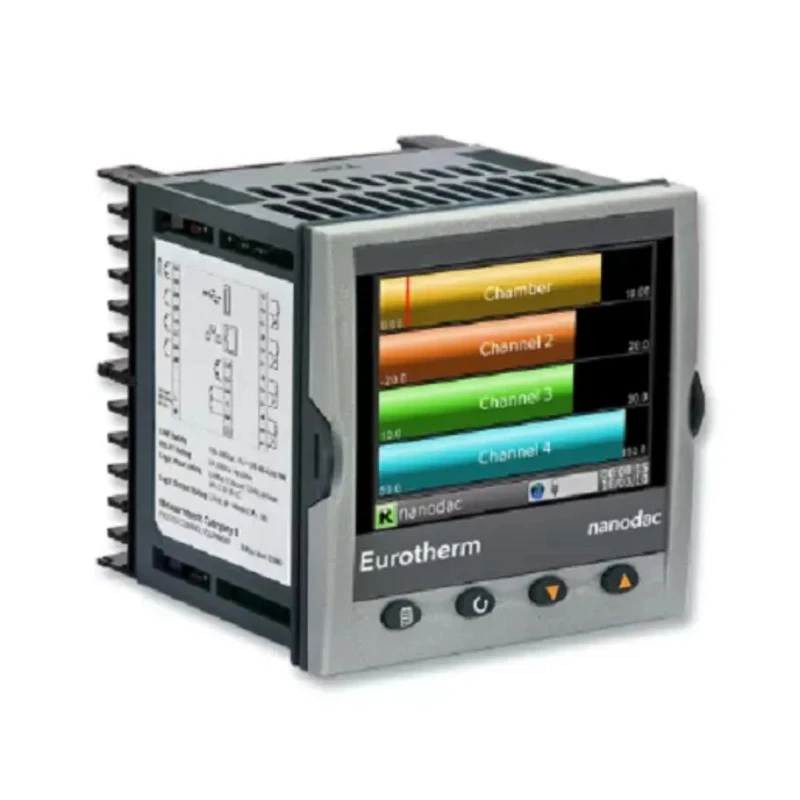

Eurotherm NANODAC/VL/X/X/LRR is a 3-Channel Graphical Graphic Recorder designed for accurate measurement and logging of temperature, millivolt, resistance, current, and voltage signals. Featuring a compact form factor with dimensions 96 mm length, 90 mm width, and 96 mm height, it weighs approximately 440 grams, making it suitable for industrial and laboratory environments.

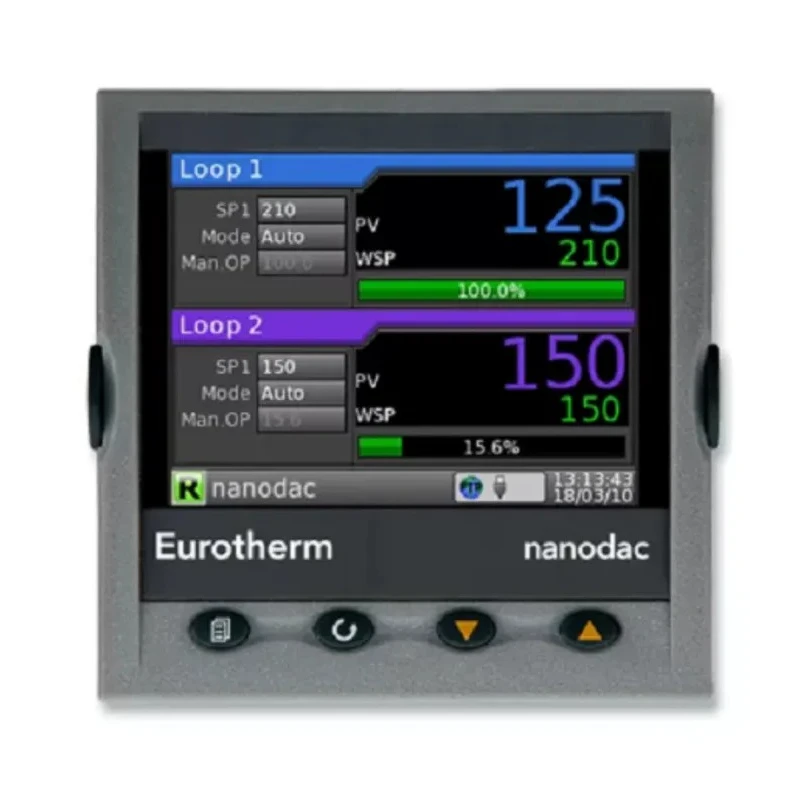

This recorder employs high accuracy universal inputs capable of handling various measurement parameters essential in industrial process monitoring, HVAC systems, water treatment plants, and manufacturing facilities. The integrated 3.5 inch color TFT (320x240 pixels) display offers clear visual representation of process parameters with configurable views such as horizontal and vertical trends, bar graphs, numeric data, alarm panel, alarm status, and control loops.

It operates on 24V AC (+10% -15%) at 48-62Hz or 24V DC (+20% -15%) power supply options without requiring a separate controller or programmer. The device includes one logic output and two relay output options to enable flexible control and alarm signaling.

The recorder supports tamper-resistant data recording methods trusted by auditors and features four navigation push buttons (Page, Scroll, Lower, Raise) for easy user interface interaction. Data export is facilitated by a USB removable storage facility, enabling quick and secure transfer of logged data.

Recording at a high sample rate of 8Hz (125ms intervals), the device ensures detailed and precise data acquisition. Multi-language support enhances usability across diverse operators and regions.

This product complies with recognized safety and electromagnetic compatibility standards including BS EN 61326, EU directives, CE marking, and UL certification, assuring dependable and safe operation in industrial settings.

Overall, the Eurotherm NANODAC/VL/X/X/LRR is a reliable and compact graphical recording solution tailored for multiple parameters, suited for applications in industrial automation, laboratory testing, HVAC monitoring, and manufacturing quality control.

Features high accuracy universal inputs for diverse measurement types. Equipped with a 3.5 inch color TFT display offering clear visualization and multiple configurable views. Supports tamper-resistant data recording trusted in auditing environments.

Includes four navigation push buttons for intuitive operation. Offers USB removable data storage for easy export of recorded data. Provides a fast 8Hz sample data recording rate for detailed monitoring. Supports multi-language interfaces to accommodate global users.

Compact design suited for various industrial applications. Complies with BS EN 61326, EU, CE, and UL standards ensuring reliability and safety. Explore EnvMart's extensive range of industrial Chart Recorders for enhanced data acquisition and process analysis.
