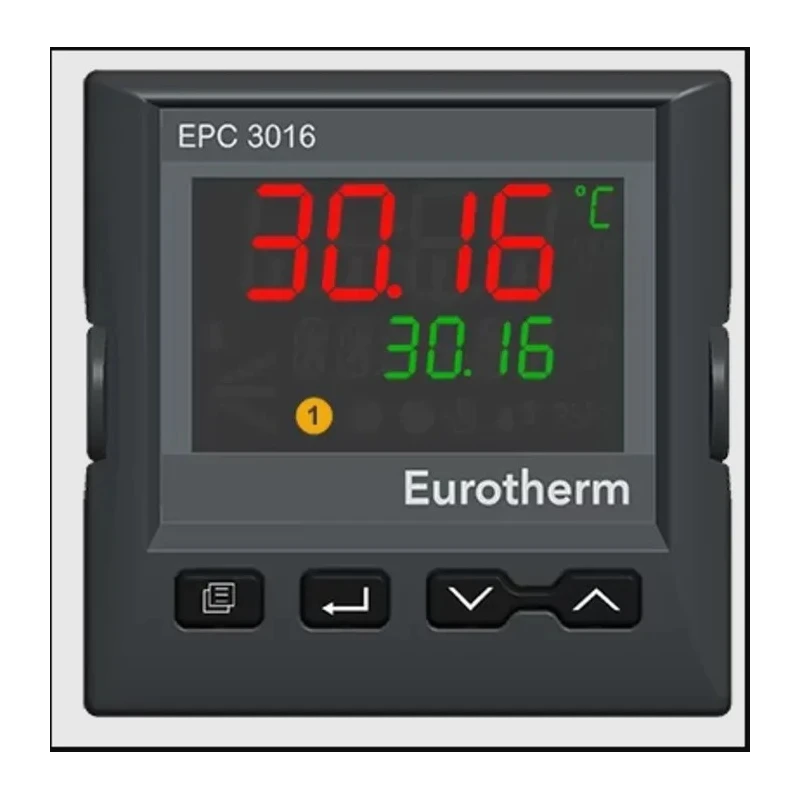

Eurotherm Panel Mount PID Controller 1 Input DC 1 Relay 230V ac EPC3016

Eurotherm EPC3016 Panel Mount PID Controller is a high-performance, programmable single loop controller designed for precise thermal process control in industrial and manufacturing environments. This model features one DC input and one relay output, running on a 230V ac supply, making it suitable for a wide range of process control applications requiring accurate and repeatable temperature regulation.

Designed with a robust panel mount form factor and an IP65 rating, the EPC3016 is well protected against dust and water ingress, making it ideal for harsh industrial settings. The controller incorporates advanced PID control algorithms with cutback function to minimize overshoot and improve response times, thus optimizing production yield and process stability.

Equipped with native fast Ethernet featuring an RJ45 connector, the controller seamlessly integrates with modern Industry 4.0 and Industrial Internet of Things (IIoT) systems, supporting Modbus, Ethernet/IP, and BACNet protocols for flexible network communication. Its interfaces enable remote monitoring and control, enhancing automation capabilities in digitalized manufacturing and process industries.

The inputs support thermocouple, current, and voltage signals, allowing for versatile sensor compatibility for temperature and other process measurements. The controller’s LCD display provides clear status information and configuration details, while screw terminals provide straightforward and secure wiring connections.

Operating reliably within a temperature range of 0°C to 55°C, the EPC3016 meets stringent aerospace regulatory accuracy requirements, making it suitable for critical temperature control applications. Compliance with the RoHS directive ensures environmentally friendly and sustainable product standards.

Physical dimensions include a length of 101 mm, width of 48 mm, and panel depth of 90 mm, making it compact for space-saving installation in existing control panels and assemblies. The product is manufactured in Poland, maintaining high European quality and reliability standards.

Applications for the Eurotherm EPC3016 include industrial automation, manufacturing process control, HVAC systems, laboratory instrumentation, and any environment requiring precise and reliable temperature regulation and monitoring.

Equipped with a high-precision PID control for accurate temperature regulation. Single input supports thermocouple, current, and voltage signals for flexible sensing. Panel mount design with IP65 rating ensures robust protection in industrial environments.

Features an easy-to-read LCD display with screw terminal connections for reliable installation. Supports native Ethernet with RJ45 for Industry 4.0 and IIoT connectivity. Operating temperature range from 0°C to 55°C for versatile application conditions.

Complies with RoHS standards ensuring environmental safety. Compact size: 101mm length, 48mm width, and 90mm panel depth for space-efficient mounting. Explore more advanced Temperature Controllers and process automation solutions from top manufacturers on EnvMart.
