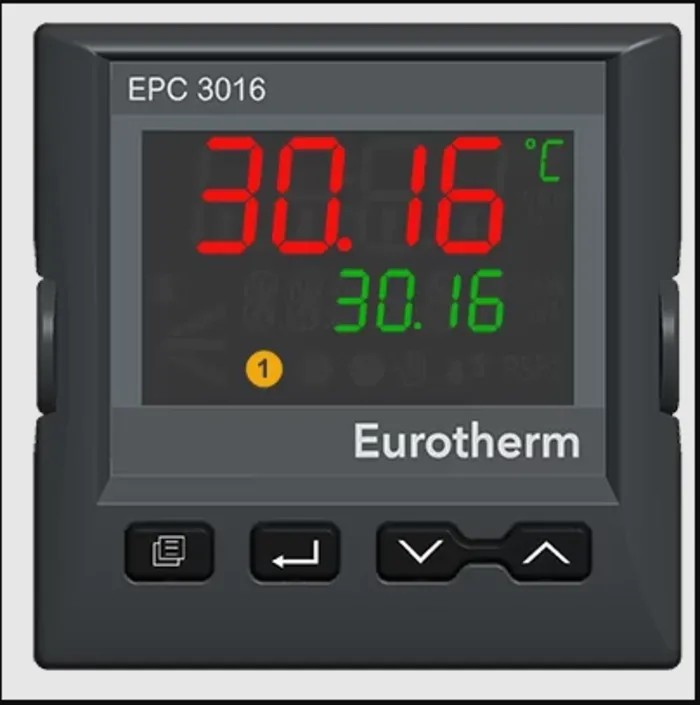

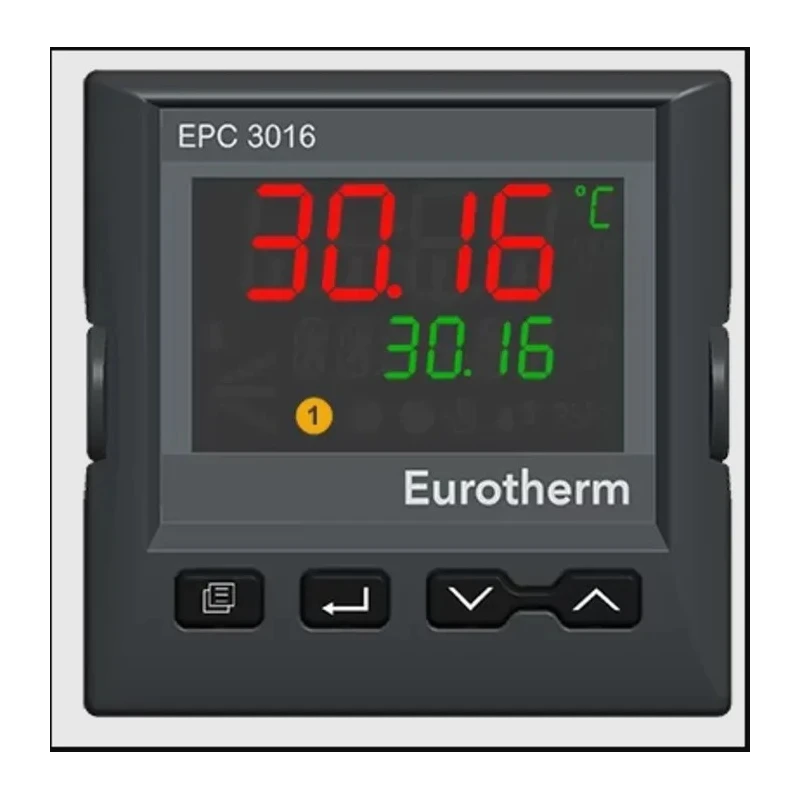

Eurotherm Panel Mount PID Controller 1 Input DC, 1 Relay, LCD Display 230V AC EPC3016
Specifications
| Country of Origin | Poland |
|---|---|
| Display Type | LCD |
| Brand | Eurotherm |
| Length | 101mm |
| Model | EPC3016 |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Panel Mount |
| Number of inputs | 1 |
| Output type | DC, 1 Relay |
| Series | EPC3016 |
| Input Type | Voltage, Thermocouple, Current |
| Maximum Operating Temperature | 55°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet with RJ45 connector for IIoT and Industry 4 |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 230V ac |
| Panel Depth | 90mm |
Key Features
- Equipped with a high-visibility LCD display for clear monitoring.
- Supports voltage, thermocouple, and current input types.
- IP65 rated enclosure ensures robust protection in harsh environments.
- Mountable on panel with compact dimensions of 101 x 48 x 90 mm.
- Operating temperature range from 0°C to 55°C for versatile industrial use.
- Ethernet interface with RJ45 connector supports IIoT and Industry 4.0 integration.
- Compliance with RoHS standards for environmental safety.
- Advanced PID control with cutback function for rapid response and minimal overshoot.
Product Description
Eurotherm EPC3016 Panel Mount PID Controller is a high-performance programmable single loop controller designed for precise and repeatable temperature control in industrial and manufacturing applications. Featuring 1 DC input and 1 relay output, this panel mount device supports voltage, thermocouple, and current inputs, delivering accurate PID control with a cutback function to minimize overshoot and optimize process stability.
The controller integrates a clear LCD display and offers robust IP65 protection for use in demanding environments. Its compact dimensions (101 mm length, 48 mm width, 90 mm panel depth) allow easy integration into control panels. Operating from 0°C to 55°C, the EPC3016 is designed for use in thermal processing and other industries requiring precise temperature regulation.
Equipped with native fast Ethernet and an RJ45 connector, this controller supports Modbus, Ethernet/IP, and BACNet protocols, enabling seamless connectivity in Industry 4.0 and Industrial Internet of Things (IIoT) ecosystems. The Eurotherm EPC3016 meets aerospace-grade accuracy standards and incorporates factory mutual approved temperature limit options for safety. This product is RoHS compliant, ensuring environmentally responsible use.
The product is manufactured in Poland and intended for industrial, manufacturing, HVAC, laboratory, and process control applications where high reliability and precision are essential.
Advanced PID control with cutback function for fast response and minimal overshoot. Supports multiple input types including voltage, thermocouple, and current. IP65 rated enclosure suitable for harsh environments. Compact panel mount design measuring 101 x 48 x 90 mm.
Native Ethernet connectivity with support for IIoT communications. Complies with RoHS standards and aerospace accuracy requirements. Manufactured in Poland under strict quality controls. Ideal for integration into industrial automation and process control systems.
Explore more high-quality Temperature Controllers and related automation products on EnvMart to optimize your industrial control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports voltage, thermocouple, and current input types.
The EPC3016 has compact dimensions of 101 mm in length, 48 mm in width, and 90 mm in panel depth.
The maximum operating temperature for this unit is 55°C.
It features a high-visibility LCD display for clear monitoring.
This model has an IP65 rating, ensuring robust protection in harsh environments.
It provides a DC output with 1 relay.
This unit is designed for panel mounting.
It includes an Ethernet interface with an RJ45 connector, supporting IIoT and Industry 4.0 integration.
It complies with RoHS standards for environmental safety.
The minimum operating temperature for the EPC3016 is 0°C.
This product is manufactured in Poland.
It utilizes advanced PID control with a cutback function for improved process stability.
