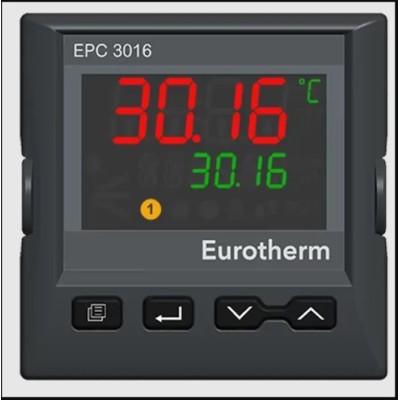

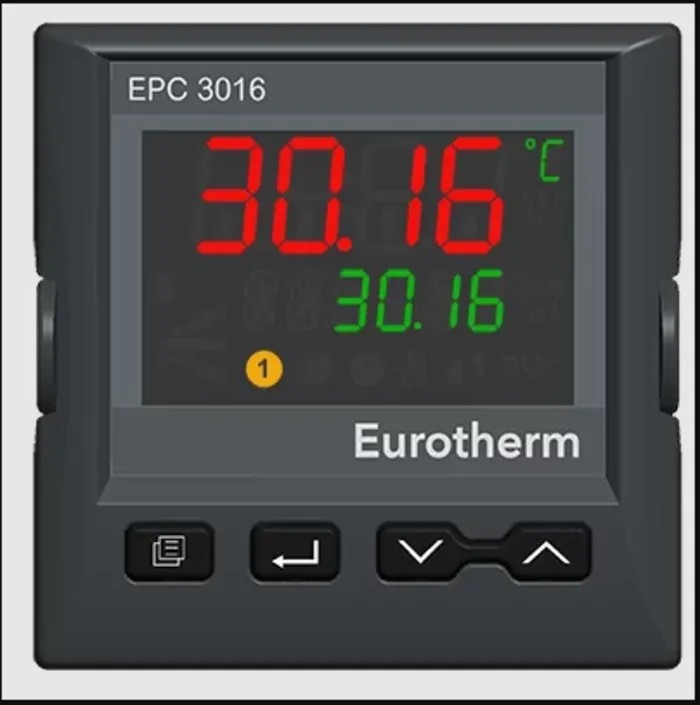

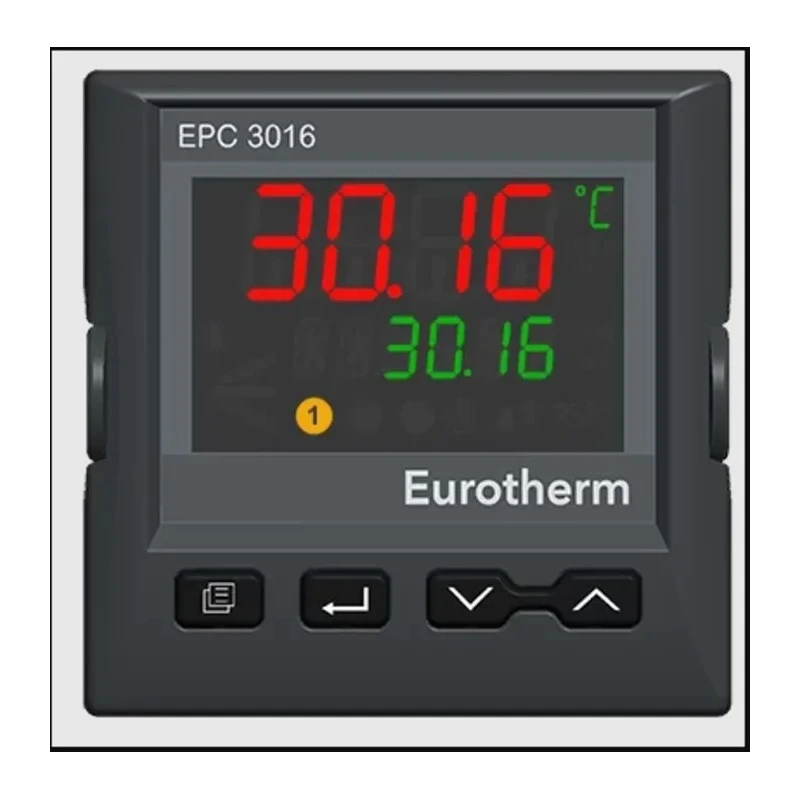

Eurotherm Panel Mount PID Controller 1 Input 2 Relay 230V AC with LCD Display EPC3016

Free Delivery in India | Lowest Global Shipping Charges

Eurotherm Panel Mount PID Controller 1 Input 2 Relay 230V AC with LCD Display EPC3016

Name: Eurotherm Panel Mount PID Controller 1 Input 2 Relay 230V AC with LCD Display EPC3016
Brand: Eurotherm
SKU: 299438
Price: 660.35 USD
Availability: InStock



Category Temperature Controllers Brand Eurotherm Condition New

Specifications

Country of Origin	Poland
Display Type	LCD
Brand	Eurotherm
Length	101mm
Model	EPC3016
IP Rating	IP65
Width	48mm
Mount Type	Panel Mount
Number of inputs	1
Output type	2 Relay
Series	EPC3016
Input Type	Current, Thermocouple, Voltage
Maximum Operating Temperature	55°C
Control Type	PID Controller
Minimum Operating Temperature	0°C
Interfaces	Ethernet with RJ45 connector for IIoT and Industry 4
Terminal type	Screw
Standards/Approvals	RoHS
Maximum Supply Voltage	230V ac
Panel Depth	90mm

Key Features

Equipped with an LCD display for clear process visualization.
Supports input types including current, thermocouple, and voltage.
Operates at a maximum supply voltage of 230V AC with a screw terminal connection.
Panel mount design with IP65 rating ensuring protection against dust and water.
Wide operating temperature range from 0°C to 55°C for versatile applications.
Advanced PID control with enhanced cutback function to minimize overshoot.
Supports native high-speed Ethernet connectivity with RJ45 for Industry 4.0 integration.
Includes Modbus, Ethernet/IP, and BACNet protocol support for industrial communication.

Product Description

Eurotherm EPC3016 Panel Mount PID Controller is a high-performance device designed for precise control of temperature and process variables in industrial environments. Incorporating advanced PID control algorithms with a cutback function, it achieves fast response times with minimal overshoot to optimize production yield.

This controller features a clear LCD display, allowing for simple setup and monitoring. It accepts current, thermocouple, and voltage input types, providing flexibility across various sensors and processes. The device is powered by a 230V AC supply and connects securely through screw terminals.

Built for harsh environments, the panel mount controller offers an IP65 rating to resist dust and water ingress, ensuring reliable operation even in challenging conditions. The temperature operating range from 0°C to 55°C suits many industrial applications including manufacturing, processing, HVAC, and automation.

Enhanced connectivity options include native fast Ethernet with an RJ45 connector, enabling integration into Industry 4.0 and Industrial Internet of Things (IIoT) systems. It supports multiple communication protocols such as Modbus, Ethernet/IP, and BACNet, facilitating seamless interfacing with control systems and networks.

The EPC3016 meets rigorous standards including RoHS compliance and is manufactured in Poland, underscoring quality and reliability. This controller is ideal for applications requiring precise thermal management, from industrial controllers to laboratory process control.

Equipped with an LCD display for clear process visualization. Supports input types including current, thermocouple, and voltage. Operates at 230V AC with screw terminal connections. Panel mount design with IP65 rating for dust and water resistance.

Operating temperature range 0°C to 55°C suitable for varied environments. Advanced PID control with enhanced cutback function ensures fast and precise response. Native fast Ethernet and support for Modbus, Ethernet/IP, BACNet protocols enable seamless IIoT integration.

Complies with RoHS and manufactured in Poland, ensuring quality and reliability. Explore the full range of industrial Temperature Controllers and automation control gear available on EnvMart to optimize your processes efficiently.
