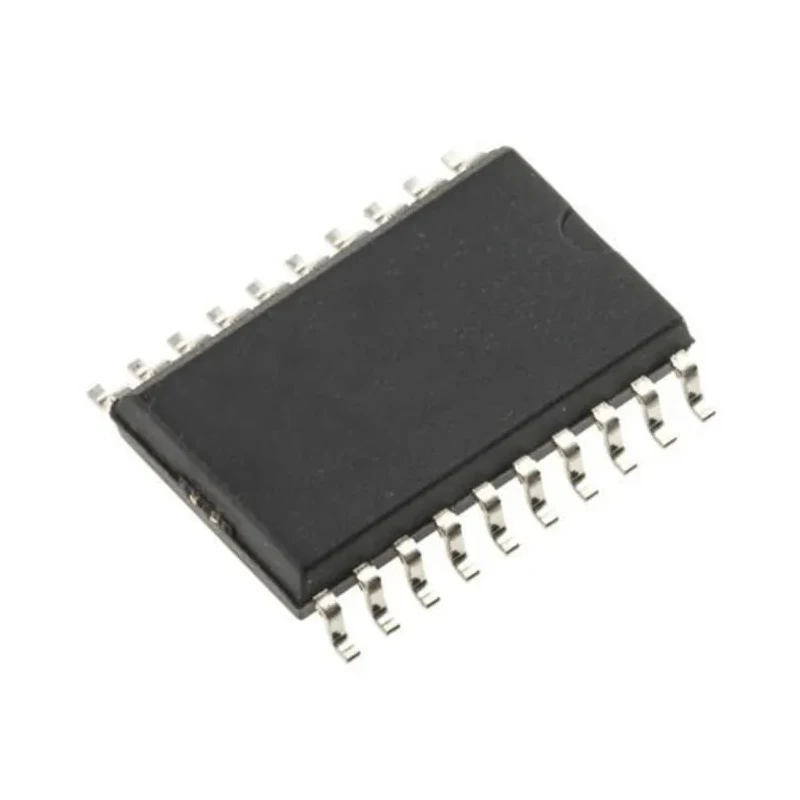

Microchip 8 bit PIC16 Microcontroller 32 MHz 14kB FLASH 20-Pin SOIC PIC16F15245-I/SO

Microchip PIC16F15245-I/SO is a sophisticated 8 bit PIC16 microcontroller offering a 32 MHz maximum clock frequency and 14kB FLASH program memory, housed in a compact 20-Pin SOIC surface mount package. Its advanced RISC architecture ensures efficient and rapid processing capabilities, making it ideal for a broad range of embedded system applications.

This device features an array of integrated peripherals including 17 programmable input/output pins, dual timers, a 10 bit analog-to-digital converter (ADC), 5 bit digital-to-analog converter (DAC), and supports multiple serial communication interfaces such as ICSP, SPI, EUSART, and I2C. Additionally, an internal temperature sensor enhances its usefulness for environmental sensing applications.

The microcontroller supports a wide operating voltage range of 2.5V to 5.5V and an operating temperature spectrum from -40°C to +85°C, making it highly suitable for industrial and automotive environments requiring robustness under temperature extremes. Compliance with RoHS directives guarantees the product's conformance to environmental safety standards.

Its compact dimensions of 8.6 mm in length, 8 mm in width, and 1.98 mm in height allow it to be deployed in space-constrained designs. The product's core independent peripherals (CIPs) and intelligent analog features further extend its versatility in power-sensitive applications.

Typical applications include embedded computing, industrial automation, consumer electronics, and advanced sensing interfaces in industrial, laboratory, and commercial sectors. Features an 8 bit PIC core with RISC architecture for efficient processing.

Includes 14kB of program memory with FLASH technology. Operates at a maximum clock frequency of 32 MHz with low power consumption. Provides 17 programmable I/O pins and 2 timers for versatile connectivity and control. Supports multiple interfaces including ICSP, SPI, EUSART, and I2C protocols.

Equipped with 10 bit ADCs, 5 bit DACs, and an internal temperature sensor for analog applications. Encased in a surface mount SOIC package measuring 8.6 mm length, 8 mm width, and 1.98 mm height. Operates over an extended temperature range of -40°C to 85°C for industrial environments.

Designed to comply with RoHS standards ensuring environmental safety. Supports supply voltage range from 2.5V to 5.5V for flexible power requirements. Explore more Microchip Microcontrollers and semiconductors at EnvMart for your industrial and commercial project needs.
