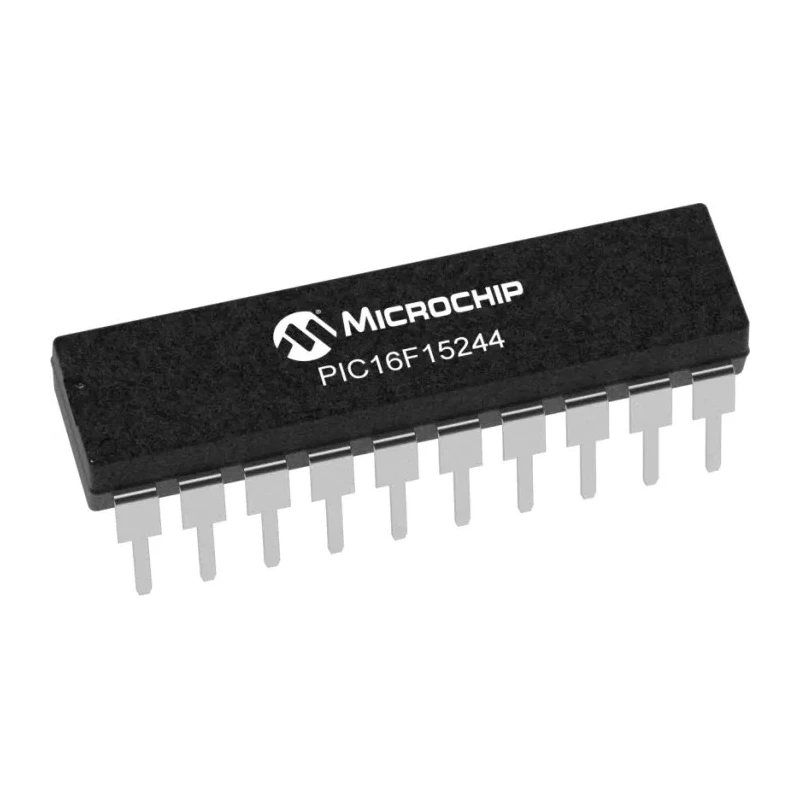

Microchip 8-bit PIC16 Microcontroller, 32 MHz Clock, 7kB FLASH, 20-Pin PDIP Package PIC16F15244-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2mm |
| Length | 15.24mm |
| Model | PIC16F15244-I/P |
| Width | 7.62mm |
| Mount Type | Surface |
| Series | PIC16 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | SPI, I2C, EUSART, ICSP |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 17 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- The device has a maximum supply voltage of 5.5V and supports a minimum supply voltage of 2.5V.
- It includes 2kB of RAM and 17 programmable I/O pins for flexible interfacing.
- The microcontroller operates in a temperature range from -40°C to 85°C.
- It features key peripherals including SPI, I2C, EUSART, and ICSP interfaces.
- Integrated peripherals include 10-bit ADCs, 5-bit DACs, and two timers for enhanced control.
- The architecture is based on RISC instruction set for efficient operation.
- This microcontroller is RoHS compliant, ensuring environmental standards compliance.
Product Description
Microchip PIC16F15244-I/P is an advanced 8-bit PIC16 microcontroller designed for a wide range of low-power embedded applications. Featuring a 32 MHz maximum clock frequency and 7kB of FLASH program memory, it offers efficient processing capabilities with a compact 20-pin PDIP package ideal for prototyping and embedded system designs.
The microcontroller integrates 2kB RAM and 17 programmable I/O pins, allowing for versatile interfacing options. It supports multiple communication protocols including SPI, I2C, EUSART, and in-circuit serial programming (ICSP) to facilitate complex system integration.
Equipped with 10-bit analog-to-digital converters and 5-bit digital-to-analog converters, this device is well-suited for analog signal processing tasks. Additionally, it includes two internal timers and various peripheral pin select features to customize functionality per application requirements.
Rated for operating voltages between 2.5V and 5.5V and temperature ranges from -40°C to 85°C, the PIC16F15244-I/P is designed to perform reliably in industrial, consumer electronics, and automotive environments. The RISC architecture ensures fast instruction execution and power efficiency.
This microcontroller meets RoHS compliance standards, aligning with environmental safety regulations. Its compact dimensions - 15.24mm length, 7.62mm width, and 2mm height - make it suitable for space-constrained electronic assemblies.
The device operates with a 32 MHz clock speed for rapid processing. 7kB FLASH memory provides ample program storage. 17 programmable digital I/O pins support diverse application needs. Supports SPI, I2C, EUSART interfaces enabling multiple communication protocols.
Includes 10-bit ADC and 5-bit DAC for precise analog signal control. Wide operating temperature range from -40°C to 85°C ensures environmental robustness. 20-pin PDIP package format facilitates easy integration on breadboards and PCB designs.
Compliant with environmental RoHS standards.
The Microchip PIC16F15244-I/P microcontroller is ideal for embedded system developers seeking a robust, low-power, and versatile microcontroller for industrial automation, consumer electronics, instrumentation, and control applications. Explore more Microcontroller solutions and accessories at EnvMart for your next industrial project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F15244-I/P microcontroller is 32 MHz.
This model features 7kB of FLASH program memory for storing applications.
The operating temperature range for the PIC16F15244-I/P is from -40°C to 85°C.
It includes 17 programmable I/O pins, allowing for versatile interfacing options.
This microcontroller supports SPI, I2C, EUSART, and ICSP communication interfaces.
The dimensions of this model are 15.24mm in length, 7.62mm in width, and 2mm in height.
This microcontroller has a RAM size of 2kB.
The minimum supply voltage is 2.5V and the maximum supply voltage is 5.5V.
It includes two internal timers for enhanced control.
Yes, this microcontroller is RoHS compliant, ensuring it meets environmental standards.
The PIC16F15244-I/P uses a RISC instruction set architecture for efficient operation.
This model comes in a 20-pin PDIP package, suitable for surface mounting.
