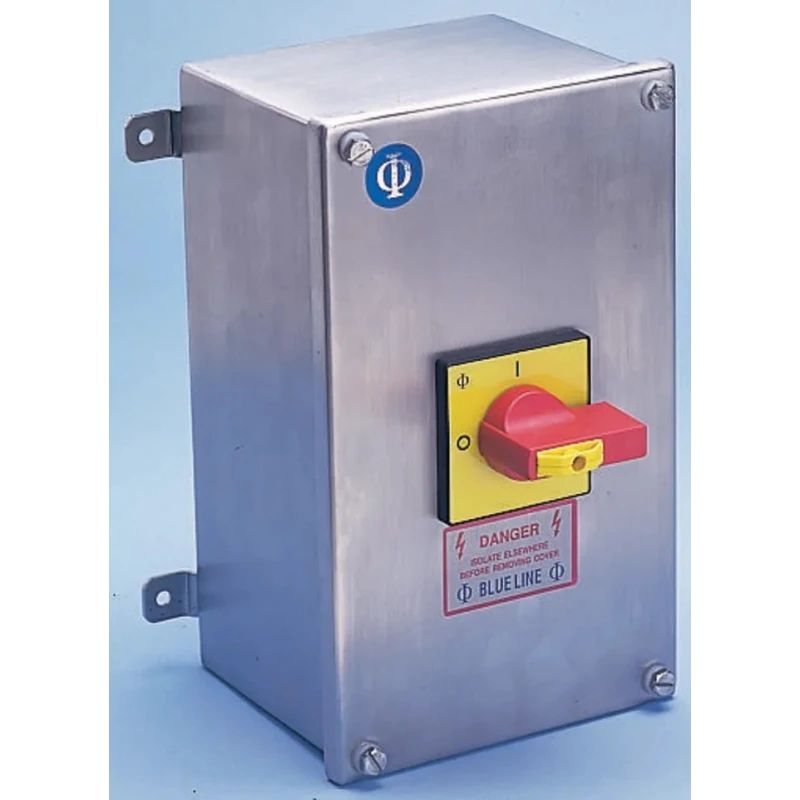

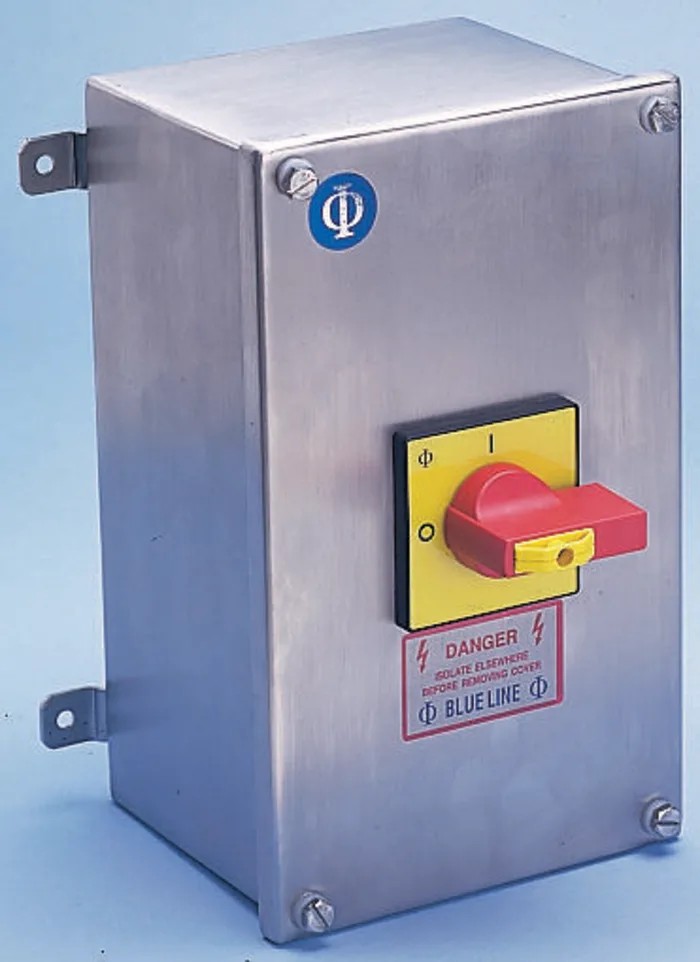

Kraus & Naimer 6-Pole Surface Isolator Switch IP65, 315A, 22 kW

The Kraus & Naimer KG64B.T206/GBA080.*SB3 6-Pole Surface Isolator Switch is a high-quality 3-phase electrical isolator designed for industrial, manufacturing, and automation applications. It features a robust stainless steel Grade 316 enclosure with a satin polish finish, providing high corrosion resistance and durability while meeting an IP65 ingress protection rating to safeguard against dust and water ingress.

This surface-mount isolator switch is rated for a switching current of 315A and switching power of 22 kW, suitable for reliable disconnection in heavy electrical circuits. The device includes a normally open auxiliary contact designed for early break and late make switching to enhance operational safety and control.

For added security, the switch allows locking with up to four padlocks in the OFF position, ensuring compliance with industrial safety lockout/tagout procedures. The unit operates over a wide temperature range from -55°C to +55°C, enabling use in diverse environmental conditions.

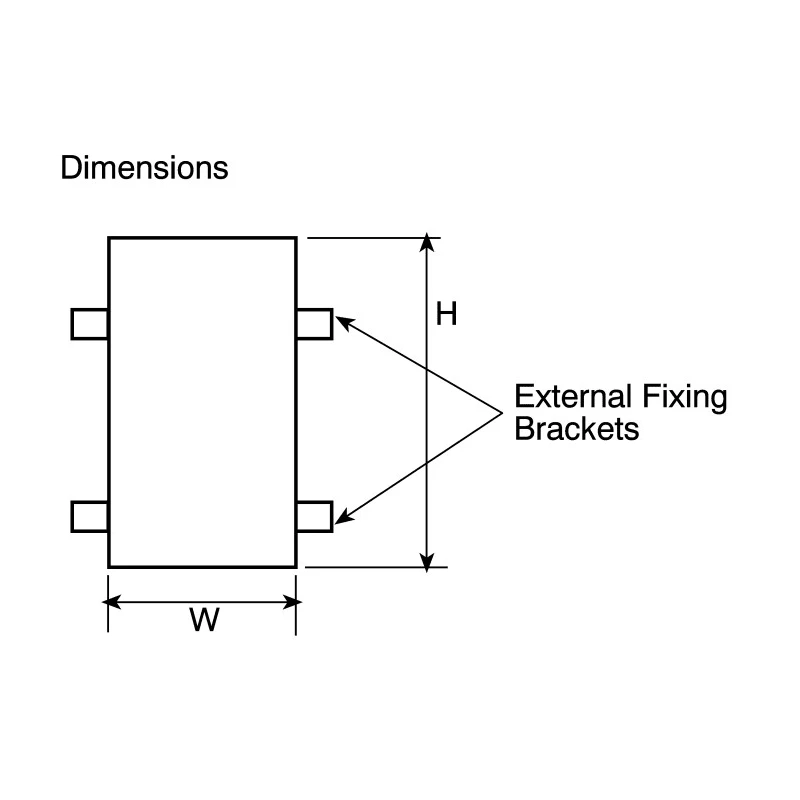

The isolator supports a nominal switching voltage of 690V, suitable for 3-phase 380/440V supplies. It conforms to internationally recognized standards including IEC 60204, BS EN 60204, IEC 60947, and BS EN 60947, assuring compliance with electrical safety and performance criteria. Note that external fixing brackets and the neutral terminal are not included with the unit and must be sourced separately.

Industrial sectors such as electrical panel manufacturing, automation systems, and industrial machinery benefit from this reliable surface Isolator Switch. It is optimized for applications that require secure disconnection and isolation of electrical power circuits in equipment and panel installations, especially in environments requiring robust protection from dust and moisture.

The switch features a stainless steel Grade 316 enclosure with a satin polish finish, rated IP65 for protection. Suitable for surface mounting and compatible with 3-phase electrical systems. Includes one normally open (N/O) early break/late make auxiliary contact.

Padlock compatibility allows up to four padlocks in the OFF position for safety. Operates reliably within a temperature range of -55°C to +55°C. Nominal switching voltage rating is 690V ensuring robust performance. Meets IEC 60204, BS EN 60204, IEC 60947, and BS EN 60947 standards.

Neutral terminal is not included with the unit. Explore more electrical switches and isolator solutions in the Electronics & Electricals category at EnvMart.
