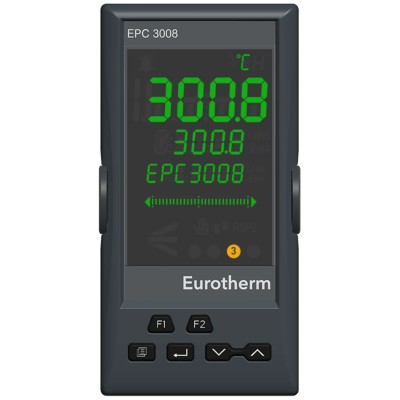

Eurotherm Panel PID Controller 1 Input 4 Relay 24V LCD IP65 Panel Mount EPC3008
Specifications
| Country of Origin | Poland |
|---|---|
| Display Type | LCD |
| Brand | Eurotherm |
| Length | 101mm |
| Model | EPC3008 |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Panel |
| Number of inputs | 1 |
| Output type | 4 Relay |
| Series | EPC3008 |
| Input Type | Current, Thermocouple, Voltage |
| Maximum Operating Temperature | 55°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet with RJ45 connector for IIoT and Industry 4 |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 24V |
| Panel Depth | 90mm |
Key Features
- Equipped with a high-resolution LCD display for clear readings.
- Supports input types including current, thermocouple, and voltage signals.
- Designed for panel mounting with IP65 rated protection.
- Operates within 0°C to 55°C with a maximum supply voltage of 24V.
- Features screw terminal connections for secure wiring.
- Includes Ethernet connectivity with RJ45 for Industry 4.0 and IIoT applications.
- Highly configurable with advanced PID control and cutback function to minimize overshoot.
- Meets RoHS standards and is Poland manufactured.
Product Description
Eurotherm EPC3008 is a panel-mounted programmable single loop PID controller designed for precise temperature and process control in industrial environments. This model features 1 input and 4 relay outputs, supporting current, thermocouple, and voltage inputs with an LCD display offering clear and intuitive visualization.
Built to withstand operating temperatures from 0°C to 55°C, it is designed for panel mounting with IP65 protection rating, ensuring durability and protection against dust and water ingress. The device is powered by a 24V supply and uses screw terminals for reliable electrical connections.
Equipped with native high-speed Ethernet and an RJ45 connector, the EPC3008 supports communication protocols like Modbus, Ethernet/IP, and BACNet, making it suitable for integration in IIoT and Industry 4.0 industrial automation systems. Its advanced PID control algorithms include a cutback function for fast response and minimal overshoot, optimizing process efficiency.
The controller supports up to 20 ramp/soak program profiles and includes wireable function blocks for math, logic, and advanced control to suit complex process requirements. It complies with RoHS and FM temperature limit options are available for enhanced safety in regulated environments.
Panel mounted programmable PID controller with 1 input and 4 relay outputs. Input types include current, thermocouple, and voltage signals. Industrial-grade IP65 enclosure suitable for harsh environments. High-speed Ethernet connection for integration with Industry 4.0.
Precision 0.1% inputs meeting aerospace regulatory accuracy. Advanced control functions including cutback and multiple program profiles. Robust build with screw terminal connections and LCD display. Manufactured in Poland with compliance to RoHS standards.
This Eurotherm EPC3008 panel PID controller is ideal for industrial, manufacturing, HVAC, laboratory, and process control applications requiring precise and reliable temperature regulation. It enhances operational efficiency by delivering repeatable control performance and supports digitized control system architectures.
Explore a wide range of industrial Temperature Controllers and automation products at EnvMart to meet your process control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of 0°C to 55°C.
It supports current, thermocouple, and voltage input types.
The maximum supply voltage for this unit is 24V.
This model features 4 relay outputs.
The controller has an IP65 rating, ensuring protection against dust and water ingress.
It is equipped with a high-resolution LCD display for clear readings.
The dimensions are 101mm in length, 48mm in width, and 90mm in depth.
It uses screw terminal connections for secure wiring.
Yes, it includes Ethernet connectivity with an RJ45 connector for Industry 4.0 and IIoT applications.
It includes advanced PID control algorithms with a cutback function to minimize overshoot and supports up to 20 ramp/soak program profiles.
Yes, it complies with RoHS standards.
This model is manufactured in Poland.
