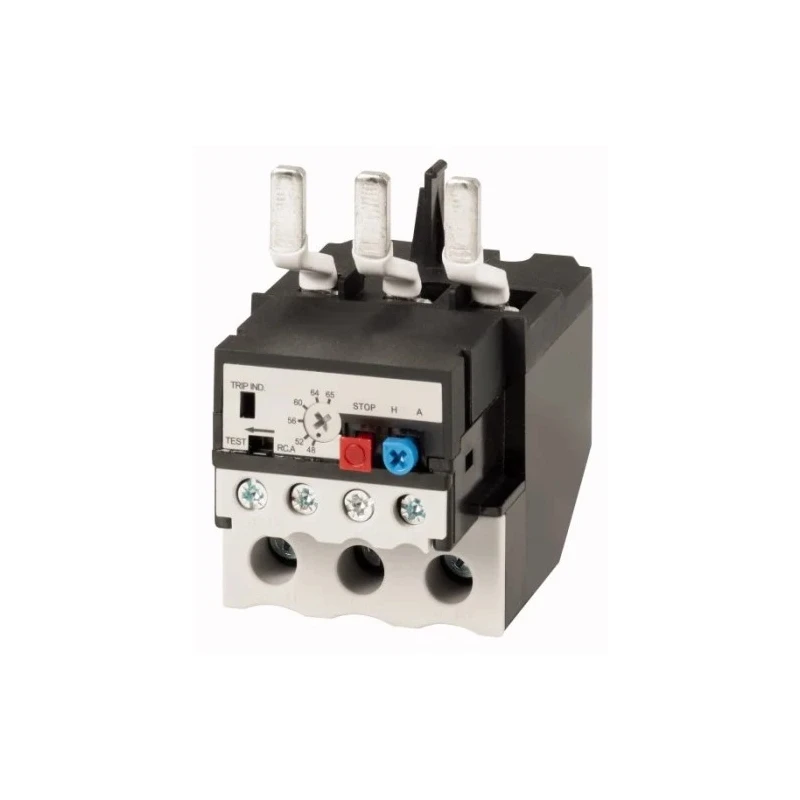

Eaton Overload Relay Adjustable Current Range 63 to 80 A, 1 NO 1 NC Contact, Screw Terminals, 690V ZBT95-80

The Eaton ZBT95-80 Overload Relay is engineered for industrial and commercial electrical protection applications, delivering adjustable current protection within the range of 63 to 80 amperes. The device features one normally open (NO) and one normally closed (NC) auxiliary contact, facilitating versatile control functions.

The relay supports a high supply and control voltage of 690 volts AC, making it suitable for demanding electrical environments. Installation is simplified by its direct mounting capability and screw-type terminals ensure secure and reliable electrical connections. Its IP20 rating protects users from accidental contact with live parts, enhancing operational safety.

Resetting the relay is efficient due to the automatic reset method combined with a test/off pushbutton that allows both manual and automatic reset options. Designed to perform in a temperature range from -25°C to 55°C, it supports stable operation under varying environmental conditions.

The compact form factor with 38.1 mm width and length allows easy integration into control gear and switchboards without occupying excessive space. The product meets rigorous safety and performance standards including IEC/EN 60947, GB14048, EN 61140, and EN 50274.

Eaton, a well-established brand, ensures product quality and reliability. This overload relay is ideal for industrial, manufacturing, automation, and electrical control applications where protection against overload and short circuits is critical.

The relay features adjustable current range from 63 to 80 A for flexible protection settings. Supply voltage is rated at 690 V AC with corresponding control voltage for high compatibility. Incorporates 1 NO and 1 NC contact for effective auxiliary control.

Screw terminal connections facilitate ease of wiring and maintenance. IP20 rating safeguards against accidental finger contact and solid objects larger than 12 mm. Automatic reset method enhances operational efficiency and safety.

Compliant with multiple international electrical standards ensuring quality assurance. Compact size enables installation in tight spaces within electrical panels. Explore more solutions in the Overload Relay category at EnvMart for advanced industrial and electrical control products.
