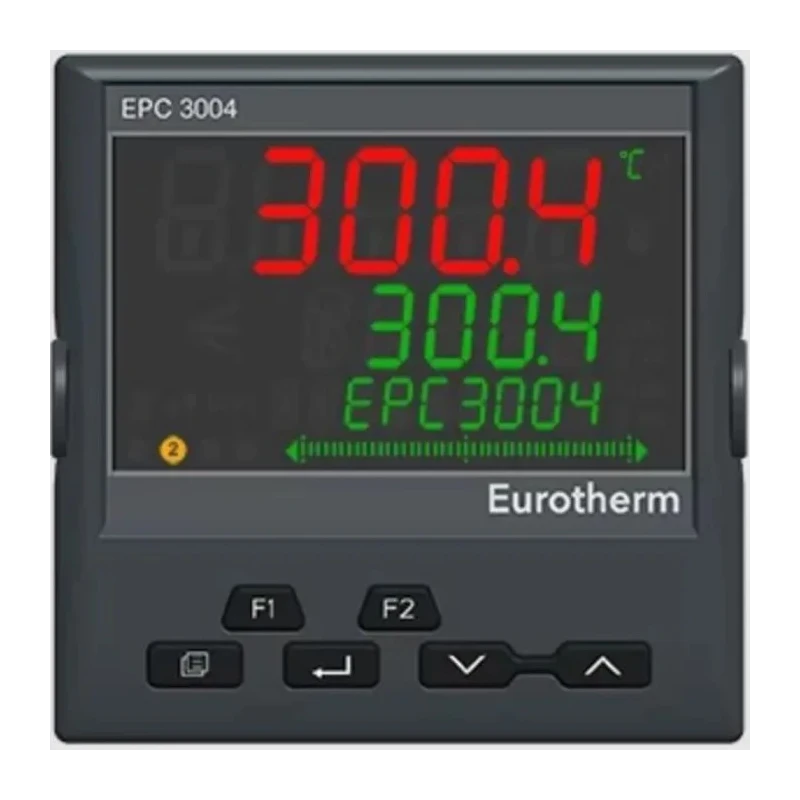

Eurotherm Panel PID Controller 1 Input 3 Relay, DC 24V, LCD Display EPC3004

Eurotherm EPC3004 Panel PID Controller is a high-performance single loop programmable controller designed for precise process control in industrial applications. This model features 1 input and 3 relay outputs operated via a DC 24V supply, fitted with an LCD display for ease of monitoring and control. Its screw terminal type and panel mount design allow straightforward installation in control panels.

Engineered to operate efficiently in temperature environments ranging from 0°C to 55°C, the EPC3004 is built to meet stringent RoHS standards and has an IP65 rating, providing protection against dust ingress and water jets.

This controller supports multiple input types, including current, thermocouple, and voltage, offering flexible integration with various sensors and systems. Connectivity options with Modbus, Ethernet/IP, and BACNet protocols enable seamless integration with Industry 4.0 and Industrial Internet of Things (IIoT) frameworks.

The precise PID control algorithm optimizes production yield in thermal and other processes, with enhanced control accuracy up to 0.1% suitable for applications requiring stringent standards such as aerospace regulation compliance. Its robust Ethernet connectivity with high-speed data exchange ensures resilience against cyber threats, certified with Achilles Level 1.

Physical dimensions of the device are 101mm in length, 96mm in width, and a panel depth of 90mm, making it compatible with standard panel installations. Manufactured in Poland, this device combines reliability and precision to meet demanding industrial requirements.

Features an LCD display for clear visualization. Operates within 0°C to 55°C temperature range. Equipped with screw terminals and panel mount type. Supports input types: current, thermocouple, and voltage. Built with IP65 rating ensuring dust and water resistance.

Supports Modbus, Ethernet/IP and BACNet protocols for connectivity. Designed for industrial applications demanding precision and reliability. Dimensions include length of 101mm, width 96mm, and panel depth 90mm.

This Eurotherm EPC3004 Panel PID Controller is ideal for industrial automation, process control in manufacturing, HVAC systems, laboratory instrumentation, and other electrical automation applications. For reliable and accurate temperature control in your industrial system, explore the full range of Eurotherm products available at EnvMart.
