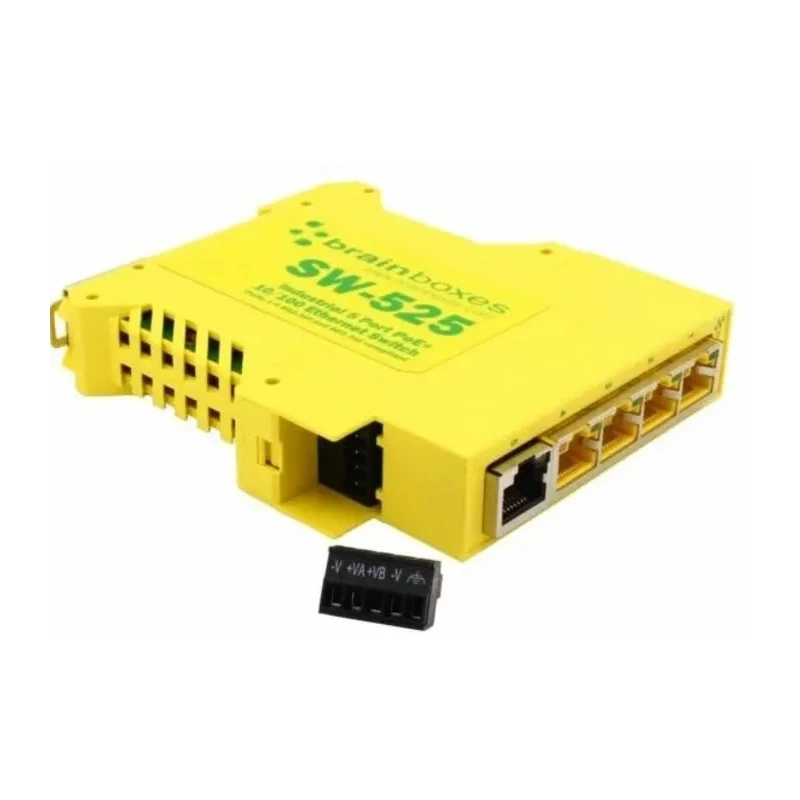

Brainboxes Industrial Unmanaged 5 Port 10/100 Mbps Power Over Ethernet Switch SW-525

Free Delivery in India | Lowest Global Shipping Charges

Brainboxes Industrial Unmanaged 5 Port 10/100 Mbps Power Over Ethernet Switch SW-525

Name: Brainboxes Industrial Unmanaged 5 Port 10/100 Mbps Power Over Ethernet Switch SW-525
Brand: Brainboxes
SKU: 297468
Price: 20.22 USD
Availability: InStock



Category Network Switch Brand Brainboxes Condition New

Specifications

Country of Origin	United Kingdom
Brand	Brainboxes
Height	116mm
Model	SW-525
Depth	23mm
Width	99mm
Switch Type	Unmanaged
Number Of Ports	5
Standards/Approvals	CE, cMETus, RoHS, TAA, UKCA
Desktop/Rack Mount	Rack

Key Features

Provides 5 RJ-45 ports with 4 PoE-capable ports for power and data transmission on a single cable.
Fully compliant with IEEE 802.3af and 802.3at PoE standards for reliable power delivery.
PoE power budget is 90W at 70 degrees Celsius ambient temperature.
Includes redundant dual power inputs accepting 44 to 57 V DC for increased reliability.
Designed for industrial applications with operating temperature range from -40°C to +70°C.
Rack-mountable form factor with compact dimensions of 99 mm width, 116 mm height, and 23 mm depth.
Conforms to international standards including CE, cMETus, RoHS, TAA, and UKCA.
Supports network speeds of 10/100 Mbps for versatile connectivity.

Product Description

Brainboxes SW-525 is a rugged unmanaged Ethernet switch designed for industrial and commercial networking applications. Featuring 5 RJ-45 ports with 4 supporting Power Over Ethernet (PoE), it enables simultaneous data and power transmission via a single Ethernet cable.

Fully compliant with IEEE 802.3af and 802.3at standards, this switch offers a PoE power budget of up to 90 watts at an ambient temperature of 70°C, making it ideal for powering IP cameras, access points, and other network devices. The device supports network speeds from 10 Mbps to 100 Mbps, suitable for varied data throughput requirements.

Robust construction supports an extended industrial operating temperature range of -40°C to +70°C. It is equipped with redundant dual DC power inputs, accepting voltages between 44V and 57V, enhancing power reliability in critical environments.

The compact rack-mountable design measures 99 mm width, 116 mm height, and 23 mm depth, enabling easy integration into industrial racks or desktop setups. Compliance with CE, cMETus, RoHS, TAA, and UKCA standards ensures adherence to global regulatory requirements.

Offers 5 10/100 Mbps RJ-45 ports, with ports 1 to 4 PoE capable. Meets IEEE 802.3af/at PoE standards with 90W power budget. Dual redundant DC power inputs from 44-57V increase operational reliability. Industrial temperature range from -40°C to +70°C supports harsh environments.

Compact 99x116x23 mm rack-mount form factor. Certifications include CE, cMETus, RoHS, TAA, and UKCA.

This Ethernet switch is well-suited for industrial automation, manufacturing systems, commercial network expansions, security installations, laboratory networking, and other scenarios requiring dependable unmanaged switching with PoE capabilities. For viewing and downloading design files and 3D models, users may utilize DesignSpark software.
