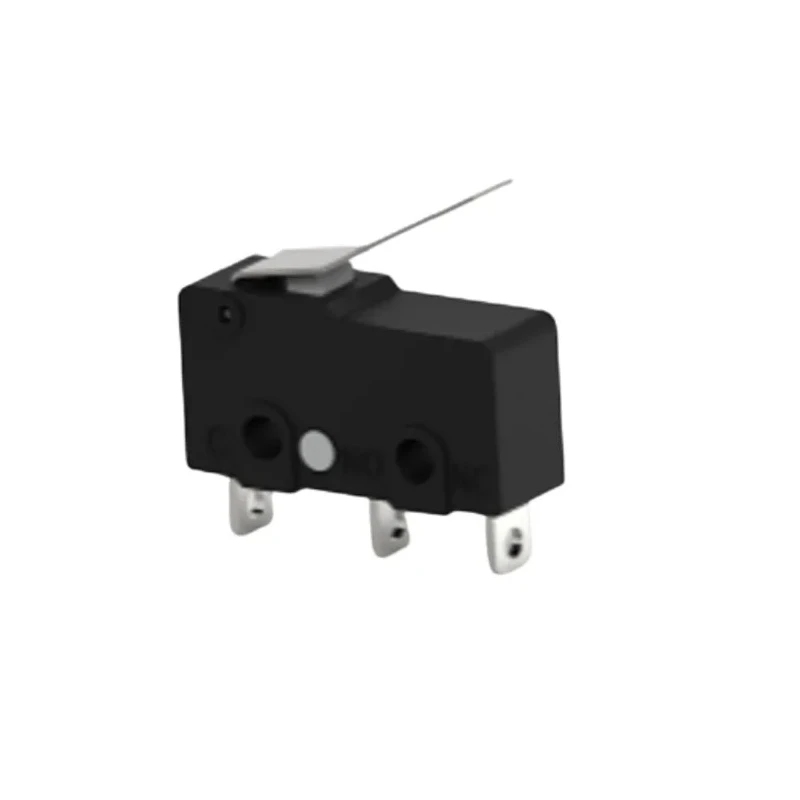

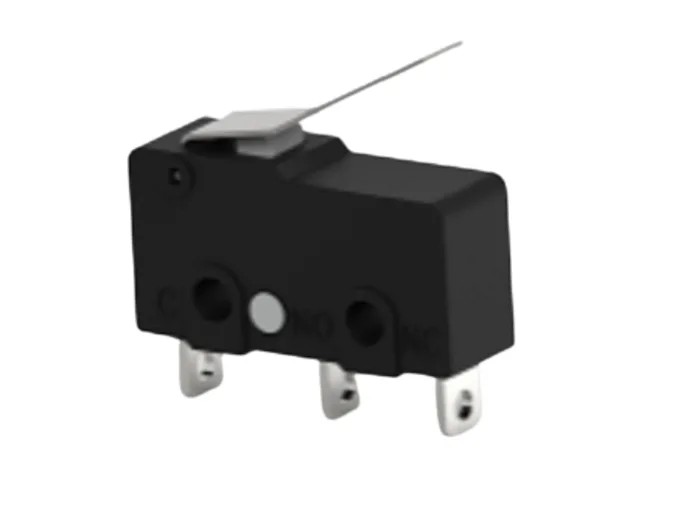

TE Connectivity Lever Snap Action Micro Switch, Solder Terminal, 3A, 250 V ac, 30 V dc, SPDT SAJ25YXUL1147SDTSEQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ25YXUL1147SDTSEQ |
| Series | SAJ2 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.47N |
| Mechanical Life | 10000000Cycles |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- Features a lever actuator for precise switching action.
- Designed with solder-type terminals for secure electrical connections.
- Supports a switch contact current of 3A for robust performance.
- Configured as a Single Pole Double Throw (SPDT) contact arrangement.
- Operates reliably within -40°C to 75°C temperature range.
- Mechanical lifespan rated up to 10 million cycles ensuring durability.
- Complies with RoHS standards for environmental safety.
- Ideal for applications in home appliances, consumer electronics, and industrial automation.
Product Description
TE Connectivity SAJ25YXUL1147SDTSEQ Lever Snap Action Micro Switch is a miniature sub-miniature switch designed to convert mechanical action into electrical signals with high reliability and longevity. This model features a lever actuator and solder terminals for secure connectivity. It supports a contact current of 3A and voltage ratings of 250 V ac and 30 V dc, suitable for diverse electrical control tasks.
The switch operates effectively in temperature ranges from -40°C to 75°C and offers a mechanical life of up to 10 million cycles, making it dependable for long-term use in industrial, laboratory, home appliance, and consumer electronic applications.
It conforms to RoHS standards, ensuring environmental compliance. Its SPDT contact configuration provides flexible switching capabilities, ideal for factory automation and other domestic and industrial uses. The miniature size and compatibility with popular designs facilitate easy integration into existing systems.
The solder terminal type provides reliable electrical connection while the lever actuator enables sensitive and accurate actuation. The product is manufactured in China under strict quality assurance processes.
Features a lever actuator for precise switching action. Designed with solder-type terminals for secure electrical connections. Supports a switch contact current of 3A for robust performance. Configured as a Single Pole Double Throw (SPDT) contact arrangement.
Operates reliably within -40°C to 75°C temperature range. Mechanical lifespan rated up to 10 million cycles ensuring durability. Complies with RoHS standards for environmental safety. Ideal for applications in home appliances, consumer electronics, and industrial automation.
Compact miniature form factor compatible with existing designs. Manufactured in China with stringent quality controls. Browse the Electronics & Electricals category at EnvMart for a comprehensive range of switches and automation components from trusted brands like TE Connectivity.
Explore more products in our Micro Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switch contact current of 3A.
It has a contact AC voltage rating of 250 V and a contact DC voltage rating of 30 V.
The switch operates reliably within a temperature range of -40°C to 75°C.
It has a mechanical lifespan rated up to 10 million cycles.
This model features a lever actuator for precise switching action.
It is configured as a Single Pole Double Throw (SPDT) contact arrangement.
It is designed with solder-type terminals for secure electrical connections.
Yes, it complies with RoHS standards for environmental safety.
The operating force required is 1.47N.
It is ideal for applications in home appliances, consumer electronics, and industrial automation.
This model is manufactured in China under strict quality assurance processes.
This model is classified as a miniature micro switch.
