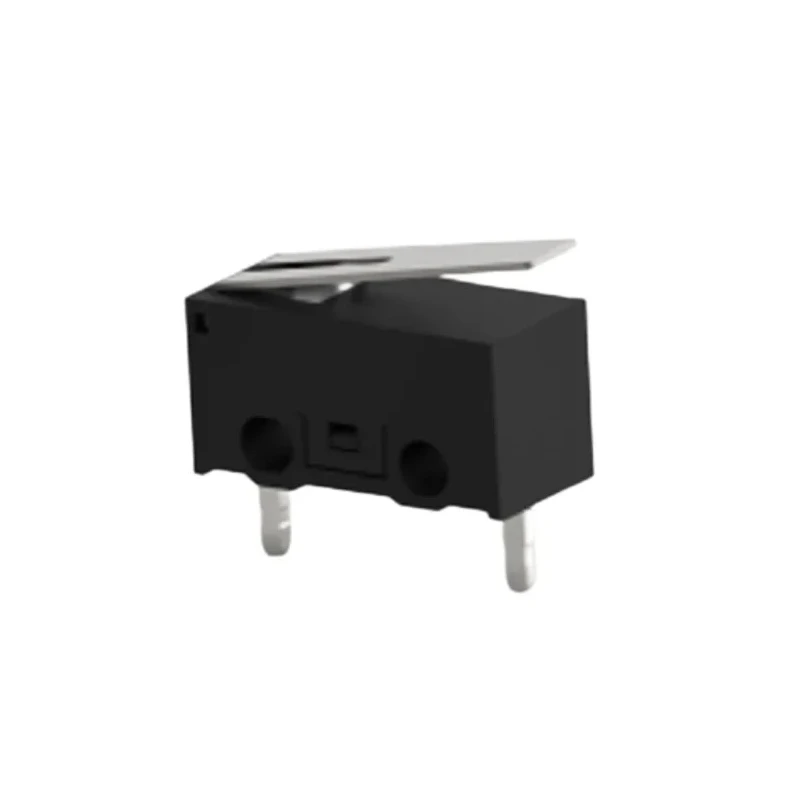

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 0.1A, SPST SAJ101XHL0N74SNCPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XHL0N74SNCPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Miniature snap action micro switch with lever actuator type.
- Designed for PCB terminal connections ensuring reliable performance.
- Rated for 0.1A current with SPST contact configuration.
- Operating force of 0.75N for efficient switching action.
- Wide operating temperature range from -25°C to 75°C.
- High mechanical life rated at 1,000,000 cycles for durability.
- RoHS compliant ensuring environmental safety and standards.
- Suitable for various applications including home appliances, consumer electronics, and factory automation.
Product Description
TE Connectivity SAJ101XHL0N74SNCPTQ is a high-quality lever snap action micro switch designed for converting mechanical actions into electrical signals. Featuring a miniature build and PCB terminal type, this micro switch supports a switch contact current of 0.1A with a SPST contact configuration, ideal for low current applications.
The actuator lever type provides precise control with an operating force of 0.75N. The switch operates reliably within a wide temperature range from -25°C to 75°C, making it suitable for both domestic and industrial environments including home appliances, consumer electronics, and factory automation systems.
With a mechanical life of one million cycles, this miniature switch assures exceptional durability and stability. It conforms to UL standards and is RoHS compliant, ensuring environmental compatibility. The PCB terminal design enhances resistance to flux contamination, improving reliability in printed circuit board mounting applications.
Manufactured under the SAJ1 series in China, this micro switch is dimensionally compatible with popular brands, facilitating easy replacement and integration into existing designs. It is an optimal choice for applications demanding miniature, robust, and reliable switching performance.
Miniature snap action micro switch with lever actuator. PCB terminal for reliable circuit board connection. 0.1A rated current with SPST contact configuration. Operating force of 0.75N for precise actuation. Temperature range from -25°C to 75°C supports diverse environments.
Mechanical life of up to 1,000,000 cycles ensuring longevity. RoHS certification complies with environmental standards. Ideal for consumer electronics, home appliances, and industrial automation. Dimensionally compatible with other leading micro switch brands.
Manufactured in China under SAJ1 series. Explore the full range of Micro Switches at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 75°C.
This model is rated for a switch contact current of 0.1A.
It uses a lever actuator type for precise control.
The mechanical life of this switch is rated at 1,000,000 cycles.
The operating force required for this switch is 0.75N.
The contact configuration is SPST (Single Pole Single Throw).
It operates reliably within a temperature range from -25°C to 75°C.
This model features a PCB terminal type for reliable circuit board connections.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is manufactured in China under the SAJ1 series.
This micro switch is suitable for applications in home appliances, consumer electronics, and factory automation.
The PCB terminal design enhances resistance to flux contamination, improving reliability in printed circuit board mounting applications.
