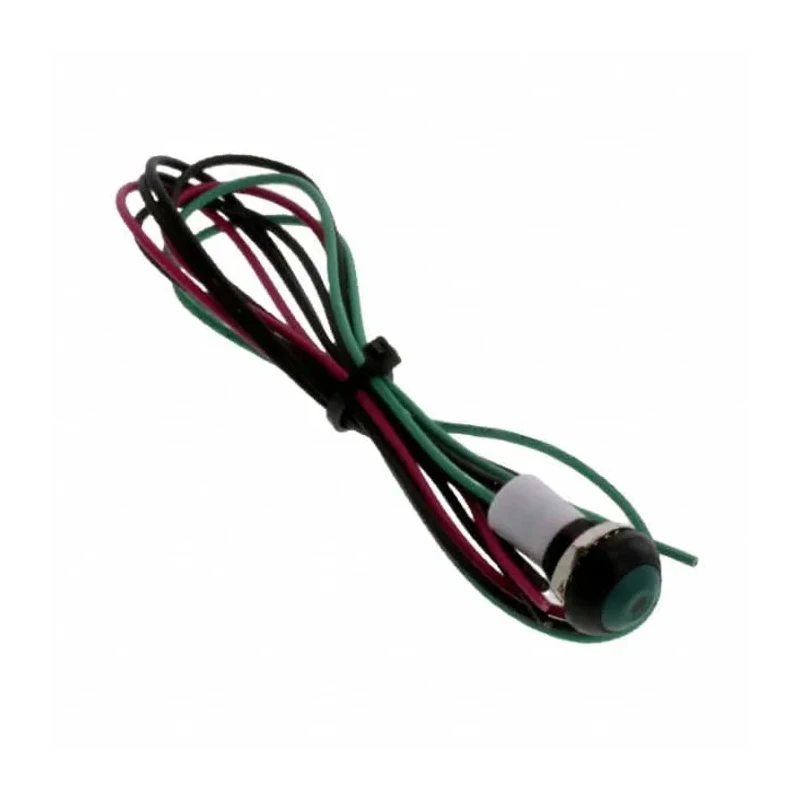

TE Connectivity PB6 Series Illuminated Push Button Switch, On-Off, Panel Mount, 13.6 mm Cutout, 1 NO PB6B2FM6M1CAL03S500
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Length | 50mm |
| Model | PB6B2FM6M1CAL03S500 |
| IP Rating | IP68 |
| Mount Type | Panel |
| Series | PB6 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 1 NO |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | On-Off |
| Contact DC Voltage | 50V dc |
| Contact AC Voltage | 125V ac |
| Legend | Blank |
Key Features
- This push button features a 1 normally open (NO) contact configuration for momentary switching.
- Integrated red LED illumination enhances visibility and indication.
- IP68 rated enclosure ensures protection against dust and water immersion up to 1 meter for 60 minutes.
- Suitable for contact voltage up to 50 V DC and 125 V AC applications.
- Operates reliably within -30°C to 85°C temperature range for diverse industrial environments.
- Panel mounting enables easy installation with solder lug terminals for secure connections.
- Matte flat cap actuator offers ergonomic design and durability.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
Product Description
TE Connectivity PB6B2FM6M1CAL03S500 is a high-quality illuminated push button switch from the PB6 series, engineered for precise On-Off control in panel-mounted applications. This push button switch features a compact 13.6 mm cutout size and a robust panel mount design, making it suitable for various industrial and automation setups.
The switch is equipped with a single normally open (NO) contact and a red LED for clear operational indication. Its IP68 rating certifies protection against dust ingress and water immersion at a depth of 1 meter for up to 60 minutes, offering reliable performance in harsh environments. The switch supports contact voltages of up to 50 V DC and 125 V AC, ensuring versatility for both low voltage DC and AC circuits.
The operating temperature range from -30°C to 85°C allows deployment in diverse climatic conditions. Its solder lug terminal type facilitates straightforward wiring. The matte finish flat cap actuator enhances user comfort and maintains aesthetic appeal over prolonged use.
Designed adhering to the RoHS directive, this switch is environmentally compliant. Typical applications include industrial automation controls, machinery panels, and electronic devices requiring push button actuation with illumination feedback.
This push button switch provides dependable On-Off switching with LED illumination. Its panel mount and 13.6 mm cutout fit standard industrial panels seamlessly. Rated IP68 for dust-tight and water immersion resistance. Supports contact voltages of 50 V DC and 125 V AC.
Wide operating temperature range ensures durability. Solder lug terminals enable secure electrical connections. Meets RoHS standards for environmental safety. Explore the full range of Push Button Switches and components by TE Connectivity on EnvMart for your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 85°C.
It has an IP68 rating, ensuring protection against dust ingress and water immersion at a depth of 1 meter for up to 60 minutes.
This push button switch features a single normally open (1 NO) contact configuration for momentary switching.
The required panel cutout size for this switch is 13.6 mm.
It supports contact voltages of up to 50 V DC and 125 V AC.
This switch uses solder lug terminals for secure electrical connections.
The minimum operating temperature is -30°C, allowing it to function in diverse climatic conditions.
The LED illumination on this model is red, enhancing visibility and indication.
This switch complies with RoHS standards, ensuring environmentally safe manufacturing.
It features a panel mount design, facilitating easy installation in various applications.
Typical applications include industrial automation controls, machinery panels, and electronic devices requiring push button actuation with illumination feedback.
This model belongs to the PB6 series of illuminated push button switches by TE Connectivity.
