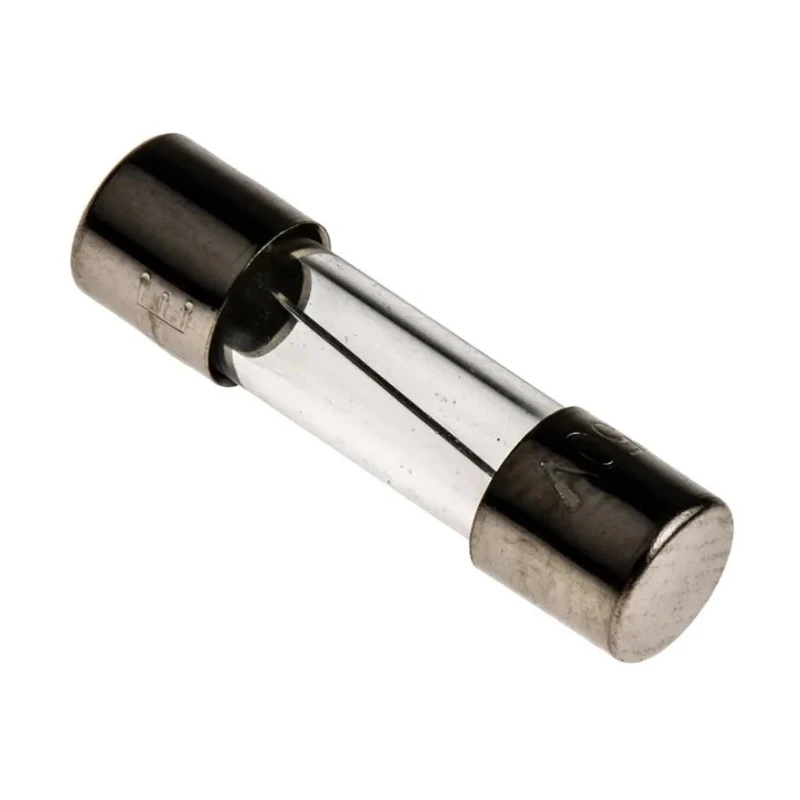

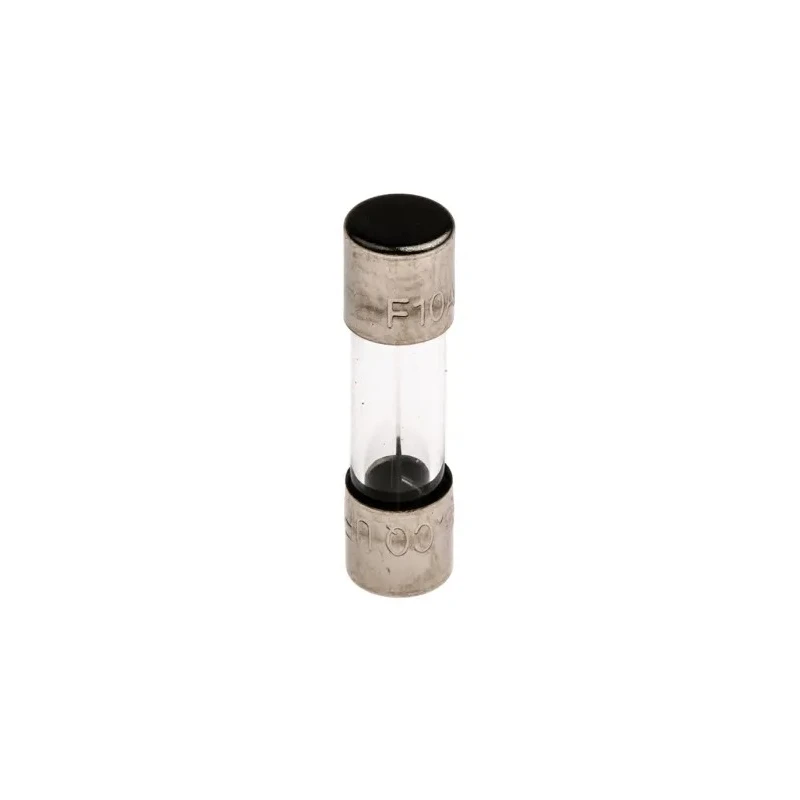

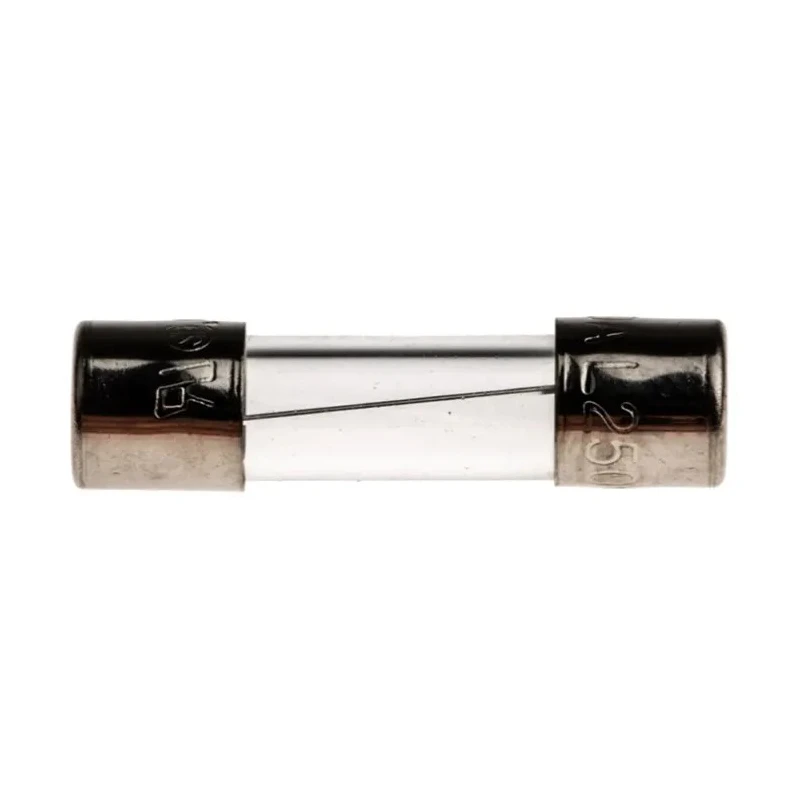

RS PRO 10A Fast Acting Glass Cartridge Fuse, 5.2 x 20 mm, 250V AC 563-643

RS PRO 563-643 model glass cartridge fuse is a fast acting fuse rated at 10 amperes and 250 volts AC, with a standard cartridge size of 5.2 x 20 mm. It features a clear glass body and nickel-plated brass end caps, making it easy to visually determine fuse status. This fuse is designed to comply with international IEC standards and is suitable for protecting electric motors, air conditioners, refrigerators, pumps, and a wide range of electrical equipment from overcurrent and short circuits.

The fuse operates effectively in a wide temperature range from -55°C to 125°C, making it reliable for industrial, commercial, and residential applications. Its fast acting (F) characteristic allows rapid response to overloads, protecting both wiring and components from damage.

Certified to meet RoHS, UL, VDE, and CSA standards, this RS PRO cartridge fuse ensures environmentally responsible manufacturing and safety compliance. Its cylindrical shape and dimension of 20 mm length and 5.2 mm diameter fit standard 5 x 20 mm fuse holders commonly used in panel and board-level protection.

Glass fuses like this are excellent for applications requiring easy fuse failure verification without removal, as users can see the filament inside the transparent body.

Uses for this fuse extend across industrial control panels, HVAC systems, household appliances, automotive electrical circuits, and various other low breaking capacity electrical protection scenarios.

This glass cartridge fuse features a durable glass body with nickel-plated brass caps. The fuse has a cylindrical shape measuring 20 mm in length and 5.2 mm in diameter. It is designed with a fast acting (F) speed rating to protect less sensitive components.

Operates reliably between -55°C and 125°C ambient temperatures. This fuse complies with RoHS, UL, VDE, and CSA standards. Typical applications include protecting electrical appliances such as motors, air conditioners, refrigerators, and pumps.

Easy to visually inspect for blown fuse due to transparent glass body. Designed to international IEC standards for global use. Breaking capacity is low, suitable for small electrical systems and board-level protection. Originates from Taiwan, Province Of China.

Explore our comprehensive range of Cartridge Fuses at EnvMart to find the perfect protection solutions for your industrial, commercial, or residential electrical systems.
