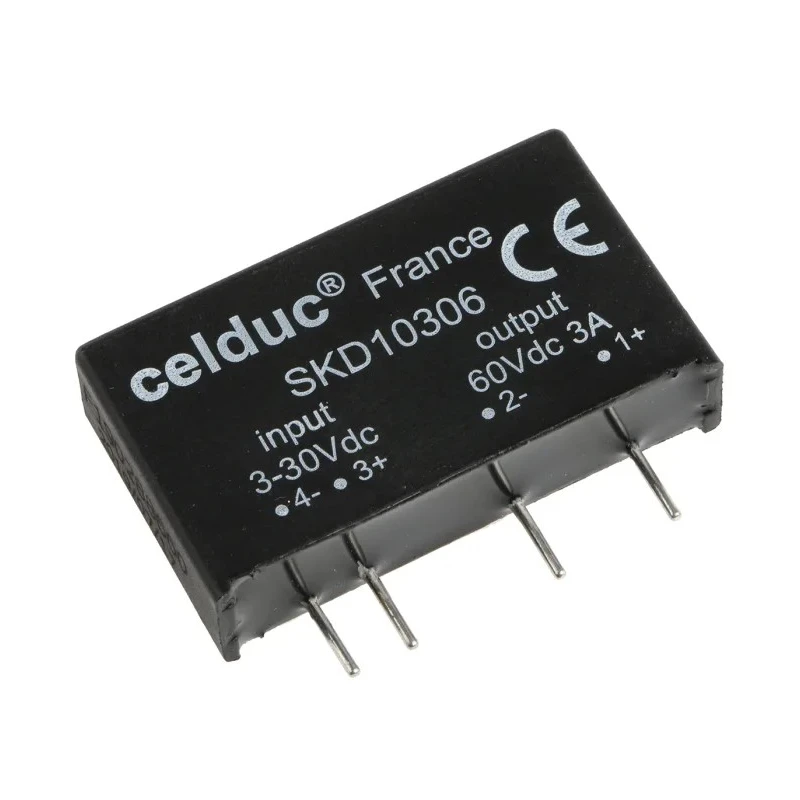

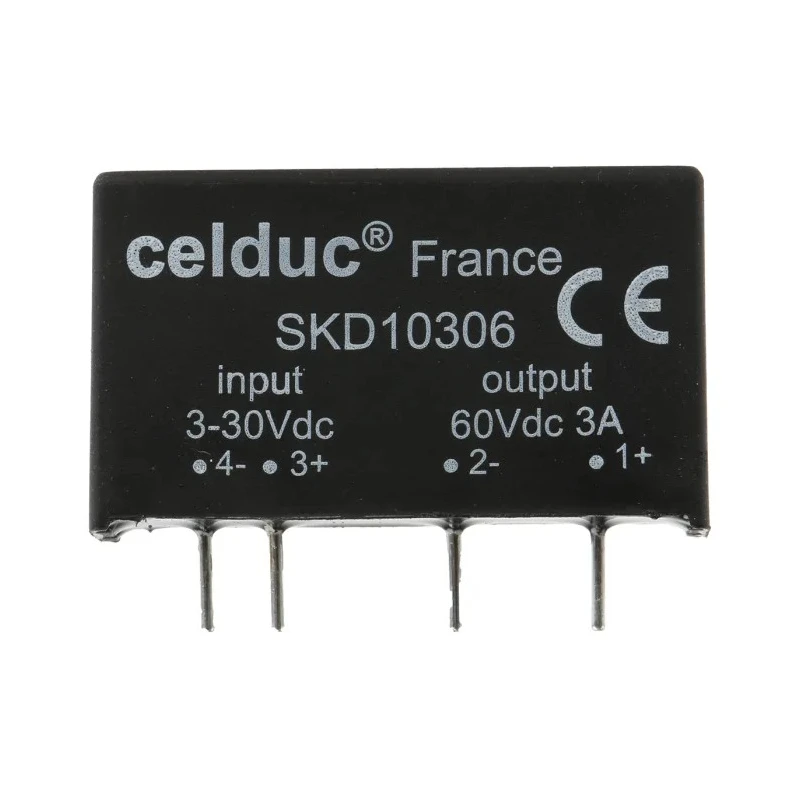

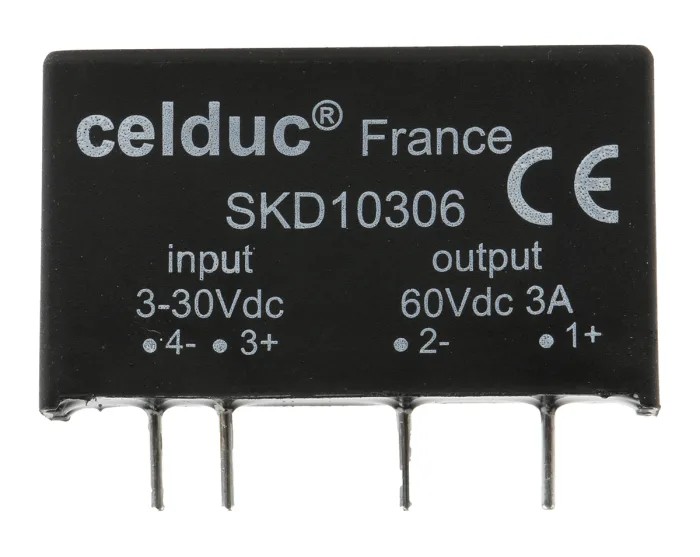

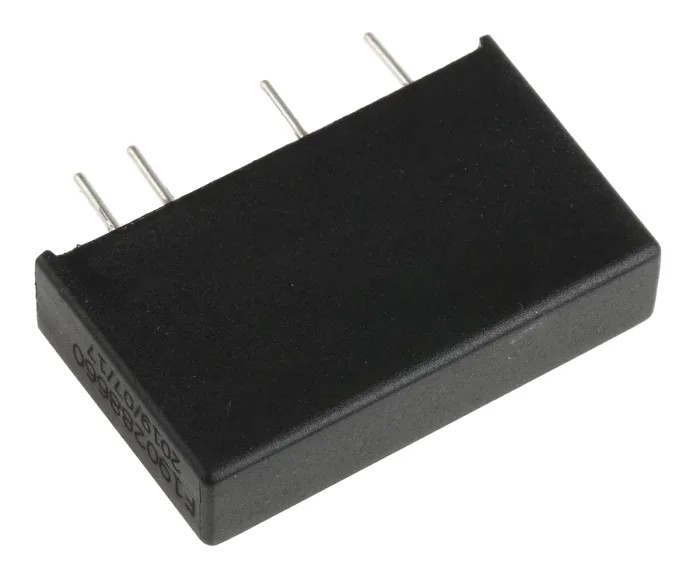

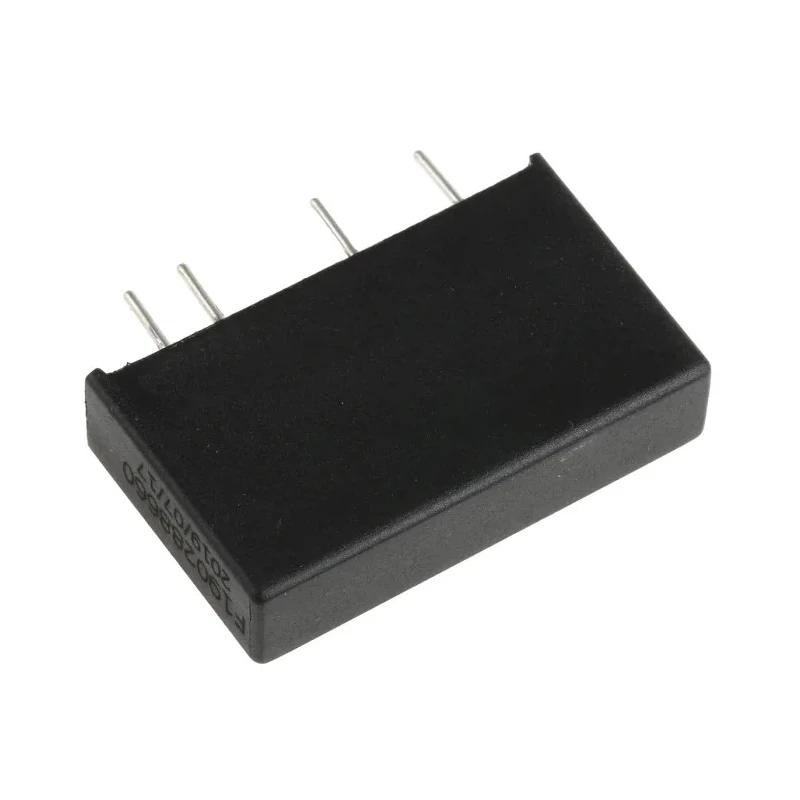

Celduc Printed Circuit Board Mount Solid State Relay, 3 A Load, 60 V Load, 30 V Control SKD10306

Celduc SKD10306 series solid state relay is designed for printed circuit board mounting, supporting up to 3 A load current at a maximum load voltage of 60 V. It operates with a control voltage from 3 V up to 30 V, providing dependable switching with zero cross function to prevent surge currents.

This relay features PCB pin terminals and an IP20 rating providing moderate protection against foreign objects. The low off-state leakage current of 6 mA and on state resistance of 40 mΩ contribute to efficient energy use and minimal heat generation.

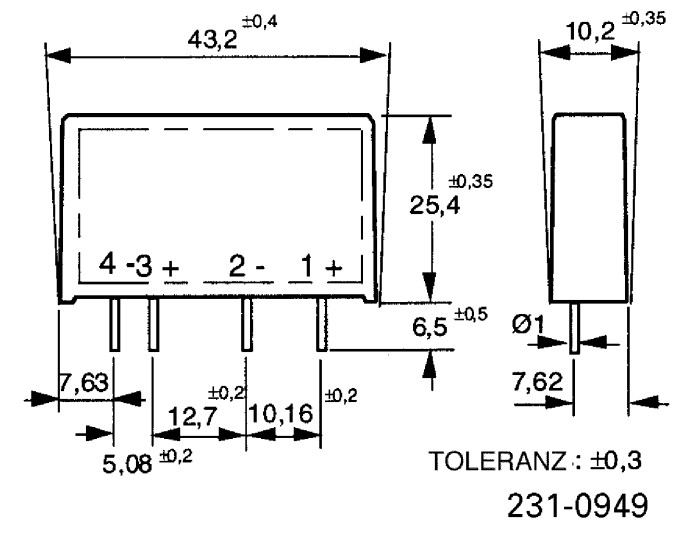

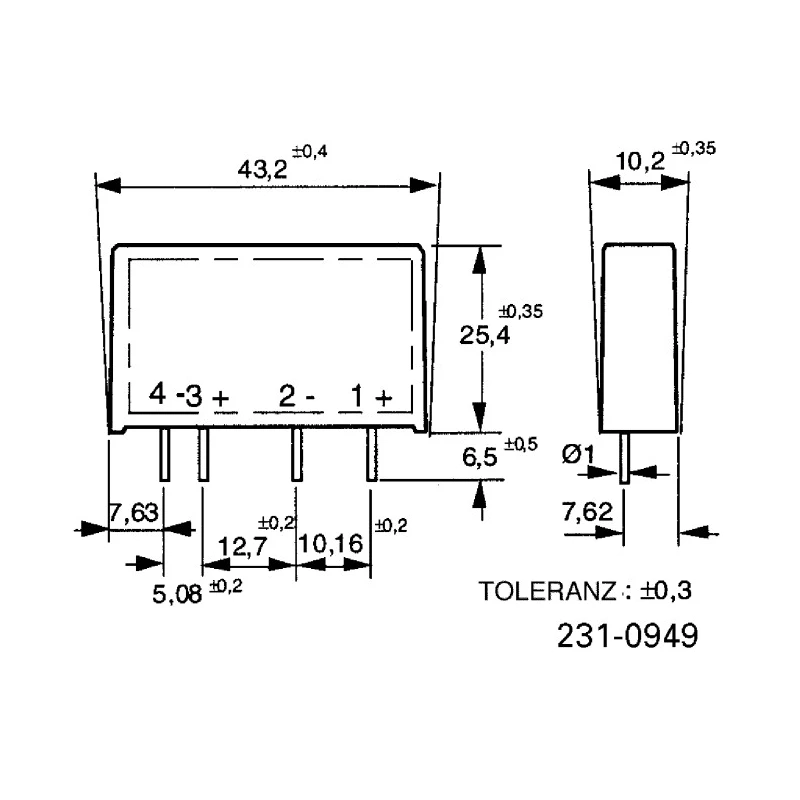

With dimensions of 42 mm length, 25.4 mm height, and 10.2 mm width, the compact design fits well into circuit boards. Operating temperatures from -40°C to 80°C ensure reliable performance in industrial environments.

The relay is manufactured in France and meets UR standards, assuring quality and safety compliance. Its high immunity to external interference and integrated surge suppressor enhances durability in demanding electrical applications.

Suitable for PCB mounting with PCB pin terminals. Designed with low off-state leakage current of 6 mA for energy saving. Compact dimensions with 42 mm length, 25.4 mm height, and 10.2 mm width. Operates reliably in temperatures from -40°C to 80°C.

Features high immunity to external interference and a surge suppressor. On state resistance is 40 mΩ ensuring low conduction losses. Certified to UR standards with an IP20 rating. Output type is DC with capacitance of 8 pF.

This solid state relay is ideal for industrial automation, control systems, electronic circuitry, and manufacturing applications requiring reliable low-noise switching. Explore the complete range of Solid State Relays and related electrical components on EnvMart for robust and efficient solutions.
