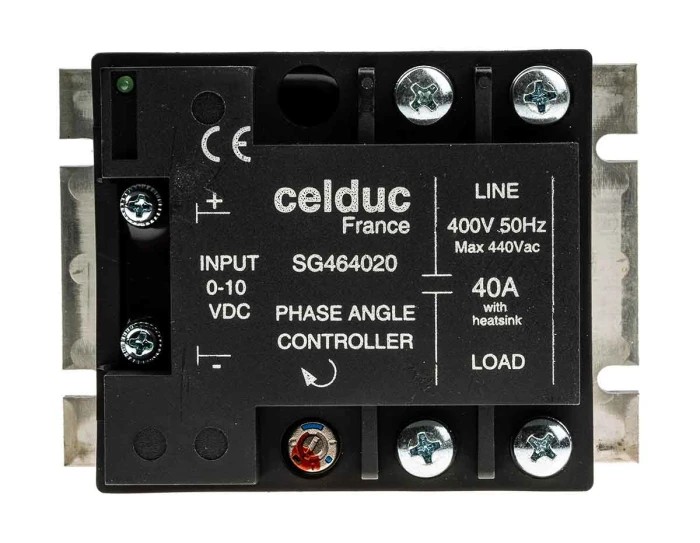

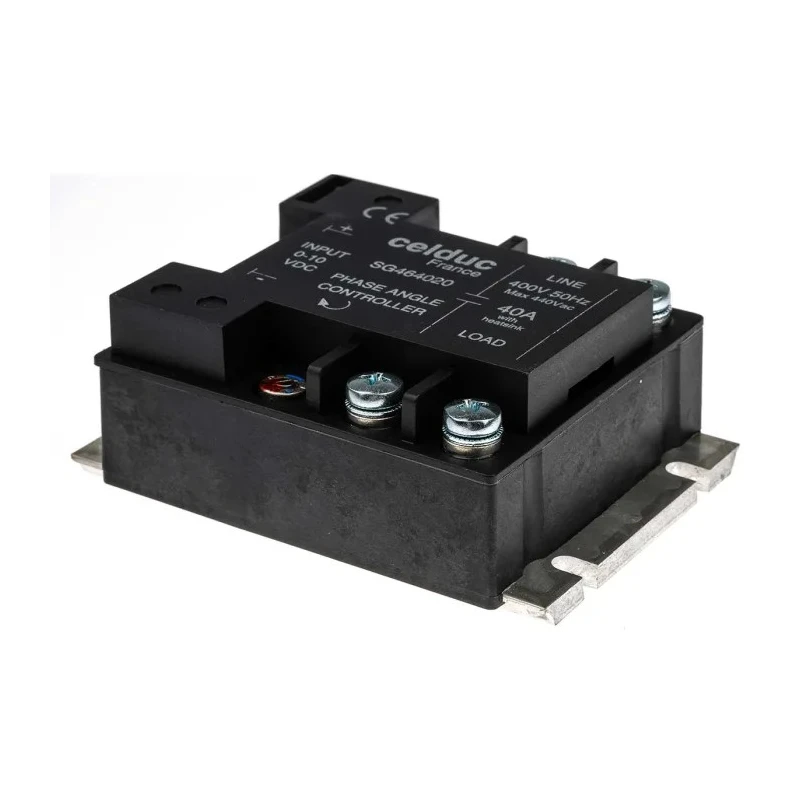

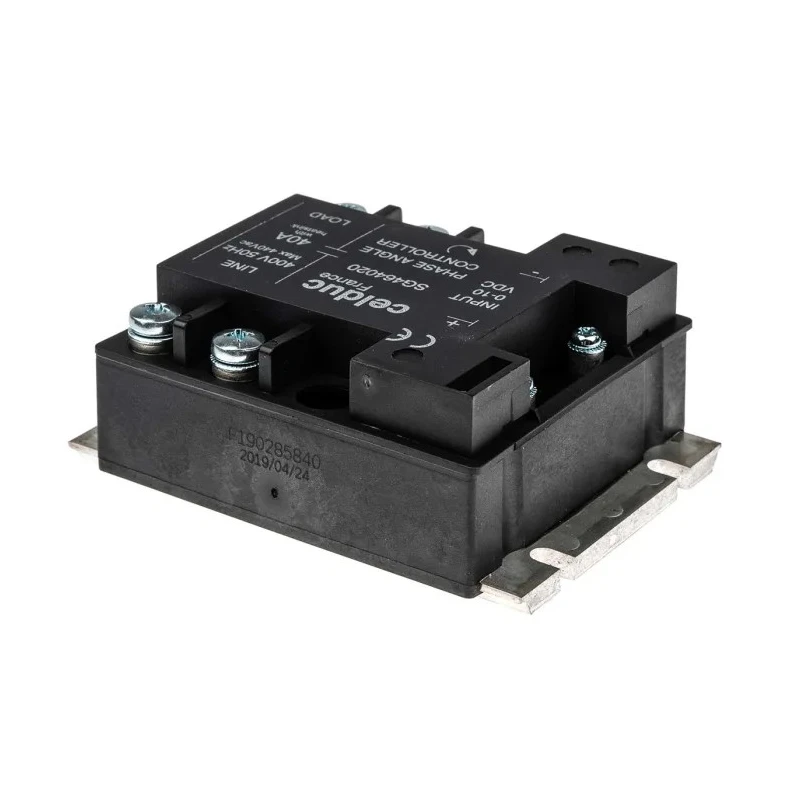

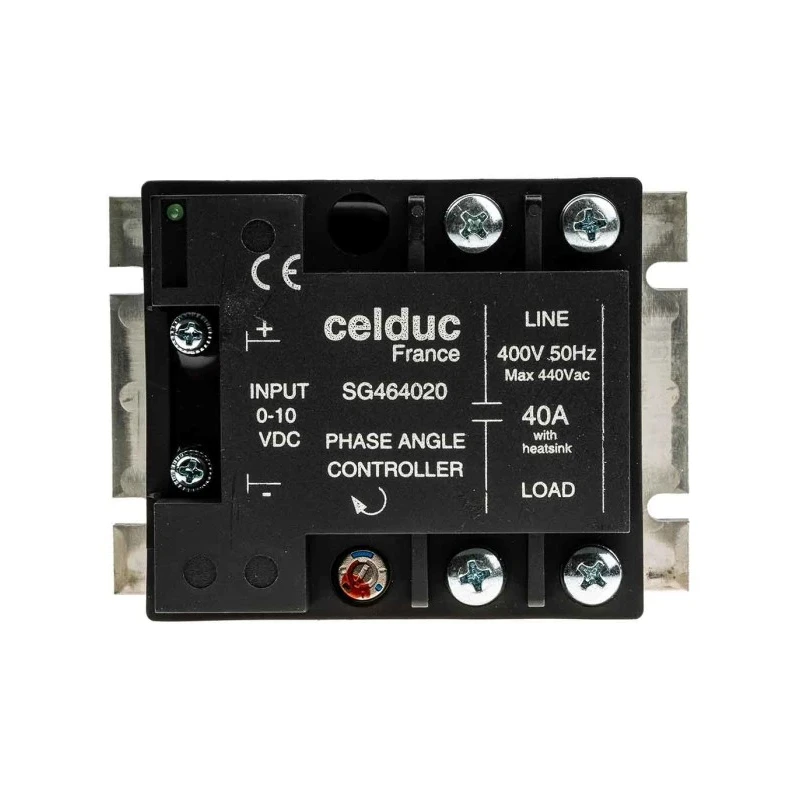

Celduc SG4 Series Solid State Relay Panel Mount 40 A Load, 460 Vrms Load, 10V DC Control SG464020

Celduc SG464020 solid state relay is a high-performance industrial relay designed for panel mounting with a maximum load current rating of 40 A and a load voltage of 460 Vrms. It features a control voltage range from 0V to 10V DC enabling precise control inputs suitable for a variety of automation projects.

This relay utilizes a zero cross switching function which helps reduce electrical noise and stress on connected components during switching operations, enhancing the reliability and lifespan of electrical devices connected in the control circuit. The screw type terminals provide secure and robust electrical connections, ensuring durable installation.

Operating temperature range from -40°C to 85°C makes this relay suitable for extended industrial and commercial applications. The device has a compact footprint with dimensions of 100 mm length, 73.5 mm width, and 39.5 mm height to facilitate easy integration into control panels.

With an IP20 rating, the relay is protected against solid objects greater than 12 mm, making it suitable for indoor electrical and automation panel environments. The thyristor output type ensures efficient switching performance and compatibility with a variety of AC loads.

This product is manufactured in France, reflecting high European quality standards and compliance with UR approvals ensuring safety and performance. It is ideal for applications such as motor speed variation, dimmable lighting, and heating regulation where precise and noise-reduced relay control is critical.

Supports panel mounting for secure installation. Maximum load current capacity of 40 amperes for robust operation. Rated for maximum load voltage of 460 Vrms for high voltage applications. Control voltage range from 0 to 10 V DC for flexible control inputs.

Zero cross switching function minimizes electrical noise during switching. Terminal type is screw for reliable electrical connections. Operating temperature range from -40°C to 85°C suitable for industrial environments. Compact dimensions: Length 100 mm, Width 73.5 mm, Height 39.5 mm.

IP20 rated enclosure ensuring protection against solid objects. Output type is thyristor allowing efficient solid state switching.

Explore the Celduc Solid State Relay series on EnvMart for reliable and efficient electrical control solutions suited for industrial automation, HVAC, manufacturing, and commercial uses.
