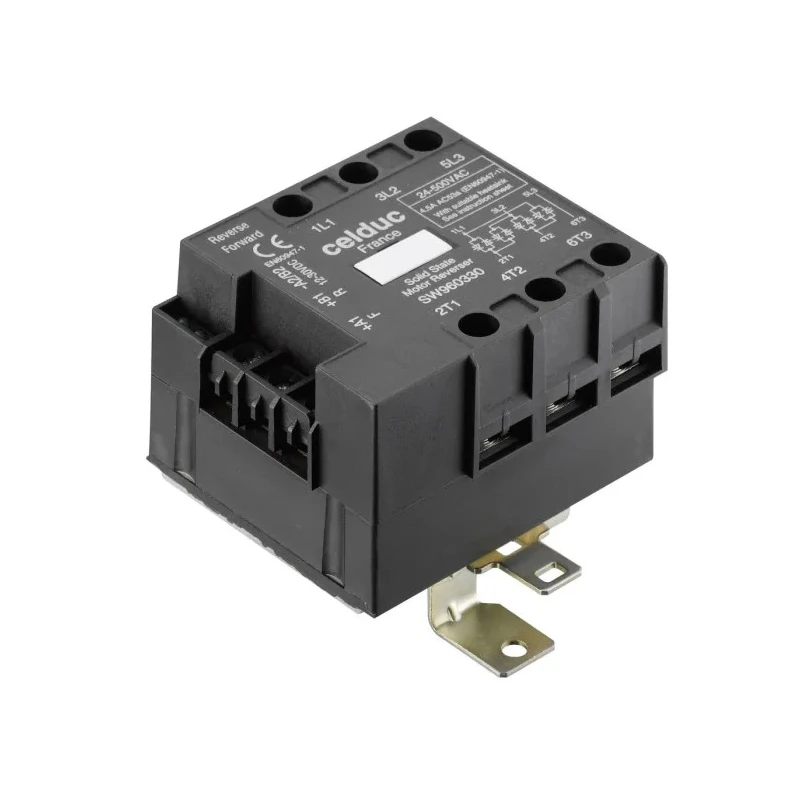

Celduc Solid State Relay SG9-SV9-SW9 Series, 4.5 Arms Load, DIN Rail Mount, 500 V ac Load, 30V Control

Celduc SG9-SV9-SW9 Series Solid State Relay SW960330 is engineered for industrial automation and control applications requiring robust performance and durability. The relay is designed for DIN rail mounting, supporting a maximum load current of 4.5 Arms and a load voltage of up to 500 V ac, making it suitable for controlling motors, machinery, and other high-power electrical equipment.

This solid state relay features a thyristor output type and operates with a control voltage ranging between 3V and 30V, providing flexibility in control systems. The zero cross switching function ensures smooth switching with minimal electromagnetic interference, enhancing system efficiency and longevity.

Built to withstand harsh industrial environments, it operates reliably within a temperature range of -40°C to 100°C and carries an IP20 protection rating, making it suitable for indoor installations where protection from accidental contact is necessary.

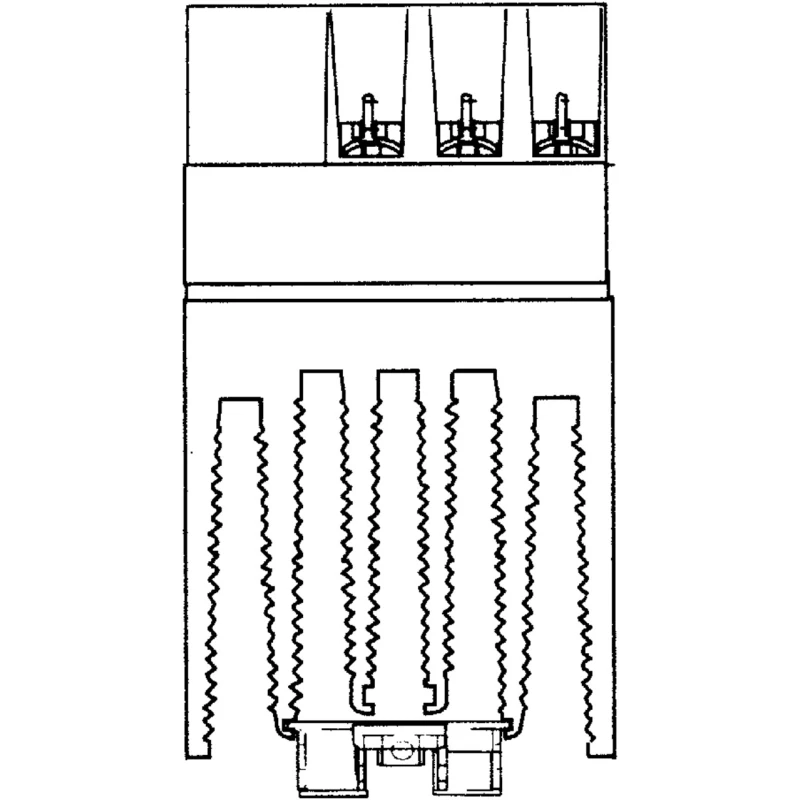

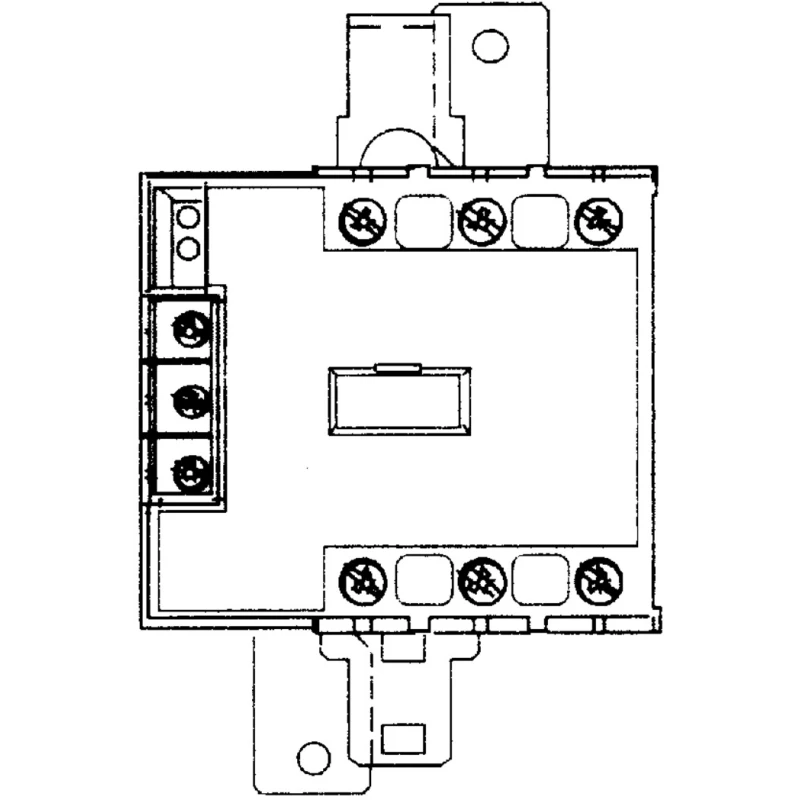

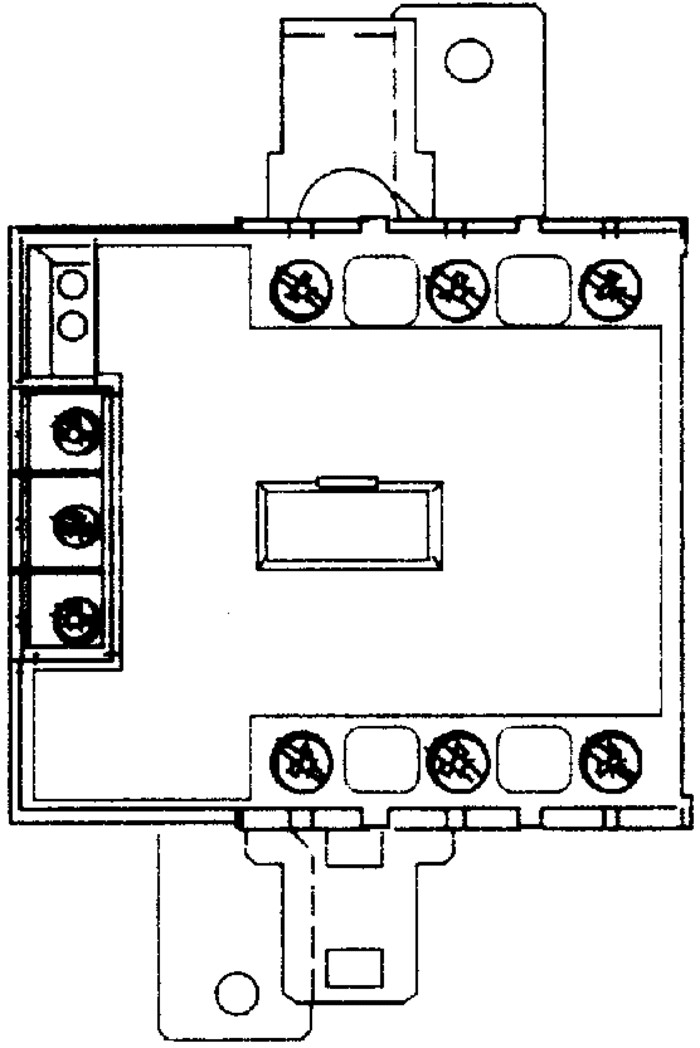

The relay features screw terminals for secure connections, and compact dimensions of 72mm height, 83mm length, and 35mm width to facilitate installation in constrained spaces. It adheres to CE and EAC standards, guaranteeing compliance with international safety and quality benchmarks.

Typical applications include conveyor belts, packaging machines, crane girders, and any industrial processes requiring three-phase motor rotation direction changeover or reliable solid state switching.

Celduc’s SG9-SV9-SW9 Series Solid State Relay is manufactured in France, reflecting high build quality and advanced technology in relay design. This product is ideal for industrial, manufacturing, and automation use cases requiring precise, durable solid state relays mounted on DIN rails for ease of integration and maintenance.

Supports maximum load current of 4.5 Arms for reliable performance. Designed for DIN rail mounting suitable for industrial installations. Operates with a maximum load voltage of 500 V ac for varied applications. Control voltage ranges from 3V minimum to 30V maximum enabling flexible control options.

Features zero cross switching function to reduce switching noise and improve efficiency. Thyristor output type ensures efficient power handling and durability. Capable of operating between temperatures of -40°C to 100°C for harsh environments.

Equipped with screw terminal type for secure electrical connections. Compact dimensions: 72mm height, 83mm length, and 35mm width for space-efficient installation. Rated IP20 for protection against solid objects and suitable environment use.

Conforms to CE and EAC standards ensuring quality and safety compliance. Browse further products in the Solid State Relays category on EnvMart to find compatible controls and accessories tailored to your industrial automation needs.
