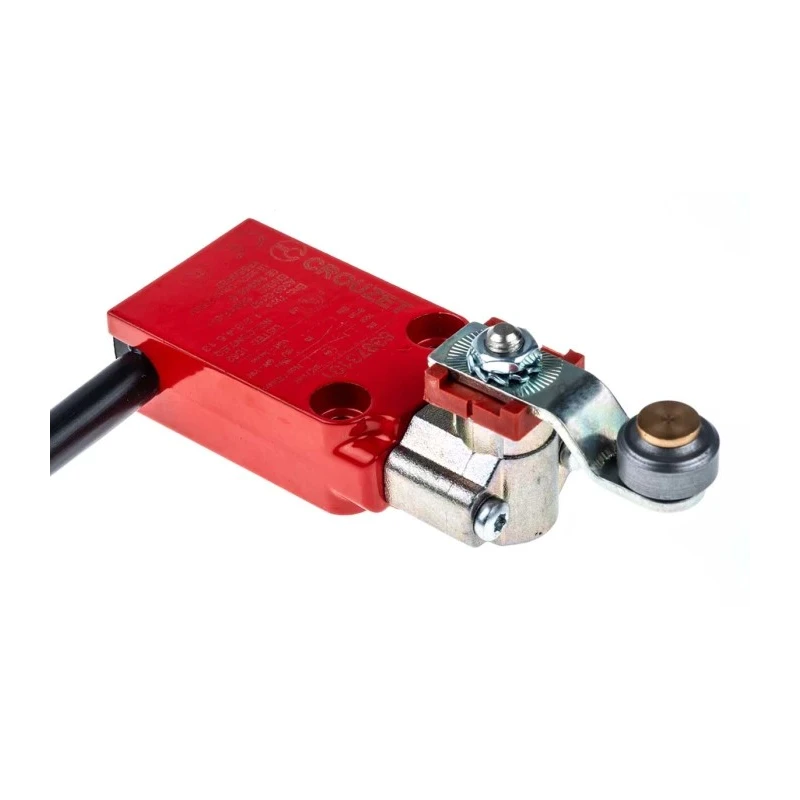

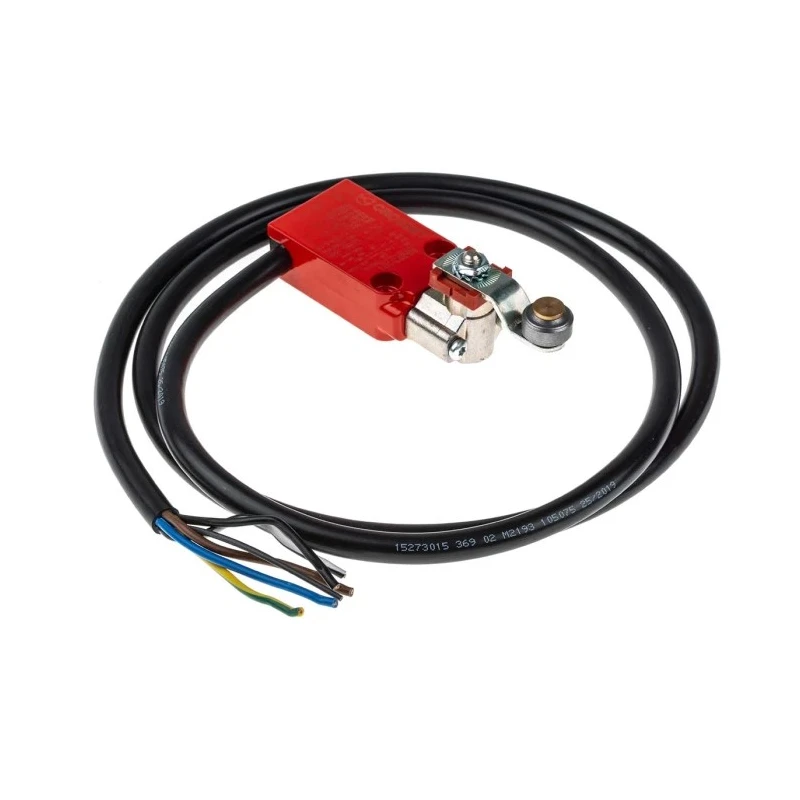

Crouzet Compact Metal Lever Limit Switch 1 NO/1 NC, IP66/IP67, 240V AC, 6A, Metal Housing 83873101
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | Crouzet |
| Length | 76.6mm |
| Model | 83873101 |
| Depth | 31.5mm |
| IP Rating | IP66, IP67 |
| Width | 30mm |
| Housing Material | Metal |
| Series | 83871 |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Top |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Lever |
| Contact Type | Double Break |
| Minimum Operating Temperature | -25°C |
| Switching Current | 6A |
| Terminal type | Cable |
| Standards/Approvals | UL |
| Operating Force | 0.15Nm |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 240V ac |
Key Features
- Equipped with IP66 and IP67 protection, suitable for harsh environments.
- Operates at switching AC voltage of 240V and current rating of 6A.
- Includes metal housing with double break contact type for reliability.

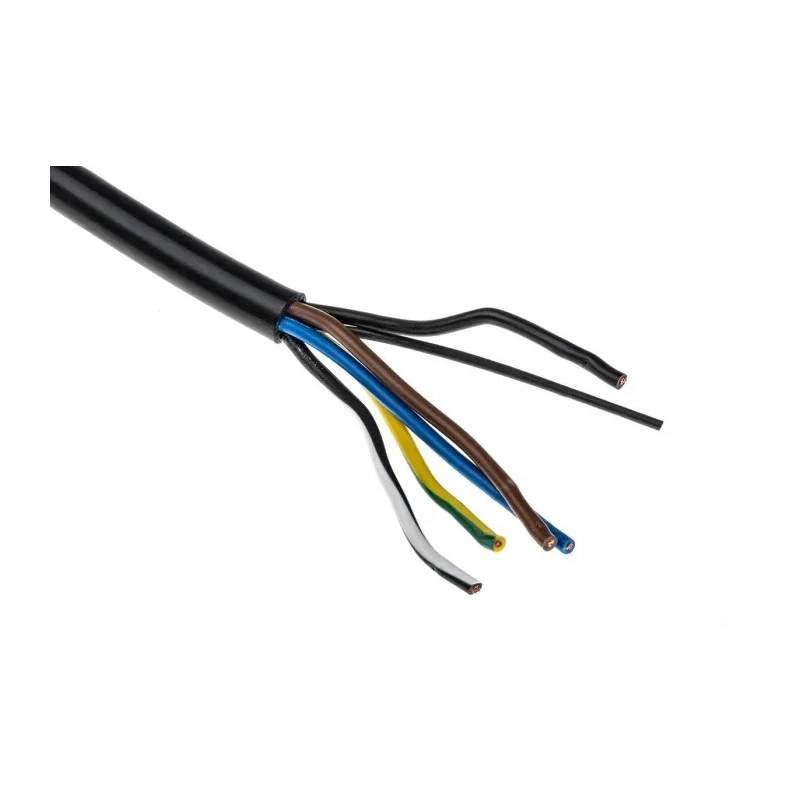

- Fitted with a 1 meter 5-core cable (0.75mm², 7.3mm diameter) for secure connections.
- Designed to operate between -25°C to +70°C temperature range.
- Mechanical life expectancy of 10 million operations ensuring durability.
- Compact dimensions with length 76.6mm, width 30mm and depth 31.5mm.
- Impulse voltage rating of 2500V and insulation voltage of 500V.
Product Description
Crouzet 83873101 lever limit switch is a compact metal limit switch designed for industrial applications requiring robust and reliable position sensing and control. It features a lever actuator type and is equipped with 1 normally open and 1 normally closed double break contacts, providing electrical isolation for enhanced safety and performance.
The switch is rated for switching AC voltage up to 240V and carries a switching current of 6A, making it suitable for a wide range of control circuits. It is designed for harsh industrial environments with IP66 and IP67 ingress protection ratings, ensuring resistance against dust and water ingress.
Manufactured with a robust metal housing, this limit switch includes a fitted 1 meter long 5-core cable (0.75mm² cross-section, 7.3mm diameter) for reliable electrical connection. The device operates reliably within a temperature range of -25°C to +70°C and withstands impulse voltages up to 2500V and insulation voltage of 500V, ensuring safe operation under demanding conditions.
The mechanical life rating of 10 million operations confirms the switch’s durability for long-term industrial use. Compact dimensions of 76.6mm length, 30mm width, and 31.5mm depth allow easy integration into control panels and machinery with top mounting orientation and 20mm pitch mounting holes for secure attachment.
Additional features include an operating force of 0.15Nm and compliance with UL standards (UL508 and UL50), which validates its safety and quality for industrial applications. The product is manufactured in Morocco and designed for use in electrical, automation, control systems, and manufacturing industries.
Compact metal lever limit switch with durable housing and cable output. 1 NO and 1 NC double break contact configuration for flexible switching. IP66 and IP67 rated for dust-tight and waterproof protection. Switching rated at 240V AC and 6A current capacity.
Operates over wide temperature range from -25°C to 70°C. Mechanical life of 10 million operations for high longevity. Impulse voltage 2500V and insulation voltage 500V for safety. Length 76.6mm, width 30mm, depth 31.5mm with top mounting orientation.
UL certified and suitable for industrial automation and control. Includes fitted 1 meter 5-core cable with 0.75mm² cross-section. Explore more Limit Switches and industrial automation components at EnvMart for high quality, reliable control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a switching AC voltage of 240V and has a current rating of 6A.
The dimensions of this unit are 76.6mm in length, 30mm in width, and 31.5mm in depth.
It operates reliably within a temperature range of -25°C to +70°C.
It features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) with double break contact type for enhanced safety.
The mechanical life expectancy of this model is rated at 10 million operations.
This unit has IP66 and IP67 ratings, providing resistance against dust and water ingress.
The limit switch is manufactured with a robust metal housing.
It has an impulse voltage rating of 2500V and an insulation voltage of 500V.
This model utilizes a lever actuator type for position sensing and control.
The operating force required for this unit is 0.15Nm.
It complies with UL standards, specifically UL508 and UL50, ensuring its safety and quality for industrial applications.
It includes a fitted 1 meter long 5-core cable with a cross-section of 0.75mm².
