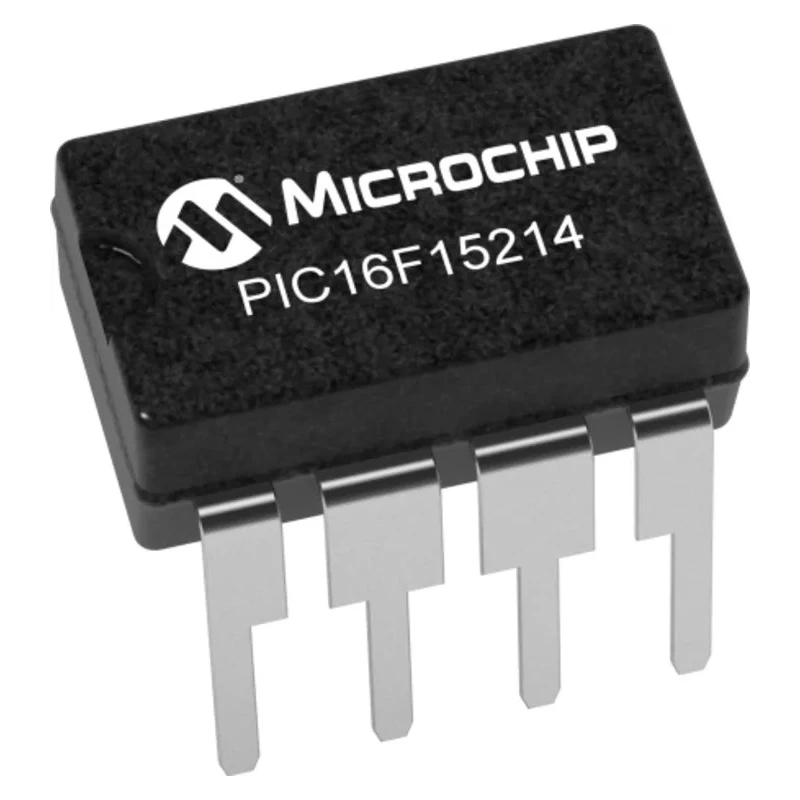

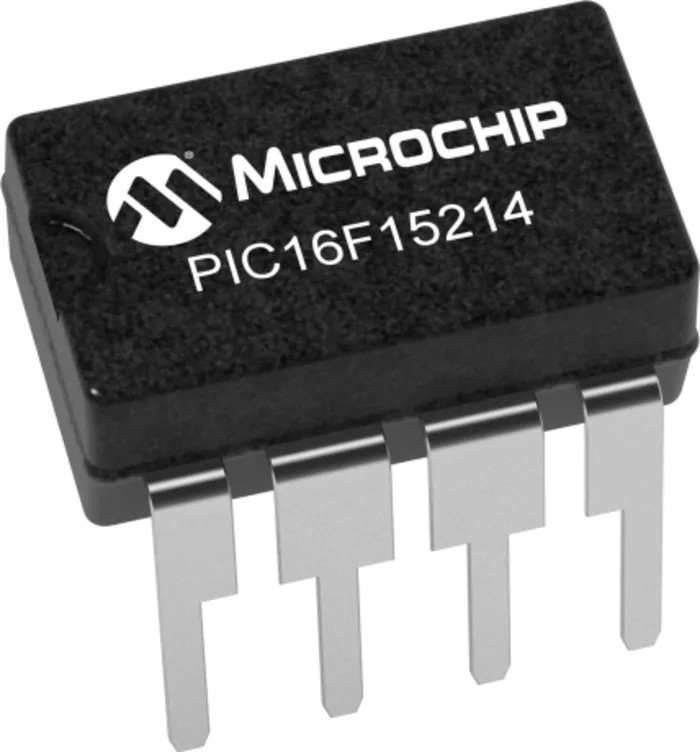

Microchip PIC16F15214-I/P 8-Bit PIC16F Microcontroller 32 MHz 7kB FLASH 8-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC16F15214-I/P |
| Mount Type | Through Hole |
| Series | PIC16 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC16F |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 5 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features a PIC16F device core with RISC architecture for efficient processing.
- Equipped with 7 kB of program memory and 512 bits of RAM for robust performance.
- Operates with a minimum supply voltage of 1.8V and maximum supply voltage of 5.5V.
- Supports up to 32 MHz clock frequency for real-time control applications.
- Includes 5 programmable I/O pins and one timer for versatile control features.
- Incorporates 5 ADC channels with 10-bit resolution for accurate analog input conversion.
- Designed with through-hole mount type and PDIP package for ease of integration.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
Product Description
Microchip PIC16F15214-I/P is an 8-bit PIC16F series microcontroller designed for cost-sensitive sensor and real-time control applications. It features robust RISC instruction set architecture with 7 kB of FLASH program memory and 512-bit RAM memory, enabling efficient code execution and data handling. The device operates at a maximum clock frequency of 32 MHz and supports supply voltages ranging from 1.8 V up to 5.5 V. This microcontroller is housed in an 8-pin PDIP package suitable for through-hole mounting, facilitating easy PCB assembly and prototyping.
The microcontroller offers 5 programmable I/O pins and includes a single timer module for precise timing and control functions. It integrates 5 ADC channels with 10-bit resolution, allowing accurate analog to digital conversions necessary for sensor interfacing and measurement tasks. The module is compliant with RoHS standards ensuring environmentally friendly production and usage. Operating temperature range is industrial grade from -40°C to 85°C, making it suitable for demanding environments in industrial automation, embedded systems, instrumentation, and other electronics projects.
This microcontroller’s compact footprint and versatile features make it ideal for embedded systems designers seeking reliable, low-power solutions.
8-bit PIC16F core with RISC instruction set. 7 kB FLASH program memory and 512-bit RAM. Maximum clock frequency at 32 MHz for fast operations. 5 programmable I/O pins and 1 timer for control tasks. 5 ADC channels with 10-bit resolution for precision sensing.
Through-hole PDIP 8-pin package for easy mounting. RoHS compliant for environmental safety. Industrial temperature range from -40°C to 85°C.
Ideal for electronic manufacturing, embedded application development, real-time sensor control, and low-cost microcontroller projects. Explore more Microchip Microcontrollers on EnvMart for diverse industrial and commercial use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for fast operations in real-time control applications.
It features a program memory size of 7 kB, which is suitable for various embedded applications.
This microcontroller operates within an industrial temperature range of -40°C to 85°C, making it suitable for demanding environments.
The PIC16F15214-I/P includes 5 programmable I/O pins for versatile control features.
It is housed in an 8-pin PDIP package, designed for through-hole mounting, which facilitates easy PCB assembly.
The minimum supply voltage is 1.8V and the maximum supply voltage is 5.5V, allowing for flexible power supply options.
This model incorporates 5 ADC channels with 10-bit resolution for accurate analog input conversion.
The microcontroller has a RAM size of 512 bits, supporting efficient data handling during operations.
It complies with RoHS standards, ensuring environmentally safe manufacturing practices.
The PIC16F15214-I/P uses a RISC instruction set architecture, which enhances processing efficiency.
This microcontroller includes one timer module for precise timing and control functions.
The maximum power dissipation for this model is 800 mW, which is important for thermal management in applications.
