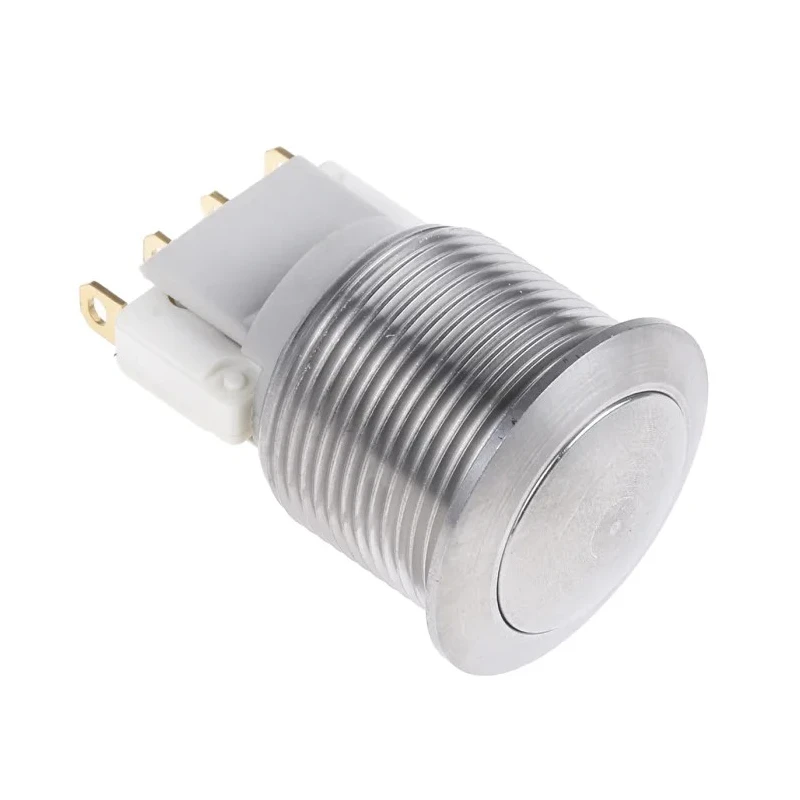

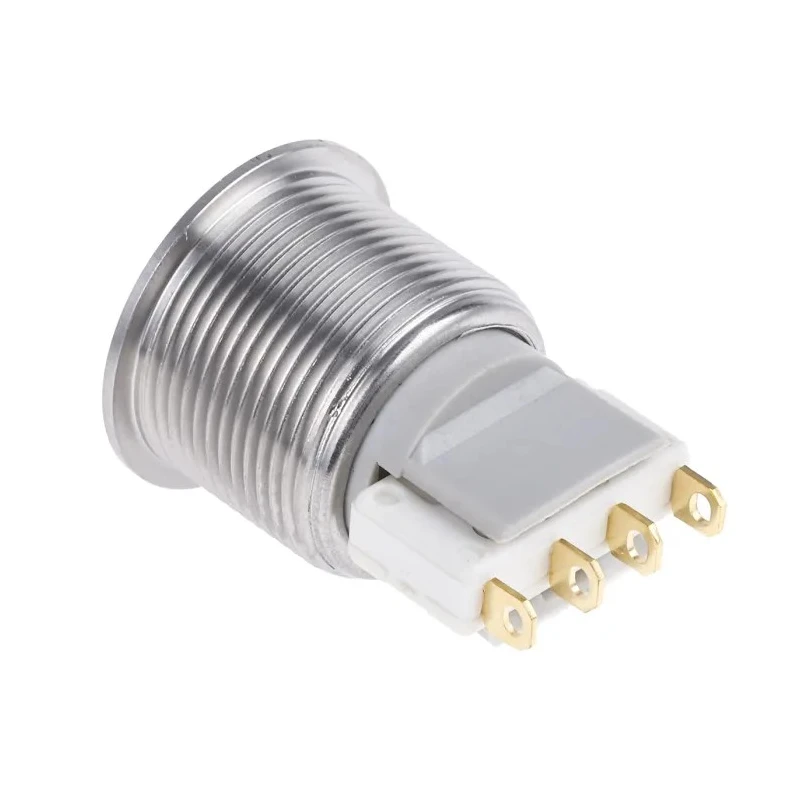

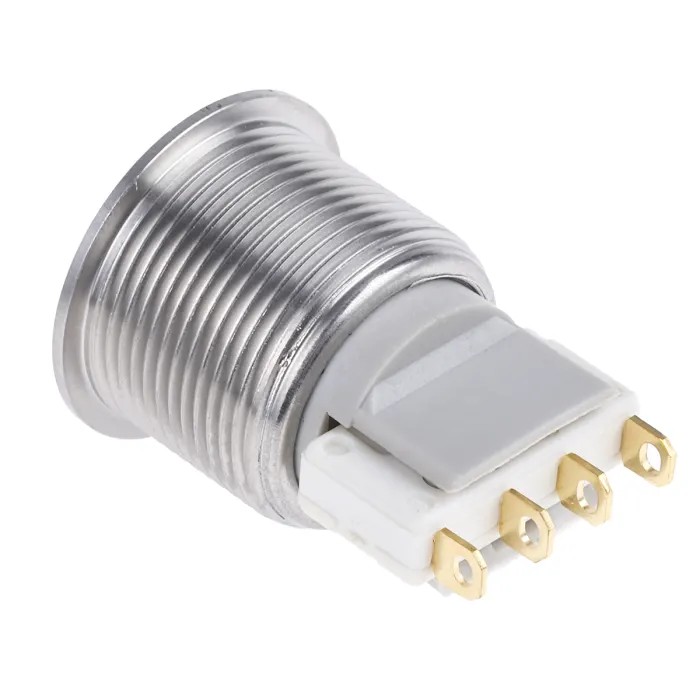

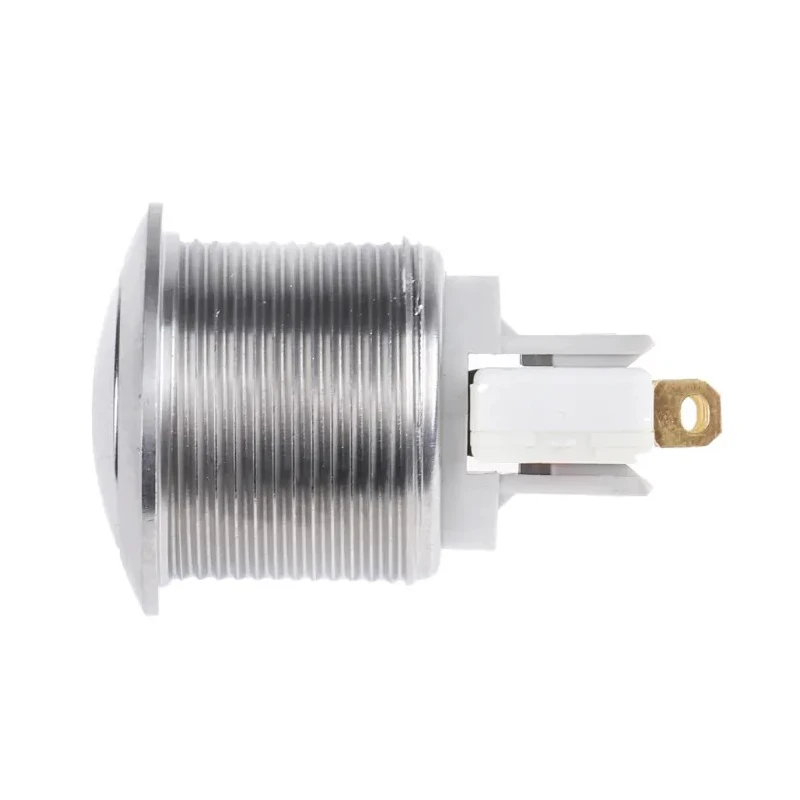

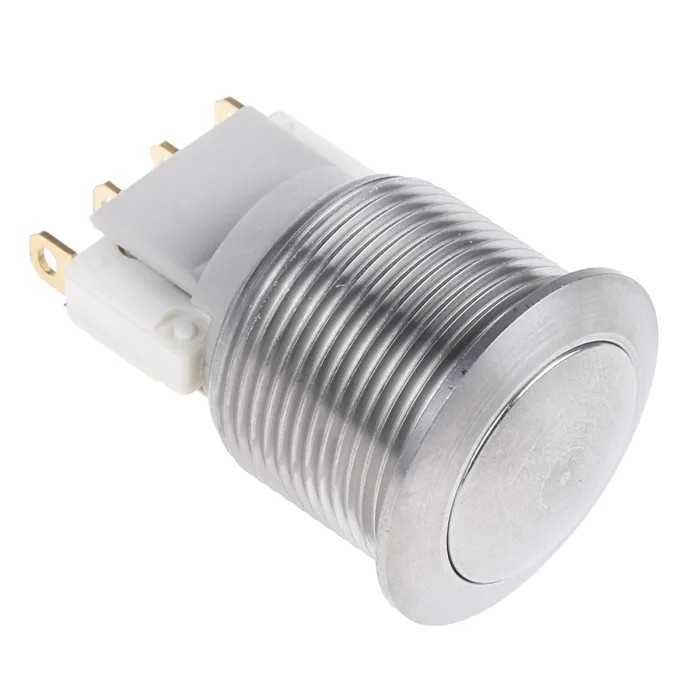

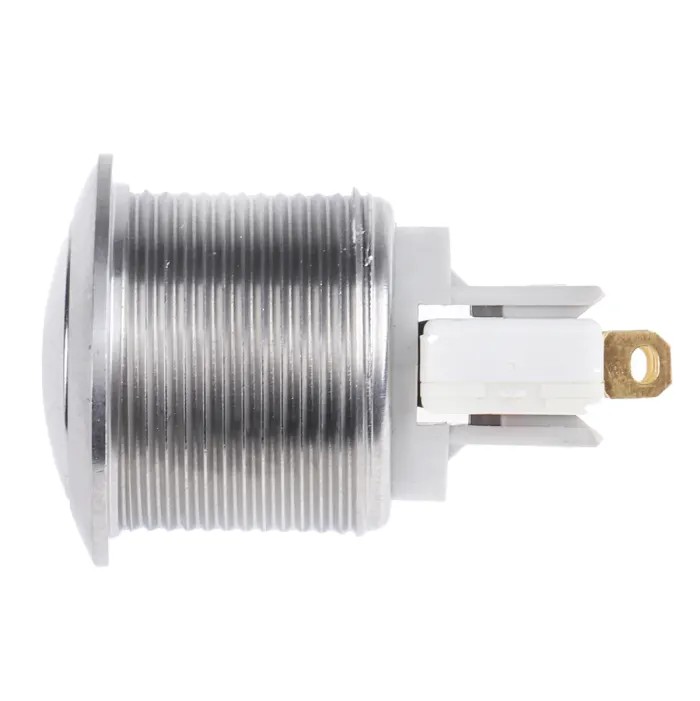

APEM AV Series Push Button Switch Momentary Panel Mount 19.2 mm Cutout SPDT IP65 250 V ac AV19LB407

APEM AV19LB407 is a high-quality push button switch designed for momentary operation with a durable panel mount configuration. Featuring a 19.2 mm cutout, this switch provides Single Pole Double Throw (SPDT) contact configuration allowing both normally open and normally closed contacts. The robust stainless steel bushing and plunger construction ensures excellent durability and resistance against vandalism.

Its IP65 rating guarantees protection against dust and low-pressure water jets, making it ideal for industrial environments requiring reliable sealing. The actuator is silver and round styled, enhancing ease of use and aesthetic integration into control panels.

Designed for seamless panel mounting on thicknesses ranging from 1 to 9 mm, the switch supports a contact current rating of 5A AC at 250 V AC. Compact dimensions with a length of 29.3 mm and width of 22 mm allow efficient use of panel space.

Capable of operating within a temperature range of -25°C to 85°C, this switch is suitable for various industrial, automation, and electrical control applications. Additionally, the product complies with RoHS standards and is manufactured in France, ensuring environmentally responsible production and quality assurance.

The actuator is silver colored with a round style for ease of use. This switch is momentary, ensuring temporary contact during operation. Panel mount type suitable for installation into panels with thickness from 1 to 9 mm.

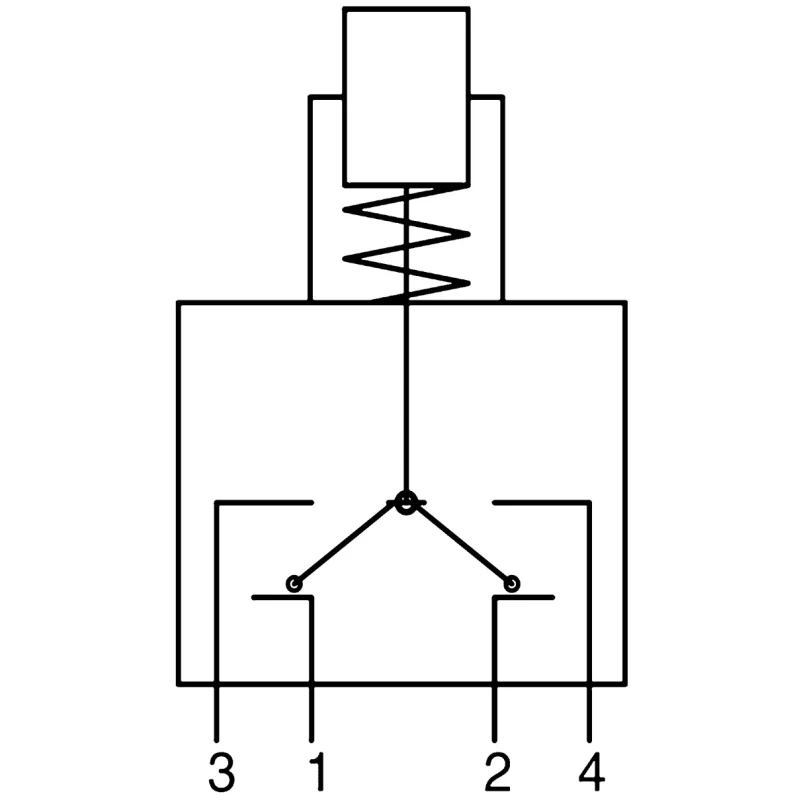

Robust construction with stainless steel bushing and plunger for durability and anti-vandal protection. Designed for harsh environments with IP65 ingress protection rating. Contact configuration is Single Pole Double Throw (SPDT) offering both normally open and normally closed contacts.

Terminal type is solder, enabling reliable electrical connections. Operates safely at up to 250V AC with contact current rating of 5A AC. Compact dimensions with length 29.3 mm and width 22 mm makes it suitable for varied panel layouts.

Operational temperature range from -25°C to 85°C ensures suitability for diverse industrial applications. RoHS compliant and manufactured in France, ensuring high standards and environmental safety.

This APEM push button switch is ideal for applications in electrical panels, industrial automation systems, machinery controls, and other environments where robust momentary switching is required. Explore more Push Button Switches and electrical components at EnvMart for your industrial and commercial needs.
