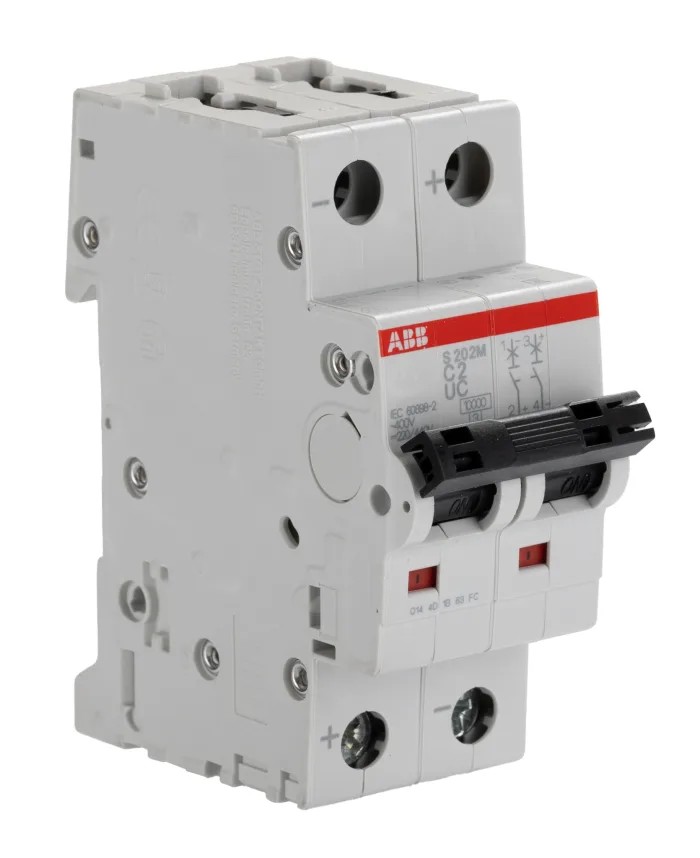

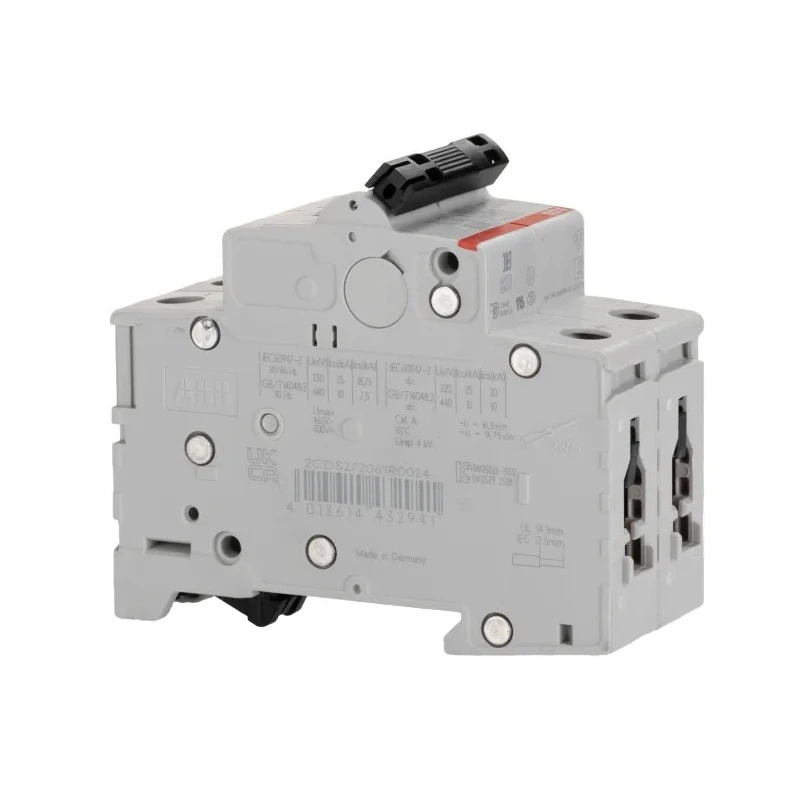

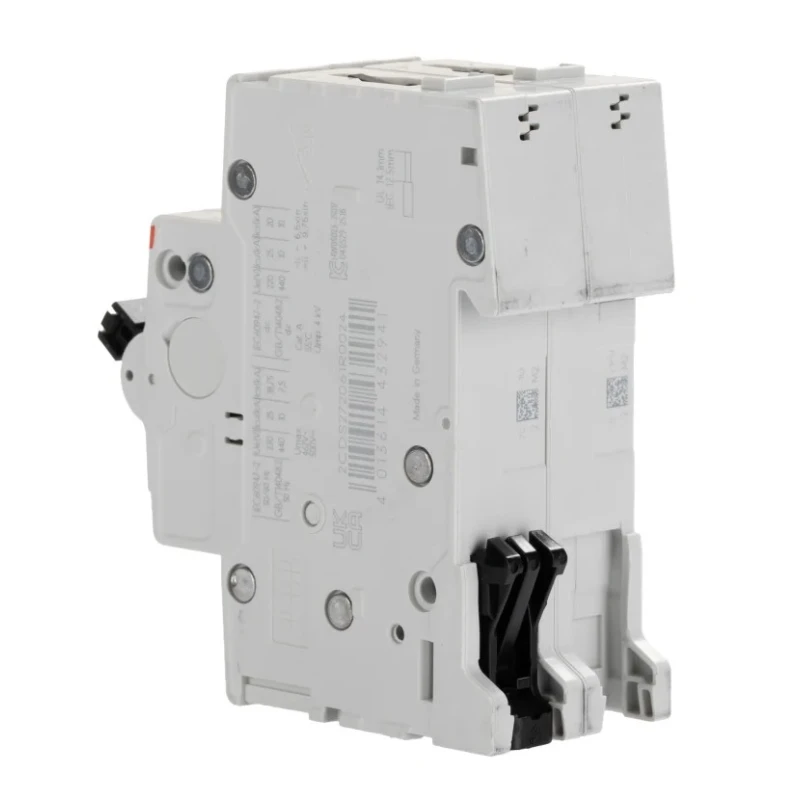

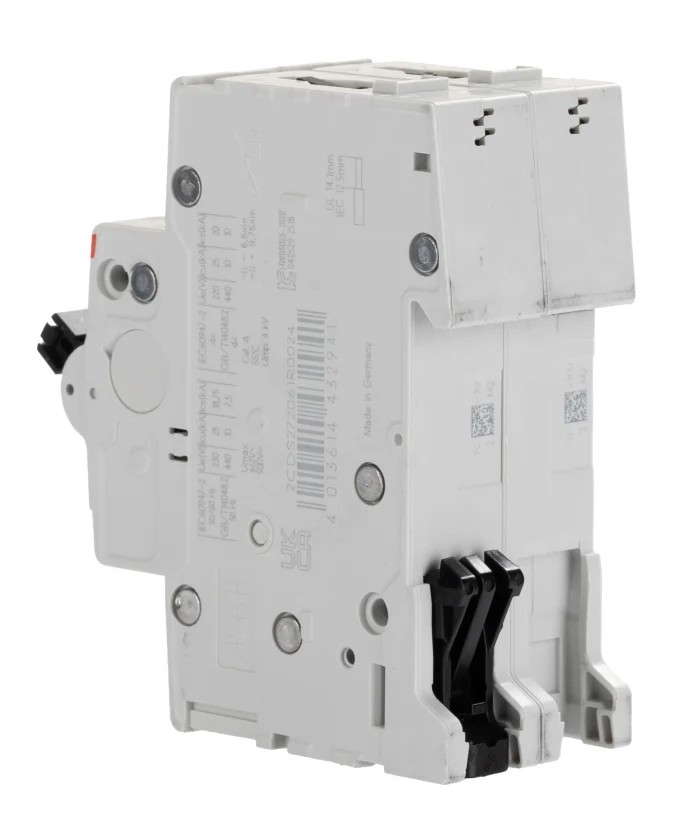

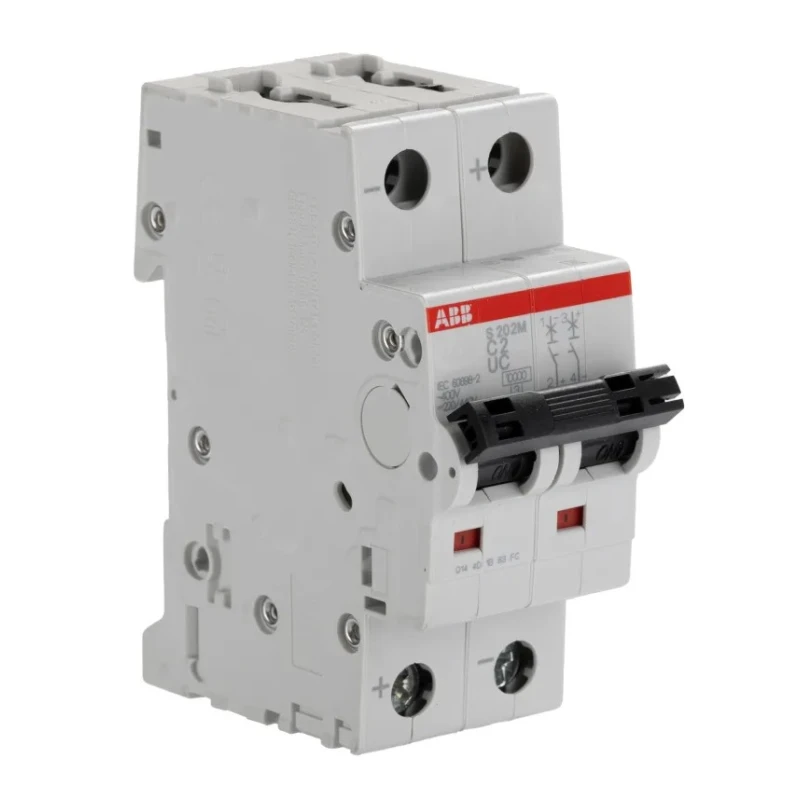

ABB System Pro M Compact S200 M UC Miniature Circuit Breaker, 2-Pole, 2A, Type C, 440V 2CDS272061R0024 S202 MUC C 2A 10 KA
Specifications
| Country of Origin | India |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 69mm |
| Model | 2CDS272061R0024 S202 MUC C 2A 10 KA |
| Depth | 69mm |
| IP Rating | IP40, IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | S200 M UC |
| Terminal type | Screw |
| Breaking Capacity | 25kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 500V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermomagnetic, Electromagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Supports both AC 440V and DC 500V voltage ratings for versatile applications.
- High breaking capacity of 25 kA ensures safety during short circuits.
- Compact 2-pole design suitable for DIN rail mounting.
- Thermomagnetic and electromagnetic tripping mechanisms for precise protection.
- Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards.
- Features IP40 and IP20 ingress protection ratings for indoor use.
- Toggle switch actuator allows easy operation and reset.
- Suitable for solar power systems, industrial automation, residential and commercial electrical installations.
Product Description
ABB 2CDS272061R0024 S202 MUC C 2A 10 KA Miniature Circuit Breaker is designed for high reliability in both AC and DC circuit protection. Rated at 2A current with a type C tripping characteristic, this breaker efficiently protects electrical circuits from overcurrent conditions.
Operating at 440V AC and 500V DC, it offers a robust breaking capacity of 25 kA, suitable for handling sudden short-circuit events. The device features a compact 2-pole form factor that mounts easily on a standard DIN rail, optimizing space within electrical panels.
Its tripping mechanisms combine thermomagnetic and electromagnetic technology to provide accurate and rapid response to overloads and short circuits. The toggle switch actuator ensures simple manual reset and control operations.
Built to the IEC/EN 60947-2 and IEC/EN 60898-1 standards, it guarantees adherence to international safety and performance requirements. The dual IP40 and IP20 ingress protection ratings make it suitable for protected indoor environments, shielding the device from dust and unauthorized access.
This Miniature Circuit Breaker is ideal for applications in solar power supply systems, industrial automation equipment, residential buildings, commercial lighting control, and motor protection for electrical machinery. Installation requires mounting on a standard DIN rail with correct polarity maintained for DC circuits.
Regular maintenance involves inspection of connections and verification of device function under specified conditions to ensure sustained performance. For outdoor installations, it is recommended to use appropriate enclosures to protect against environmental factors.
Supports both AC 440V and DC 500V voltage ratings for versatile applications. High breaking capacity of 25 kA ensures safety during short circuits. Compact 2-pole design suitable for DIN rail mounting. Thermomagnetic and electromagnetic tripping mechanisms for precise protection.
Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards. Features IP40 and IP20 ingress protection ratings for indoor use. Toggle switch actuator allows easy operation and reset. Suitable for solar power systems, industrial automation, residential and commercial electrical installations.
For more industrial automation and circuit protection solutions, explore the dedicated ABB category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 25 kA, ensuring safety during short circuits.
This circuit breaker supports AC voltage ratings of 440V and DC voltage ratings of 500V.
The current rating of this model is 2A.
It features a compact 2-pole design suitable for DIN rail mounting.
It utilizes both thermomagnetic and electromagnetic tripping mechanisms for precise protection.
The dimensions are 69mm in height, 69mm in depth, and 35mm in width.
It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards.
It features IP40 and IP20 ingress protection ratings for indoor use.
It has a toggle switch actuator that allows for easy operation and reset.
It is suitable for applications in solar power systems, industrial automation, and residential and commercial electrical installations.
It uses screw type terminals for connections.
This model is part of the S200 M UC series.
