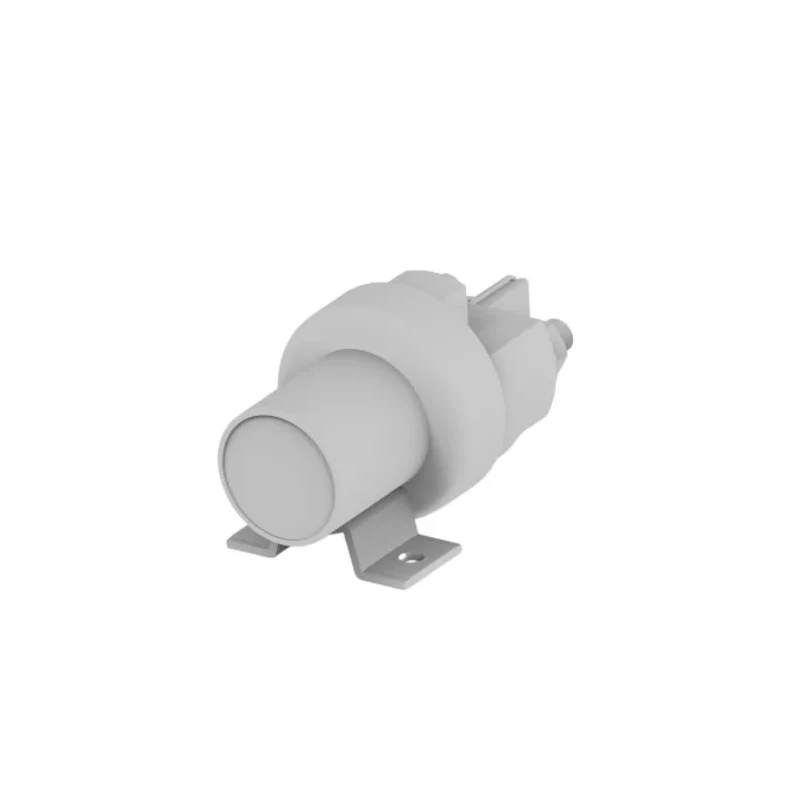

TE Connectivity Surface Non-Latching Relay 28V dc Coil 100A Switching Current SPST 26-60-05
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Height | 98mm |
| Length | 135mm |
| Width | 62mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | KISSLING 26 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 100A |
| Terminal type | Screw |
| Standards/Approvals | RoHS, IEC 60529 |
| Coil Resistance | 3.6Ω |
| Coil Voltage | 28V dc |
| Coil Power | 8W |
Key Features
- Features a durable silver alloy contact material for reliable conductivity.
- Supports screw terminal mounting on surface for secure installation.
- Coil resistance is 3.6Ω with a coil power rating of 8W.
- Operates efficiently in temperature ranges from -55°C up to 85°C.
- Conforms to RoHS and IEC 60529 standards with sealed IP6K9K housing.
- Offers military grade shock and vibration resistance up to 30G and 10G respectively.
- Dual-coil monostable relay system ideal for industrial and automotive power control.
- Manufactured in Germany ensuring quality and reliability.
Product Description
TE Connectivity 26-60-05 surface non-latching relay incorporates a 28V dc coil designed for robust industrial applications requiring high switching currents up to 100 amperes in a single pole single throw (SPST) configuration. The relay features an optimized magnetic circuit enabling outstanding shock and vibration resistance, making it suitable for demanding automotive, industrial, and power relay applications.
It is mounted on surface using screw terminals, providing secure and stable electrical connections. The relay construction includes a sealed housing that conforms to IP6K9K standards, protecting it against dust ingress and high-pressure water jets, enhancing durability in harsh environments.
The contact material is premium silver alloy ensuring excellent conductivity and longevity in operation. Operating temperatures range from -55°C to 85°C, accommodating a wide spectrum of industrial settings. Coil power consumption is 8W with coil resistance measured at 3.6 ohms, supporting efficient coil operation within the relay system.
This relay is part of the KISSLING 26 series, recognized for its military-grade performance meeting the MIL-R-6106 standards. It withstands shock loads up to 30G and vibration levels of 10G, ensuring reliable operation in rugged conditions encountered in automotive and heavy machinery domains.
Durable and high conductivity silver alloy contact material. Screw terminal type for reliable surface mounting. Exceptional shock and vibration resistance for harsh environments. Sealed IP6K9K rated housing protects from dust and water.
Wide operating temperature range from -55°C to 85°C. Compact dimensions measuring 135mm x 98mm x 62mm. Compliant with RoHS and IEC 60529 standards. Dual coil monostable design for enhanced operational performance. Manufactured in Germany ensuring highest quality standards.
This TE Connectivity relay is ideal for power switching applications in industrial, automotive, manufacturing, and control systems. Its reliability and compliance with international standards make it a trusted component in critical control circuits. Explore more high-quality Relays and power switching solutions in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 100A.
The coil voltage rating for this model is 28V dc.
This relay measures 135mm in length, 98mm in height, and 62mm in width.
It supports surface mounting using screw terminals for secure installation.
The coil power rating is 8W.
The operating temperature range is from -55°C to 85°C.
The contacts are made from a durable silver alloy, ensuring reliable conductivity.
It conforms to RoHS and IEC 60529 standards.
It is designed to withstand shock loads up to 30G and vibration levels of 10G.
This relay is part of the KISSLING 26 series.
This relay is manufactured in Germany.
The coil resistance is measured at 3.6Ω.
