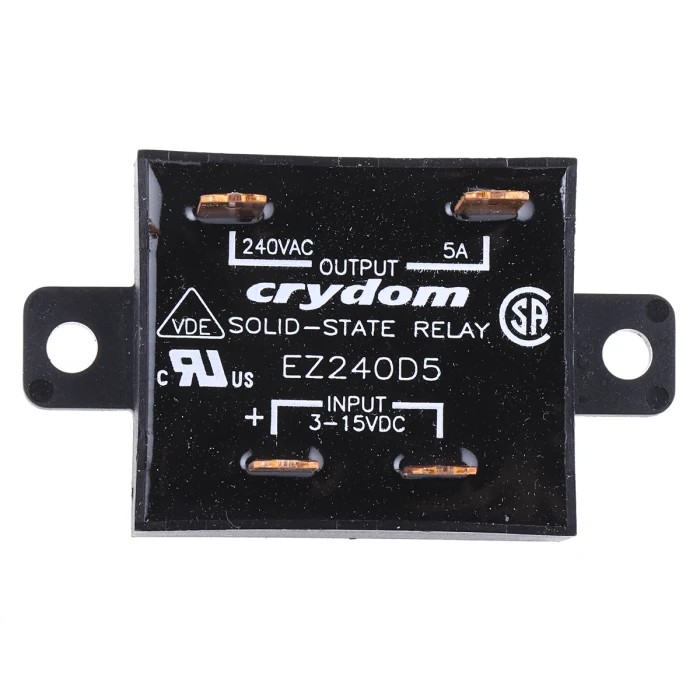

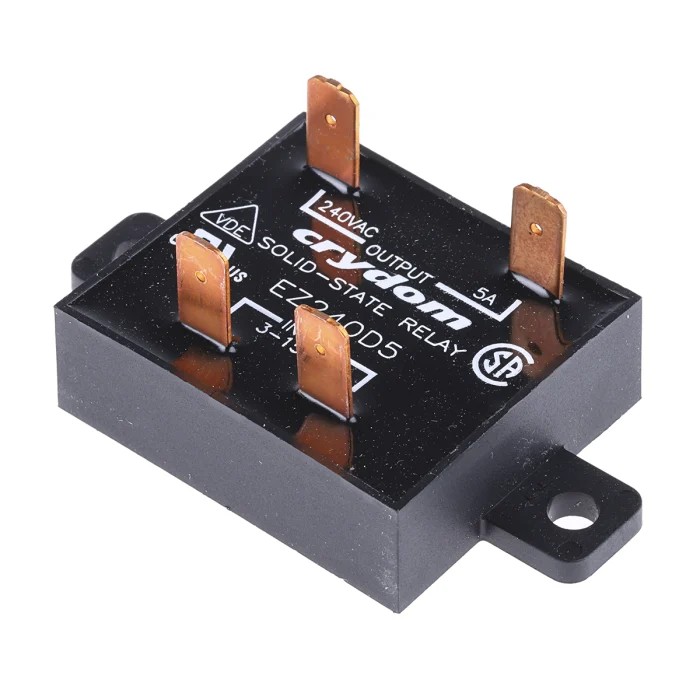

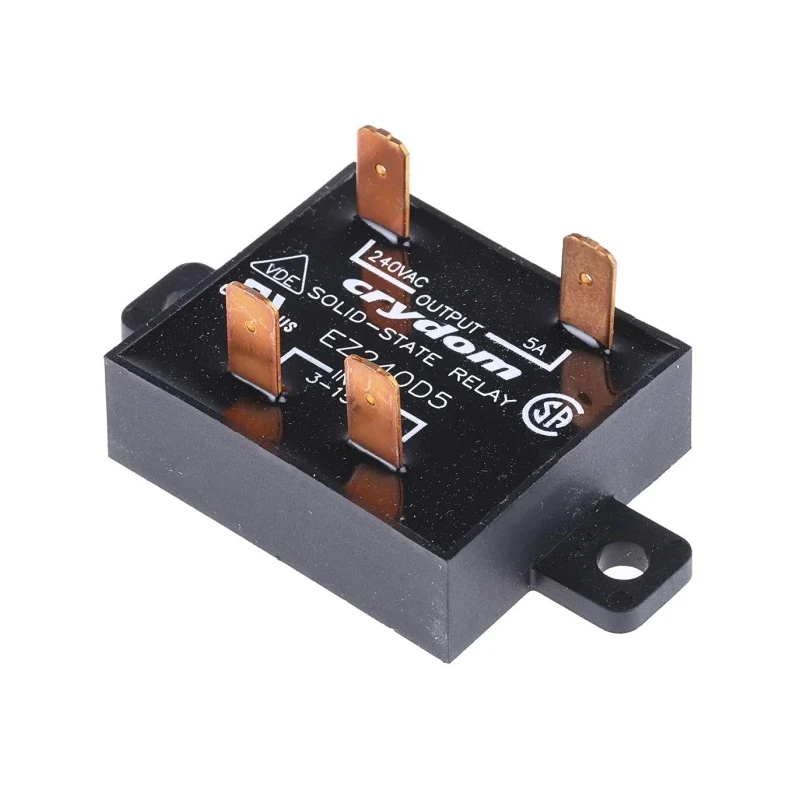

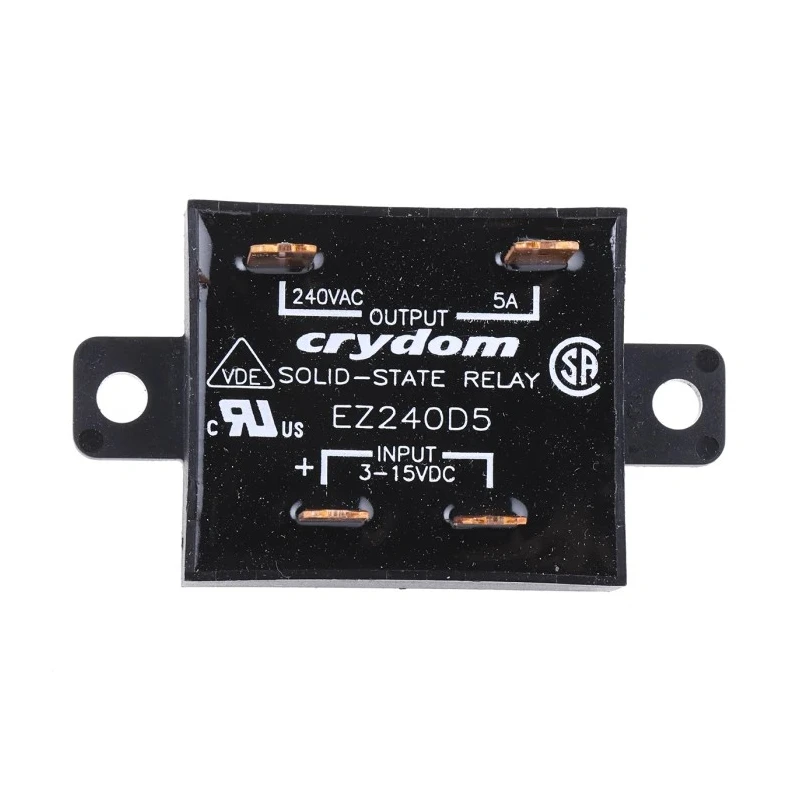

Crydom EZ Series Solid State Relay 5 A Load Panel Mount 280 V Load 15V dc Control EZ240D5

The Crydom EZ240D5 is a high-quality Solid State Relay designed for industrial and automation applications requiring stable isolated switching between control and load circuits. It features an SCR output type capable of handling a maximum load current of 5A with a load voltage range from 24 to 280 V AC, making it ideal for a variety of high-power equipment such as conveyor systems and compressors.

This relay incorporates a zero-cross switching function which reduces electrical noise and power loss during switching operations, improving the reliability and longevity of connected equipment. The panel mount design and screw terminal connections ensure robust mechanical and electrical installation.

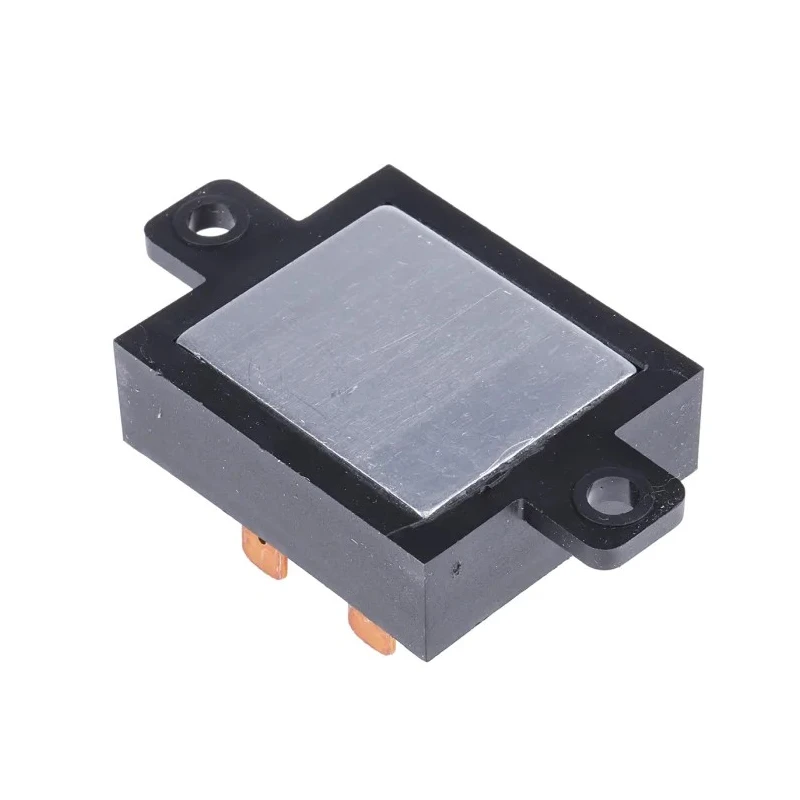

Constructed with thermally conductive epoxy encapsulation, the EZ240D5 effectively dissipates heat generated during operation, allowing for safe and continuous performance even in harsh industrial environments with temperatures ranging from -40°C to +80°C.

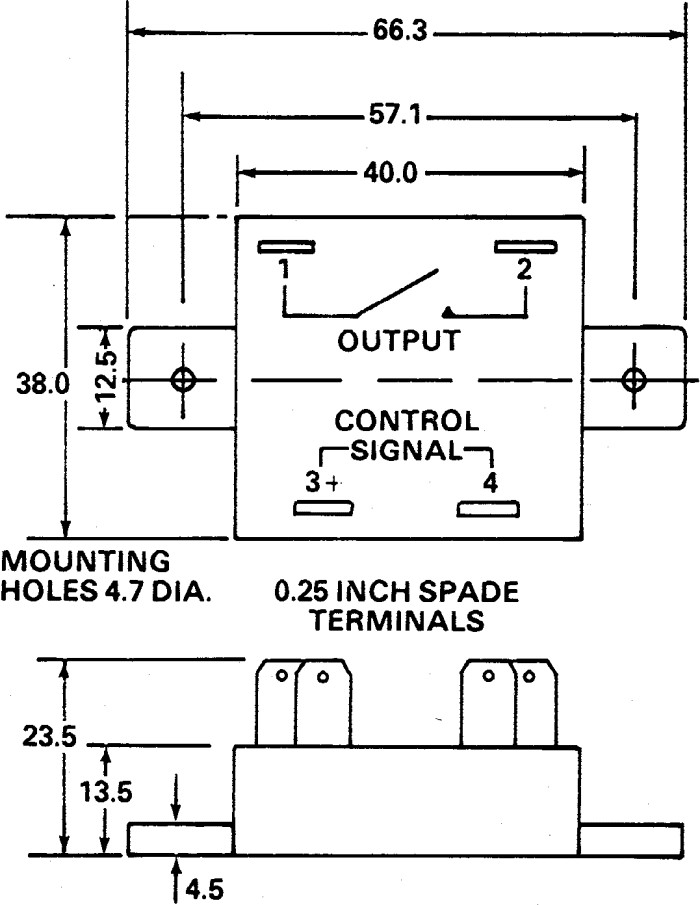

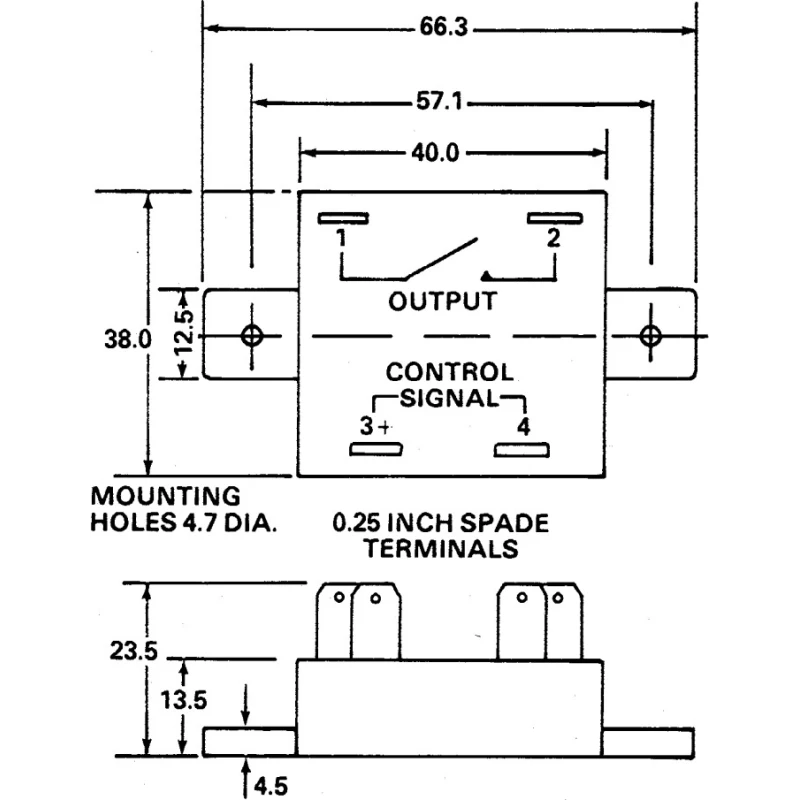

With compact dimensions (13.9 x 43.9 x 24.1 mm), this relay maximizes space utilization on control panels or PCBs without compromising durability. It meets major safety and environmental certifications including CSA, RoHS, and UR standards, guaranteeing performance and compliance.

The relay also features excellent dielectric strength of 4000 Vrms and a low off-state leakage current of 0.1 mA, providing safe insulation and minimal energy loss. The product is manufactured in Mexico ensuring quality control and traceability in production.

Supports 5 A load current with SCR output for reliable switching. Wide load voltage range of 24 to 280 V AC compatible with various systems. Zero cross function reduces electrical noise and power loss. Panel mount with screw terminal for firm and easy installation.

Thermally conductive epoxy encapsulation enhances heat dissipation. Operates safely between -40°C and 80°C in demanding environments. Compact size improves panel space efficiency. Complies with CSA, RoHS, and UR safety standards.

Dielectric strength of 4000 Vrms enhances insulation safety. Manufactured in Mexico ensuring consistent quality.

This Crydom EZ Series Solid State Relay is suitable for industrial, manufacturing, automation, HVAC, and process control applications requiring fast and noise-free switching. It is an excellent choice for designers and engineers seeking durable, compact, and compliant SSR solutions. Explore the Electronics & Electricals category for more high-performance Crydom relays and automation components at EnvMart.
