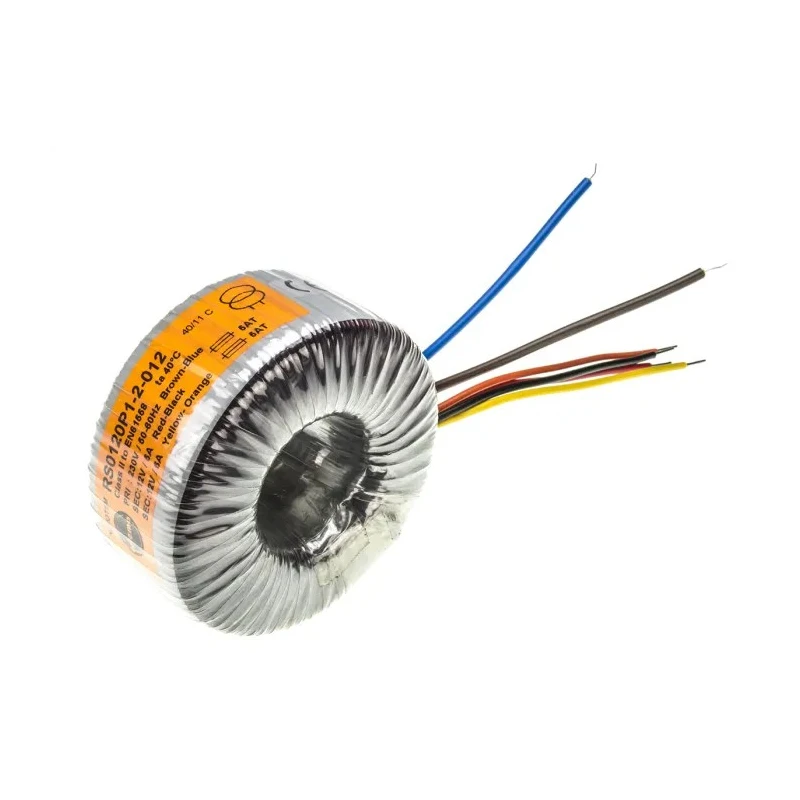

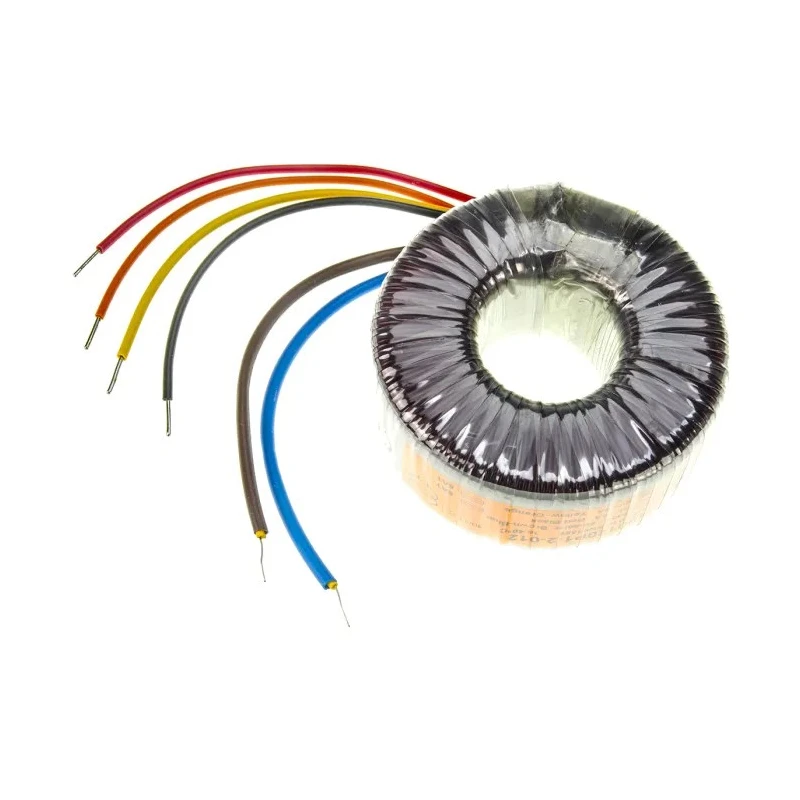

Nuvotem Talema 230 V ac 2 x 12 V ac Toroidal Transformer 2 Output 120 VA, BS415, UL5 (File E15495), EN60065 0120P1-2-012

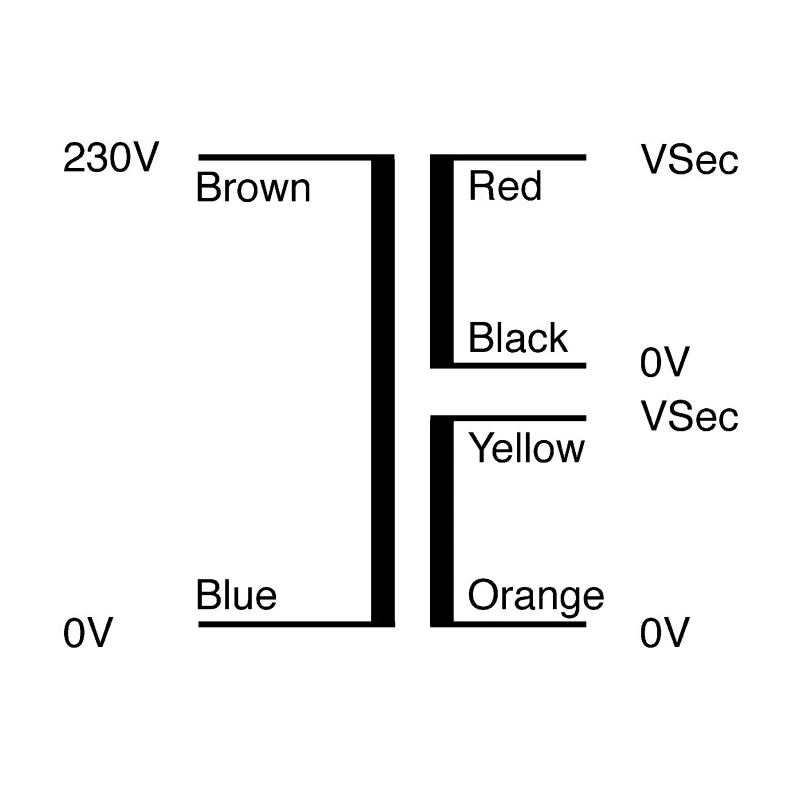

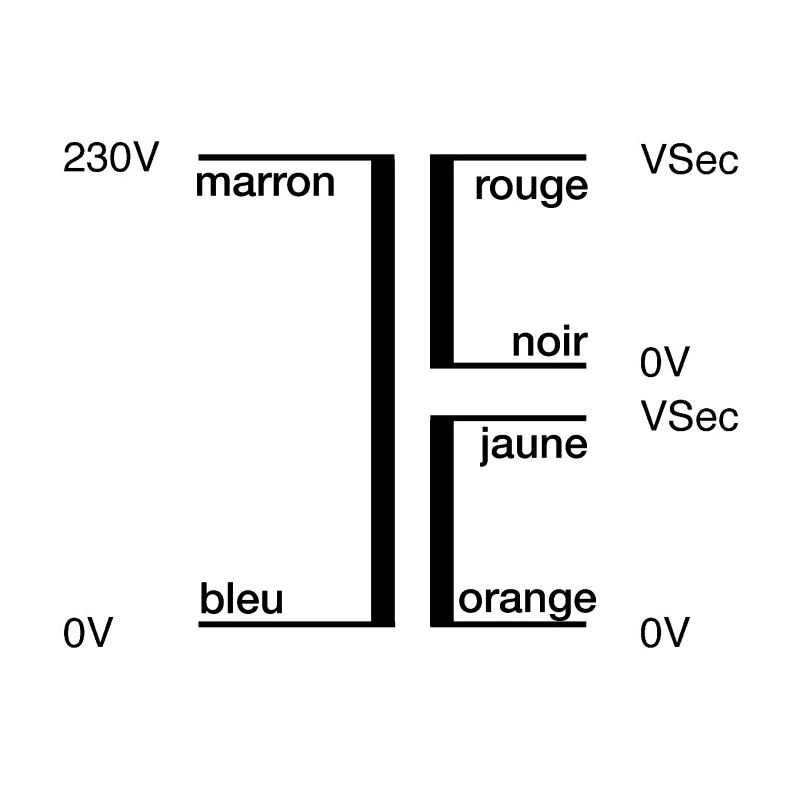

Nuvotem Talema 0120P1-2-012 Toroidal Transformer is engineered for industrial, electronic, and power supply applications requiring reliable low noise and compact design. This toroidal transformer features a nominal primary voltage of 230 V ac and dual 12 V ac secondary outputs delivering 120 VA power capacity. The twin secondary windings allow flexible connection options including series, parallel, or independent use.

The transformer has a compact form factor with a diameter of 93 mm and height of 46 mm, making it suitable for installations with limited space. Operating frequency ranges from 50 Hz to 450 Hz, qualifying it for diverse power applications.

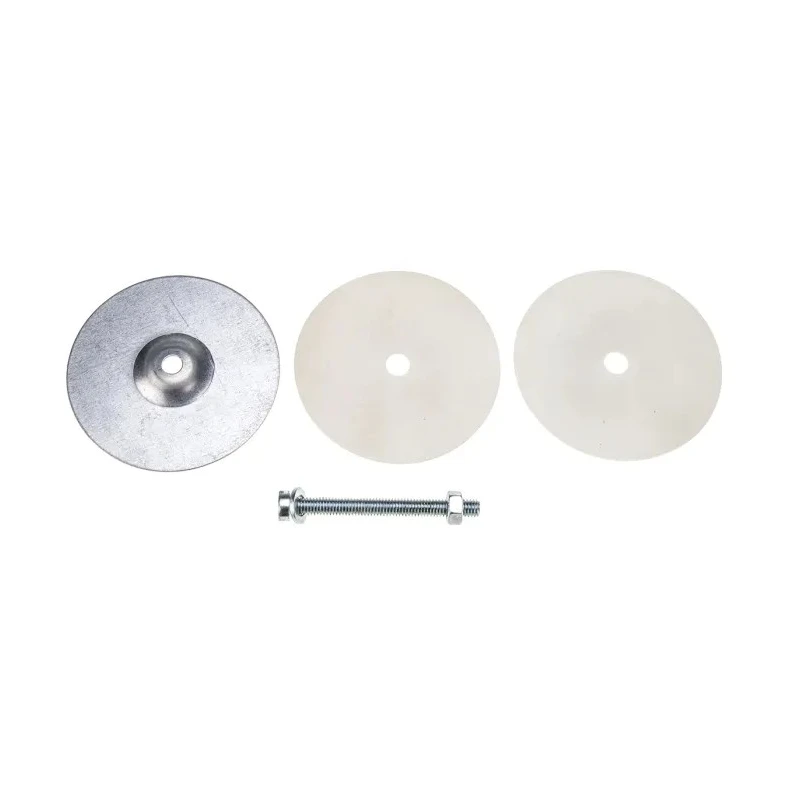

Constructed with copper conductor termination wires and designed for screw mount installation, this product includes a full mounting kit for secure and convenient mounting.

It meets stringent safety and quality certifications, including BS415, UL5 (File E15495), EN60065, EN61558 (DEKRA certificates 161054.01 and 161054.0), UL506, and VDE0550 standards. The copper winding is double insulated, ensuring electrical safety and longevity. It is engineered to withstand operating temperatures up to 180°C.

This high-performance toroidal transformer generates an extremely low magnetic field and reduced hum noise relative to traditional lamination transformers. The open style design enhances airflow and cooling, contributing to efficiency and durability.

Typical use cases include industrial power supplies, electronic equipment, HVAC systems, manufacturing controls, and commercial electrical applications.

A full mounting kit is included for ease of installation. Users should avoid electrical faults by ensuring fixing bolts do not create shorted turns against metal chassis or framework.

Choose Nuvotem Talema Toroidal Transformers for dependable, high-quality power conversion with compact size and certified safety standards. Designed with an open style and leads for easy integration in power supplies. Features twin secondary windings which can be connected in series, parallel, or used separately.

Compact diameter of 93 mm and height of 46 mm optimizing installation space. Operates at frequencies from 50 Hz up to 450 Hz for versatile use. Constructed with copper conductor termination wire for superior connectivity.

Includes a full mounting kit with screw mount type for secure installation. Primary and secondary windings are double insulated for enhanced safety. Certified to standards BS415, UL5 (File E15495), EN60065, EN61558, UL506, and VDE0550.

Maximum operating temperature of 180°C supports demanding environments. Weighs approximately 1.2 kg, ensuring balance between durability and portability. Explore additional Nuvotem Talema transformers and related products on EnvMart for more power supply solutions and certified electrical components.
