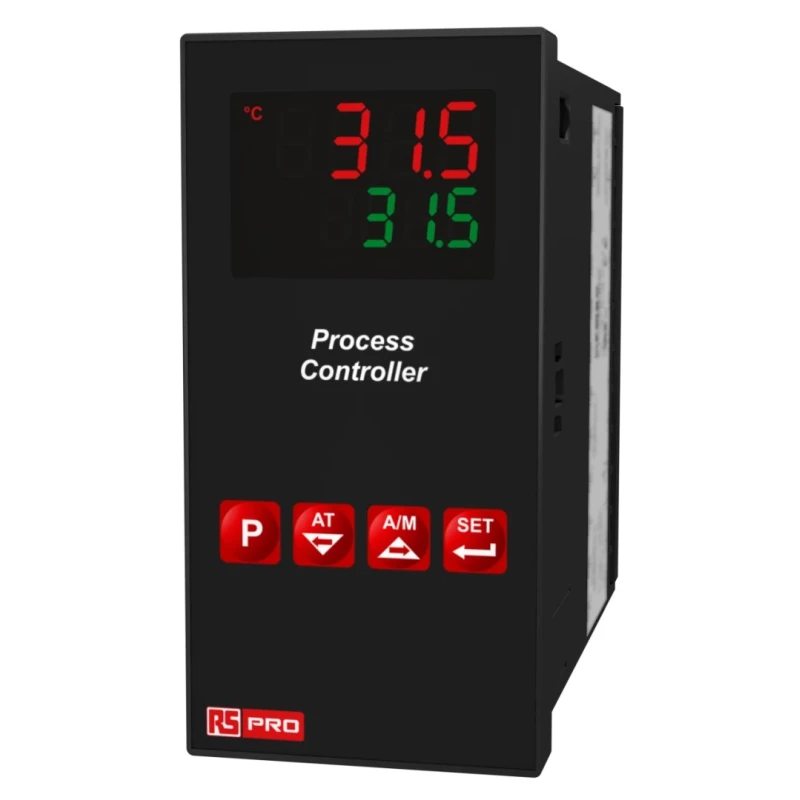

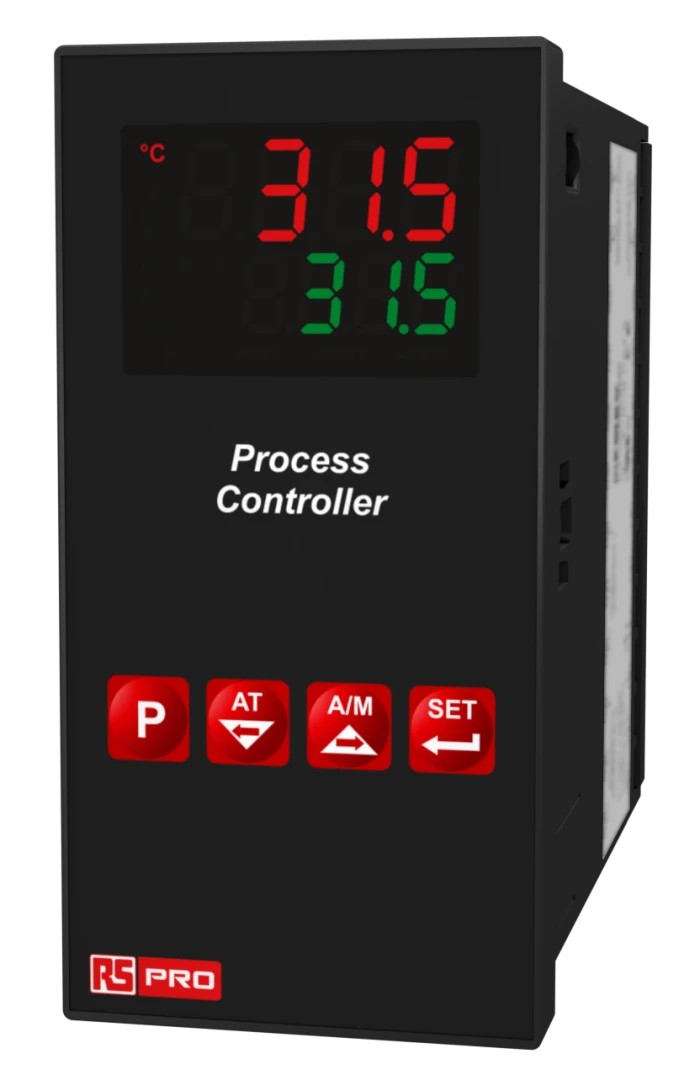

RS PRO Panel Mount PID Temperature Controller 3 Input, 3 Output Relay, SSR 240V, LED Display 222-8154
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Dimensions | 48 mm x 96 mm 86.5 mm |
| Length | 48mm |
| Model | 222-8154 |
| IP Rating | IP20, IP65 |
| Width | 96mm |
| Mount Type | Panel Mount |
| Number of inputs | 3 |
| Output type | Relay, SSR |
| Series | RS PRO |
| Input Type | Thermocouple, RTD |
| Maximum Operating Temperature | 50°C |
| Control Type | PID Controller, On-Off |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 5A |
| Sensor Input | Selectable by configuration parameters L (DIN43710), J, K, R, T, S, B, E, N (IEC584.1) (ITS90) |
| Number of outputs | 3 |
| Supply Voltage | 100 → 240 V ac, 50/60 Hz |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 240V |
Key Features
- Supports universal sensor inputs including thermocouple and RTD types.
- Features PID control with auto-tune and self-tune capabilities for accurate temperature regulation.
- Operates with supply voltage from 100 to 240 V AC, 50/60 Hz.
- LED display with 4 digits for process value (PV) and set value (SV) for clear monitoring.
- Compact design with dimensions 48 mm by 96 mm by 86.5 mm, suitable for panel mounting.
- Includes programmable heating, cooling, and alarm functions for versatile control.
- Maximum current rating of 5 A with maximum operating temperature of 50°C.
- IP20 and IP65 ratings provide protection in industrial environments.
Product Description
RS PRO 222-8154 Panel Mount PID Temperature Controller is a versatile and high-quality digital process controller engineered for precise temperature and process control in industrial environments. This device provides universal input capability for a wide range of sensors including thermocouples and RTD types, ensuring broad application compatibility.
The controller features a dual setpoint with 3 inputs and 3 outputs, supporting relay and SSR outputs, which enables effective control of heating and cooling processes. With an advanced PID control algorithm, including auto-tune and self-tune functionality, the unit offers enhanced accuracy and stability in temperature management.
Equipped with a clear LED display showing 4 digits for both the process value and the set value, the device allows easy and precise monitoring. It operates on a supply voltage between 100 and 240 V AC at 50/60 Hz, suitable for various industrial power setups.
The compact panel mount design measuring 48 mm x 96 mm x 86.5 mm makes it convenient to install in control panels. It supports programmable heating, cooling, and alarm functions, increasing its flexibility for different process requirements.
With a maximum current capacity of 5 A and a maximum operating temperature of 50°C, this controller withstands typical industrial conditions. Its IP20 and IP65 ratings enhance its resistance against dust and water ingress, suitable for harsh environments.
Certified to CE standards and manufactured in Turkey, the RS PRO 222-8154 temperature controller assures users of compliance with rigorous safety and quality benchmarks. It is ideal for automation, manufacturing, industrial control, and process control applications.
Supports universal sensor input such as thermocouple and RTD. Features auto-tune and self-tune PID control algorithms. 3 inputs and 3 outputs including relay and SSR types. Programmable heating, cooling and alarm functions.
Wide supply voltage range 100 to 240 V AC, 50/60 Hz. LED 4 digit process and set value display. Compact panel mount dimensions 48 x 96 x 86.5 mm. IP20 and IP65 protection ratings. Maximum current 5 A, operating temperature 0 to 50°C.
CE certified and made in Turkey. Explore the RS PRO range for reliable industrial temperature control solutions on EnvMart.
Explore more products in our Temperature Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature is 50°C.
It features 3 inputs and 3 outputs, supporting both relay and SSR output types.
It operates on a supply voltage range of 100 to 240 V AC at 50/60 Hz.
It is equipped with an LED display that shows 4 digits for both the process value (PV) and set value (SV).
It utilizes PID control with auto-tune and self-tune capabilities for accurate temperature regulation.
It has IP20 and IP65 ratings, providing protection against dust and water ingress in industrial environments.
The maximum current rating is 5 A.
It is certified to CE standards, ensuring compliance with safety and quality benchmarks.
