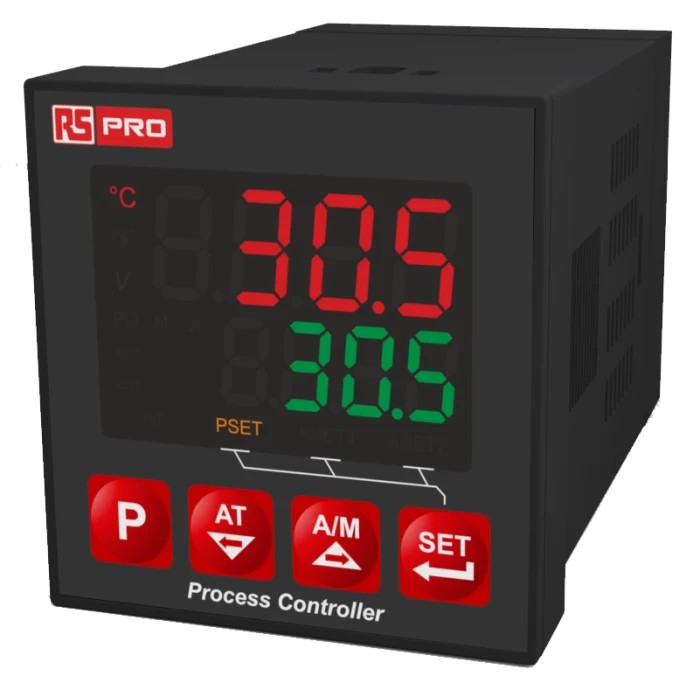

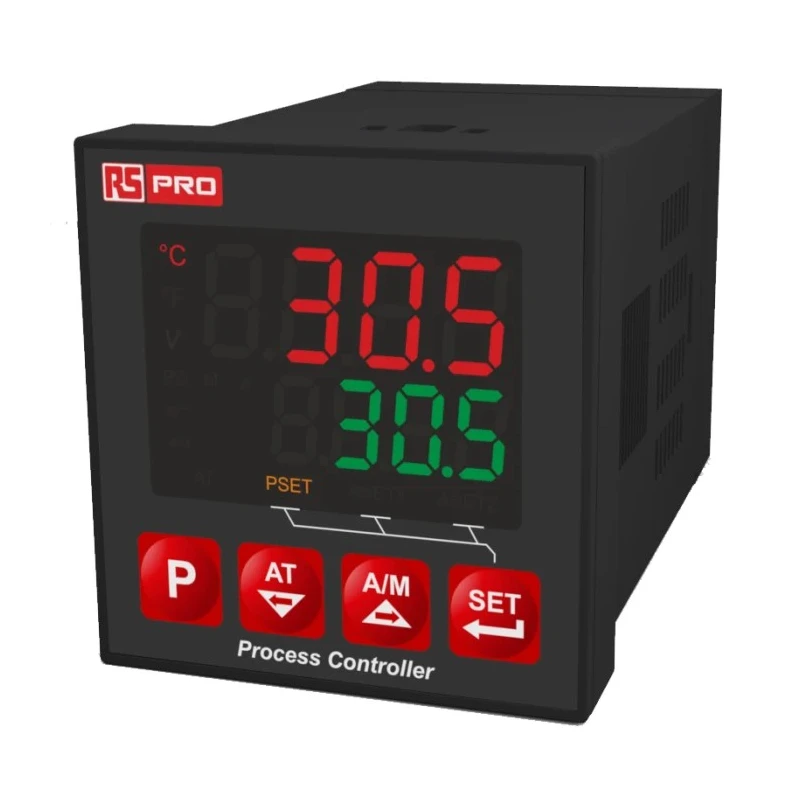

RS PRO Panel Mount PID Temperature Controller 3 Input 3 Output Relay 24V On-Off Control 222-8151
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Colour | Black |
| Operating Temperature | 0 to 50 °C |
| Length | 48mm |
| Model | 222-8151 |
| IP Rating | IP20, IP65 |
| Mounting Type | Recess-mount |
| Gross Weight | 170 g |
| Sensor Type | S, Pt100, T, J, K, R |
| Width | 48mm |
| Mount Type | Panel Mount |
| Number of inputs | 3 |
| Output type | Relay |
| Series | RS PRO |
| Input Type | Thermocouple, RTD |
| Maximum Operating Temperature | 50°C |
| Control Type | On-Off, PID Controller |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 5A |
| Number of outputs | 3 |
| Operating Voltage | 24 V DC/AC or 100 to 240 V |
| Thermostat Type | Bang-bang, P, PI, PD, PID |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 24V |
| Thermocouple (TC) | L(DIN 43710) J, K, R, S, T, B, E, and N (IEC 584.1) (ITS90), C (ITS90) |
| Standard Relay Outputs | 2 pieces 5A@250V at resistive load) |
| Thermo-resistance (RTD) | PT-100 (IEC751) (ITS90) |
| Max. Temperature Reading | 1700 °C |
| Min. Temperature Reading | -200 °C |
| Outputs (thermostats) | 5 A relay |
| No. of relay outputs | 3 |
| Recess Depth | 76 mm |
Key Features
- Supports thermocouple and RTD sensor inputs for versatile measurement.
- Features on-off and PID control modes with manual and automatic selections.
- Equipped with LED display for clear process and setpoint readings.
- Operates over a temperature range of 0 to 50 °C with max 1700 °C reading capability.
- Designed for panel recess mounting with IP65 front protection rating.
- Includes programmable heating, cooling, and alarm functions for flexible use.
- Compact dimensions of 48 mm height, 88 mm length, and 48 mm width.
- Built for industrial applications like textiles, automotive, and machine production.
Product Description
RS PRO 222-8151 is a high-quality panel mount PID temperature controller designed for accurate temperature and process management in industrial environments. It features universal inputs compatible with thermocouples and RTD sensors, enabling flexible temperature measurement setups.
The controller provides three relay outputs capable of handling up to 5 A current, allowing on-off and PID control operations with manual or automatic mode selection. The easy-to-read LED display shows both process values and set values with four digits.
Operating at 24 V DC/AC or 100 to 240 V supply voltages, this device is suitable for use in environments where precise temperature control is critical. It operates reliably within 0 to 50 °C ambient temperature range and supports maximum temperature readings up to 1700 °C.
With front IP65 protection and IP20 for the connection side, the controller is built for rugged industrial conditions. The compact size and recess-mounted installation enable straightforward integration into control panels.
Typical applications include textiles manufacturing, automotive industry process control, and machine production where reliable temperature control enhances product quality and process efficiency.
Supports thermocouple and RTD sensor inputs. On-off and PID control with manual and auto modes. LED display for process and setpoint values. Max operating temperature of 50 °C and process temperature up to 1700 °C. IP65 front protection ensures durability.
Compact recess mount design. Suitable for industrial process control applications.
Explore EnvMart for a full range of industrial Temperature Controllers and automation solutions from RS PRO and other leading brands to optimize your electrical and automation systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum temperature reading capability of this model is 1700 °C.
This unit operates at 24 V DC/AC or 100 to 240 V supply voltages.
The operating temperature range for this controller is from 0 to 50 °C.
This model features three inputs and three relay outputs.
The front of this unit has an IP65 protection rating, while the connection side has an IP20 rating.
It supports on-off and PID control modes, with options for manual and automatic selections.
The relay outputs can handle a maximum current of 5 A.
This temperature controller is designed for recess mounting.
It is suitable for industrial applications such as textiles manufacturing, automotive industry process control, and machine production.
This model is equipped with an LED display for clear process and setpoint readings.
